Overview
The BAS16B5003, produced by Infineon Technologies, is a high-speed switching diode designed for various high-frequency applications. This diode is part of the BAS16 series, known for its ultra-fast switching speeds and high conductance. It is particularly suited for surface mount technology and is available in RoHS-compliant packages, ensuring environmental compliance and reliability in modern electronic designs.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Non-repetitive peak reverse voltage | VRM | 100 | V |
| Repetitive peak reverse voltage / Working peak reverse voltage / DC blocking voltage | VRRM = VRWM = VR | 75 | V |
| Peak forward surge current (tp = 1 s) | IFSM | 1 | A |
| Peak forward surge current (tp = 1 μs) | IFSM | 2 | A |
| Average forward current (Half wave rectification with resistive load and f ≥ 50 Hz) | IF(AV) | 250 | mA |
| Forward current | IF | 350 | mA |
| Power dissipation (On FR-4 board with recommended soldering footprint) | Ptot | 270 | mW |
| Thermal resistance junction to ambient air | RthJA | 460 | K/W |
| Thermal resistance junction to lead (Infinite heat sink) | RthJL | 320 | K/W |
| Junction temperature | Tj | 125 | °C |
| Storage temperature range | Tstg | -65 to +150 | °C |
| Operating temperature range | Top | -55 to +150 | °C |
| Reverse recovery time | trr | 6 ns |
Key Features
- High-Speed Switching: The BAS16B5003 is designed for high-speed switching applications with ultra-fast switching speeds of ≤ 4 ns.
- Electrical Insulation: These diodes are electrically insulated, enhancing their performance in various circuits.
- RoHS Compliance: The diodes are available in Pb-free (RoHS compliant) packages, ensuring environmental sustainability.
- AEC-Q101 Qualified: The BAS16B5003 is qualified according to AEC-Q101 standards, making it suitable for automotive applications.
- Surface Mount Package: Ideally suited for automatic insertion in surface mount technology, facilitating efficient manufacturing processes.
- High Conductance: The diode offers high conductance, which is beneficial for high-frequency and high-speed applications.
Applications
The BAS16B5003 is versatile and can be used in a variety of applications, including:
- High-Speed Switching Circuits: Ideal for circuits requiring fast switching times.
- Automotive Electronics: Qualified according to AEC-Q101, making it suitable for use in automotive systems.
- Consumer Electronics: Used in various consumer electronic devices that require high-speed diodes.
- Industrial Control Systems: Suitable for use in industrial control and automation systems.
Q & A
- What is the non-repetitive peak reverse voltage of the BAS16B5003?
The non-repetitive peak reverse voltage is 100 V. - What is the repetitive peak reverse voltage of the BAS16B5003?
The repetitive peak reverse voltage is 75 V. - What is the peak forward surge current of the BAS16B5003 for a pulse duration of 1 μs?
The peak forward surge current for a pulse duration of 1 μs is 2 A. - Is the BAS16B5003 RoHS compliant?
Yes, the BAS16B5003 is available in Pb-free (RoHS compliant) packages. - What is the junction temperature range of the BAS16B5003?
The junction temperature range is up to 125 °C. - What is the reverse recovery time of the BAS16B5003?
The reverse recovery time is approximately 6 ns. - Is the BAS16B5003 qualified according to AEC-Q101?
Yes, the BAS16B5003 is qualified according to AEC-Q101 standards. - What type of package does the BAS16B5003 use?

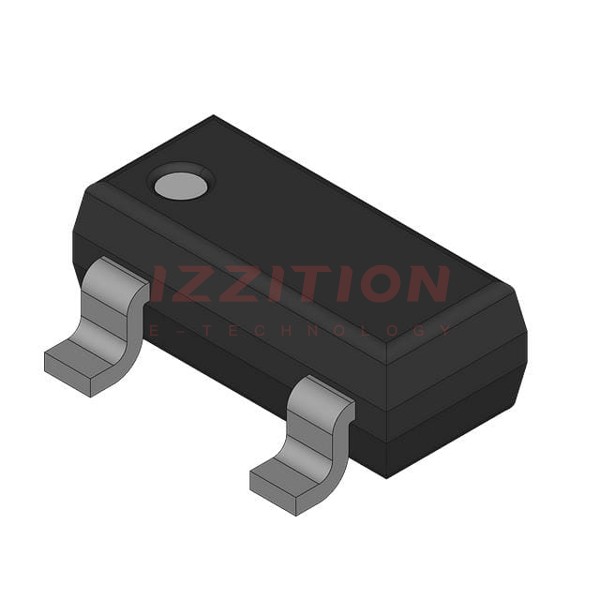

The BAS16B5003 uses a surface mount package, specifically the SOT-23 package. - What is the average forward current rating of the BAS16B5003?
The average forward current rating is 250 mA for half wave rectification with a resistive load and f ≥ 50 Hz. - What is the power dissipation of the BAS16B5003 on an FR-4 board?
The power dissipation on an FR-4 board with the recommended soldering footprint is 270 mW.
