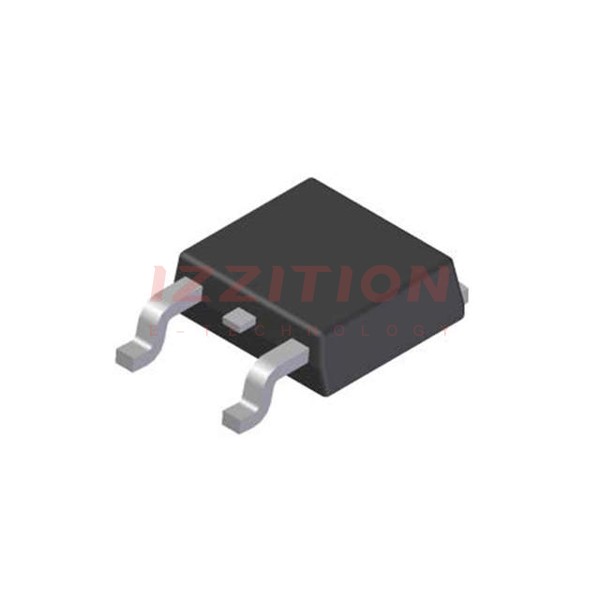

Diodes Incorporated MJD350-13

Manufacturer No:
MJD350-13
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Description:
TRANS PNP 300V 0.5A TO252-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJD350-13 is a high-performance bipolar junction transistor (BJT) manufactured by Diodes Incorporated. This PNP transistor is designed for a variety of applications requiring high reliability and robust performance. It features a proprietary structure that enhances its electrical characteristics, making it suitable for use in demanding environments.

Key Specifications

ParameterValue
Transistor PolarityPNP
Collector-Emitter Voltage (VCEO)300 V
DC Collector Current500 mA
Power Dissipation15 W
Package TypeTO-252 (DPAK), Surface Mount
Junction Temperature150°C
AEC-Q101 QualificationYes

Key Features

  • Ultra-low VCE(sat) performance due to proprietary structure
  • High peak current capability
  • High gain
  • Low saturation voltage
  • AEC-Q101 qualified for automotive applications
  • Designed for operating in avalanche mode

Applications

The MJD350-13 transistor is versatile and can be used in a variety of applications, including:

  • Automotive systems: Due to its AEC-Q101 qualification, it is suitable for use in automotive electronics.
  • Power management: Its high current and power dissipation capabilities make it ideal for power management circuits.
  • Switching and amplification: The transistor's high gain and low saturation voltage make it suitable for switching and amplification applications.
  • Industrial control systems: It can be used in industrial control systems where high reliability and robust performance are required.

Q & A

  1. What is the collector-emitter voltage rating of the MJD350-13 transistor?
    The collector-emitter voltage rating is 300 V.
  2. What is the maximum DC collector current of the MJD350-13?
    The maximum DC collector current is 500 mA.
  3. What is the power dissipation of the MJD350-13 transistor?
    The power dissipation is 15 W.
  4. What package type does the MJD350-13 come in?
    The MJD350-13 comes in a TO-252 (DPAK) surface mount package.
  5. Is the MJD350-13 AEC-Q101 qualified?
    Yes, the MJD350-13 is AEC-Q101 qualified.
  6. What is the junction temperature of the MJD350-13?
    The junction temperature is 150°C.
  7. What are some key features of the MJD350-13 transistor?
    Key features include ultra-low VCE(sat), high peak current, high gain, low saturation voltage, and AEC-Q101 qualification.
  8. Where can the MJD350-13 be used?
    The MJD350-13 can be used in automotive systems, power management, switching and amplification, and industrial control systems.
  9. Why is the MJD350-13 suitable for automotive applications?
    The MJD350-13 is suitable for automotive applications due to its AEC-Q101 qualification.
  10. What makes the MJD350-13 suitable for high-current applications?
    The MJD350-13 is suitable for high-current applications due to its high peak current capability and high power dissipation.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):300 V
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:30 @ 50mA, 10V
Power - Max:15 W
Frequency - Transition:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:TO-252-3
0 Remaining View Similar

In Stock

$0.22
2,002

Please send RFQ , we will respond immediately.

Similar Products

Part Number MJD350-13 MJD340-13
Manufacturer Diodes Incorporated Diodes Incorporated
Product Status Active Active
Transistor Type PNP NPN
Current - Collector (Ic) (Max) 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 300 V 300 V
Vce Saturation (Max) @ Ib, Ic - -
Current - Collector Cutoff (Max) 100µA (ICBO) 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 50mA, 10V 30 @ 50mA, 10V
Power - Max 15 W 15 W
Frequency - Transition - -
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252-3 TO-252-3
