Overview

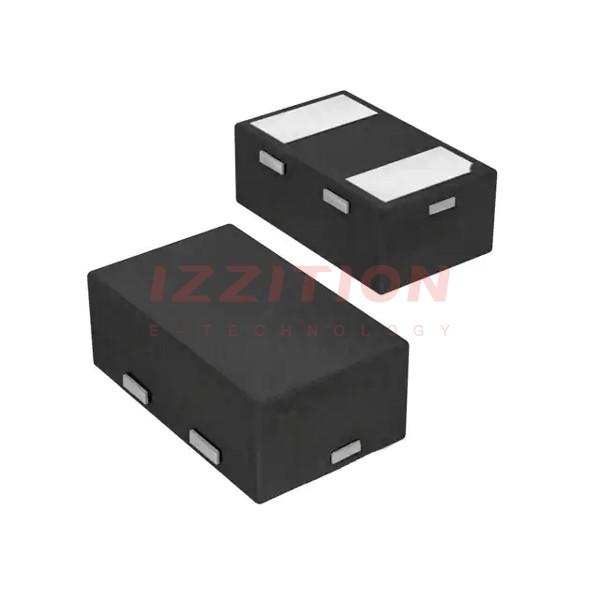

The BAS40LP-7-F is a surface mount Schottky barrier diode produced by Diodes Incorporated. This component is designed to offer ultra-low forward voltage drop and fast switching capabilities, making it ideal for various applications requiring high efficiency and reliability. The BAS40LP-7-F is packaged in an ultra-small leadless surface mount package (X1-DFN1006-2) and is fully RoHS compliant, halogen and antimony free, and manufactured in IATF 16949 certified facilities.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Peak Repetitive Reverse Voltage | VRRM | 40 | V |
| Forward Continuous Current | IF | 200 | mA |
| Repetitive Peak Forward Current | IFRM | 800 | mA |
| Non-Repetitive Peak Forward Surge Current | IFSM | 1,000 | mA |
| Power Dissipation | PD | 250 | mW |
| Typical Thermal Resistance, Junction to Ambient | RθJA | 400 | °C/W |
| Operating Temperature Range | TJ | -55 to +150 | °C |
| Storage Temperature Range | TSTG | -65 to +150 | °C |
| Forward Voltage | VF | 380 - 1,000 | mV |
| Reverse Leakage Current | IR | 20 - 200 | nA |
| Total Capacitance | CT | 2.3 - 5.0 | pF |
| Reverse Recovery Time | tRR | 5.0 | ns |
Key Features
- Low Forward Voltage Drop
- Fast Switching
- Ultra-Small Leadless Surface Mount Package (X1-DFN1006-2)
- PN Junction Guard Ring for Transient and ESD Protection
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free, “Green” Device
- Qualified to JEDEC standards for High Reliability
Applications
The BAS40LP-7-F is ideally suited for various applications, including automotive systems such as illuminated plates, mood lighting, and puddle lighting. It is also suitable for general-purpose switching and rectification in consumer electronics, industrial control systems, and other high-reliability environments.
Q & A
- What is the peak repetitive reverse voltage of the BAS40LP-7-F?
The peak repetitive reverse voltage (VRRM) is 40V. - What is the forward continuous current rating of the BAS40LP-7-F?
The forward continuous current (IF) is 200mA. - What is the typical thermal resistance of the BAS40LP-7-F?
The typical thermal resistance, junction to ambient (RθJA), is 400°C/W. - Is the BAS40LP-7-F RoHS compliant?
Yes, the BAS40LP-7-F is fully RoHS compliant and halogen and antimony free. - What is the operating temperature range of the BAS40LP-7-F?
The operating temperature range (TJ) is -55 to +150°C. - What is the storage temperature range of the BAS40LP-7-F?
The storage temperature range (TSTG) is -65 to +150°C. - What are the key features of the BAS40LP-7-F?
The key features include low forward voltage drop, fast switching, ultra-small leadless surface mount package, and PN junction guard ring for transient and ESD protection. - What are some typical applications for the BAS40LP-7-F?
Typical applications include automotive lighting systems, general-purpose switching, and rectification in consumer electronics and industrial control systems. - Is the BAS40LP-7-F suitable for high-reliability environments?
Yes, it is qualified to JEDEC standards for high reliability and manufactured in IATF 16949 certified facilities. - What is the package type of the BAS40LP-7-F?
The package type is X1-DFN1006-2, an ultra-small leadless surface mount package.
