Overview

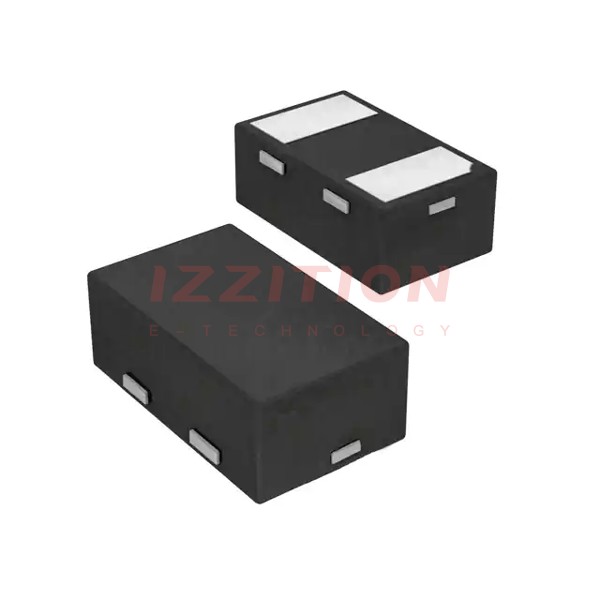

The BAS40LP-7-G is a high-performance, ultra-small surface mount diode produced by Diodes Incorporated. This component is designed to offer low forward voltage drop and fast switching capabilities, making it suitable for a variety of applications requiring efficient and reliable diode performance. The BAS40LP-7-G is fully compliant with EU Directive 2002/95/EC (RoHS) and 2011/65/EU (RoHS 2), ensuring it meets stringent environmental standards.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 40 V |
| Current Rating (I) | 200 mA |
| Forward Voltage Drop (Vf) | Typically 0.85 V at 100 mA |
| Reverse Current (Ir) | Typically 1 μA at 40 V |
| Package Type | X1-DFN1006-2 (Leadless Surface Mount) |
| Operating Temperature Range | -55°C to 150°C |
| ESD Protection | PJunction Guard Ring for Transient and ESD Protection |
| RoHS Status | Compliant |
Key Features
- Low Forward Voltage Drop: Ensures minimal energy loss during operation.
- Fast Switching: Ideal for applications requiring quick response times.
- Ultra-Small Leadless Surface Mount Package: Compact design suitable for space-constrained applications.
- PJunction Guard Ring for Transient and ESD Protection: Enhances reliability by protecting against transient and electrostatic discharge events.
- High Operating Temperature Range: Can operate from -55°C to 150°C, making it versatile for various environments.
Applications
The BAS40LP-7-G diode is suitable for a wide range of applications, including:
- Power Supply Circuits: For rectification and voltage regulation.
- Switching Circuits: Due to its fast switching capabilities.
- ESD Protection Circuits: To protect sensitive components from electrostatic discharge.
- Automotive Electronics: Given its robust operating temperature range and reliability.
- Consumer Electronics: For general-purpose rectification and protection in compact designs.
Q & A
- What is the voltage rating of the BAS40LP-7-G diode?
The voltage rating of the BAS40LP-7-G diode is 40 V. - What is the current rating of the BAS40LP-7-G diode?
The current rating of the BAS40LP-7-G diode is 200 mA. - What is the typical forward voltage drop of the BAS40LP-7-G diode?
The typical forward voltage drop is 0.85 V at 100 mA. - Is the BAS40LP-7-G diode RoHS compliant?
Yes, the BAS40LP-7-G diode is fully RoHS compliant. - What is the operating temperature range of the BAS40LP-7-G diode?
The operating temperature range is from -55°C to 150°C. - What type of package does the BAS40LP-7-G diode use?
The BAS40LP-7-G diode uses an X1-DFN1006-2 (Leadless Surface Mount) package. - Does the BAS40LP-7-G diode have ESD protection?
Yes, it features a PJunction Guard Ring for transient and ESD protection. - What are some common applications for the BAS40LP-7-G diode?
Common applications include power supply circuits, switching circuits, ESD protection circuits, automotive electronics, and consumer electronics. - Why is the BAS40LP-7-G diode suitable for space-constrained applications?
The BAS40LP-7-G diode is suitable due to its ultra-small leadless surface mount package. - What is the reverse current of the BAS40LP-7-G diode at 40 V?
The reverse current is typically 1 μA at 40 V.
