Overview
The AD9625BBPZRL-2.6 from Analog Devices Inc. is a high-performance, 12-bit analog-to-digital converter (ADC) designed for high-speed data acquisition applications. This device is part of the AD9625 family and is optimized for low power consumption and high dynamic range. The AD9625BBPZRL-2.6 operates at a maximum sampling rate of 2.6 GSPS, making it suitable for a variety of demanding applications such as radar, instrumentation, and medical imaging.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Maximum Sampling Rate | 2.6 GSPS |
| Input Range | ±1 V (differential) |
| Power Consumption | Approx. 1.2 W at 2.6 GSPS |
| Interface | JESD204B, LVDS |
| Operating Temperature Range | -40°C to +85°C |

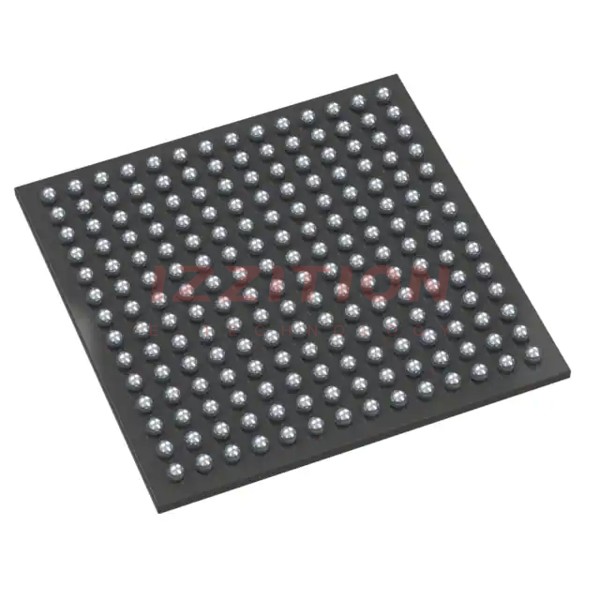

| Package Type | 144-ball BGA |
Key Features
- High-speed sampling up to 2.6 GSPS
- Low power consumption for reduced thermal management
- High dynamic range and signal-to-noise ratio (SNR)
- Support for JESD204B and LVDS interfaces for high-speed data transfer
- On-chip dithering and offset correction for improved performance
- Flexible clocking options including internal and external clock sources
Applications
- Radar and electronic warfare systems
- Medical imaging and diagnostic equipment
- High-speed data acquisition systems
- Instrumentation and test equipment
- Aerospace and defense applications
Q & A
- What is the maximum sampling rate of the AD9625BBPZRL-2.6?
The maximum sampling rate of the AD9625BBPZRL-2.6 is 2.6 GSPS. - What is the resolution of the AD9625BBPZRL-2.6?
The resolution of the AD9625BBPZRL-2.6 is 12 bits. - What are the supported interface types for the AD9625BBPZRL-2.6?
The AD9625BBPZRL-2.6 supports JESD204B and LVDS interfaces. - What is the typical power consumption of the AD9625BBPZRL-2.6 at 2.6 GSPS?
The typical power consumption of the AD9625BBPZRL-2.6 at 2.6 GSPS is approximately 1.2 W. - What is the operating temperature range of the AD9625BBPZRL-2.6?
The operating temperature range of the AD9625BBPZRL-2.6 is -40°C to +85°C. - What package type does the AD9625BBPZRL-2.6 come in?
The AD9625BBPZRL-2.6 comes in a 144-ball BGA package. - Does the AD9625BBPZRL-2.6 support on-chip dithering and offset correction?
Yes, the AD9625BBPZRL-2.6 supports on-chip dithering and offset correction. - What are some common applications for the AD9625BBPZRL-2.6?
Common applications include radar, medical imaging, high-speed data acquisition, instrumentation, and aerospace and defense. - Can the AD9625BBPZRL-2.6 be used in high-speed data acquisition systems?
Yes, the AD9625BBPZRL-2.6 is well-suited for high-speed data acquisition systems due to its high sampling rate and low power consumption. - Where can I find detailed specifications and datasheets for the AD9625BBPZRL-2.6?
Detailed specifications and datasheets can be found on the Analog Devices Inc. official website or through distributors like Digi-Key, Mouser, and Arrow Electronics.
