Overview
The AD9625BBPZRL-2.5 from Analog Devices Inc. is a high-performance, 12-bit analog-to-digital converter (ADC) designed for a wide range of applications requiring high speed and precision. This ADC features a sampling rate of up to 2.5 GSPS, making it suitable for demanding signal processing tasks in fields such as communications, medical imaging, and radar systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 2.5 GSPS |
| Input Range | ±1 V (differential) |
| SNR (Signal-to-Noise Ratio) | Up to 60 dBFS at 2.4 GHz |
| ENOB (Effective Number of Bits) | Up to 10.5 bits at 2.4 GHz |
| Power Consumption | Approximately 1.2 W at 2.5 GSPS |
| Interface | JESD204B, LVDS, CMOS |
| Operating Temperature | -40°C to +85°C |

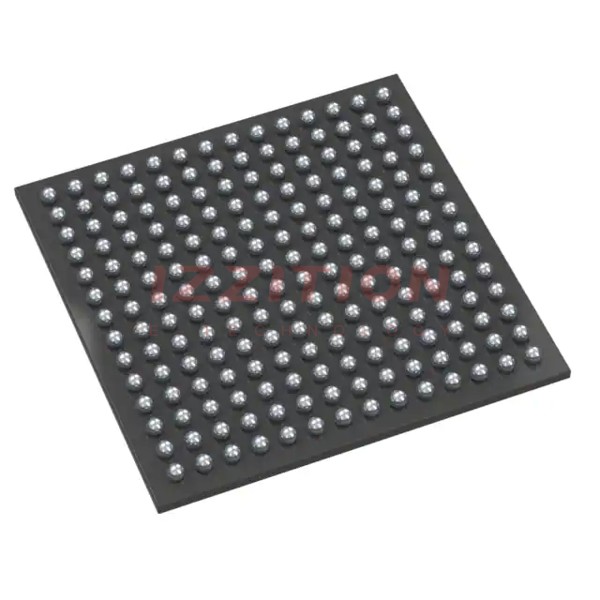

| Package | 144-ball BGA |
Key Features
- High-speed sampling up to 2.5 GSPS
- High dynamic range with SNR up to 60 dBFS at 2.4 GHz
- Low power consumption of approximately 1.2 W at 2.5 GSPS
- Support for JESD204B, LVDS, and CMOS interfaces
- Integrated digital downconverter (DDC) and numerically controlled oscillator (NCO)
- On-chip dithering and randomization for improved noise performance
Applications
- Wireless communication systems (5G, LTE, etc.)
- Medical imaging (MRI, CT scans, etc.)
- Radar and electronic warfare systems
- Test and measurement equipment
- Aerospace and defense systems
Q & A
- What is the maximum sampling rate of the AD9625BBPZRL-2.5?
The maximum sampling rate of the AD9625BBPZRL-2.5 is up to 2.5 GSPS. - What is the resolution of the AD9625BBPZRL-2.5?
The resolution of the AD9625BBPZRL-2.5 is 12 bits. - What are the supported interfaces for the AD9625BBPZRL-2.5?
The AD9625BBPZRL-2.5 supports JESD204B, LVDS, and CMOS interfaces. - What is the typical power consumption of the AD9625BBPZRL-2.5 at 2.5 GSPS?
The typical power consumption of the AD9625BBPZRL-2.5 at 2.5 GSPS is approximately 1.2 W. - What is the operating temperature range of the AD9625BBPZRL-2.5?
The operating temperature range of the AD9625BBPZRL-2.5 is -40°C to +85°C. - What package type is used for the AD9625BBPZRL-2.5?
The AD9625BBPZRL-2.5 is packaged in a 144-ball BGA. - Does the AD9625BBPZRL-2.5 have integrated digital downconversion capabilities?
Yes, the AD9625BBPZRL-2.5 includes an integrated digital downconverter (DDC) and numerically controlled oscillator (NCO). - What are some common applications for the AD9625BBPZRL-2.5?
Common applications include wireless communication systems, medical imaging, radar and electronic warfare systems, test and measurement equipment, and aerospace and defense systems. - How does the AD9625BBPZRL-2.5 improve noise performance?
The AD9625BBPZRL-2.5 improves noise performance through on-chip dithering and randomization. - Where can I find detailed specifications and datasheets for the AD9625BBPZRL-2.5?
Detailed specifications and datasheets can be found on the official Analog Devices website or through distributors like Digi-Key, Mouser, and Arrow Electronics.
