Overview

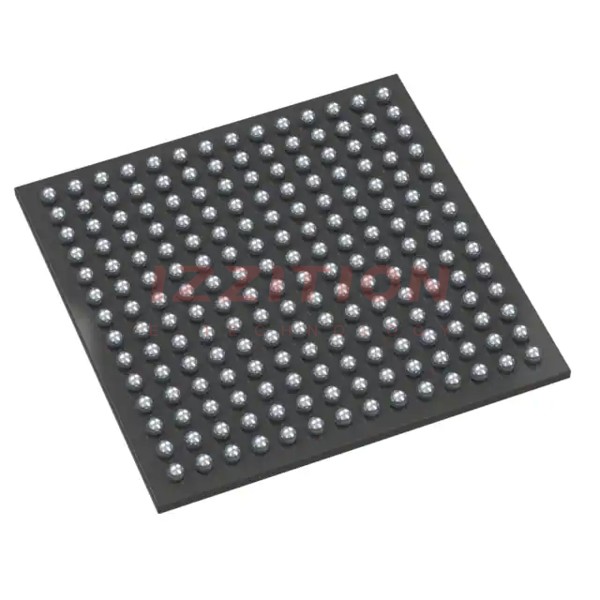

The AD9625BBPRL-2.6 from Analog Devices Inc. is a high-performance, 12-bit, 2.6 GSPS analog-to-digital converter (ADC) designed to meet the demands of high-speed data acquisition systems. This ADC is optimized for applications requiring high dynamic range and low noise, making it suitable for various industries including aerospace, defense, and medical imaging.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sample Rate | Up to 2.6 GSPS |
| Input Range | 1.0 V p-p differential |
| Power Consumption | Approximately 1.35 W at 2.6 GSPS |
| SNR (Signal-to-Noise Ratio) | Typically 55 dBFS at 2.4 GHz input |
| SFDR (Spurious-Free Dynamic Range) | Typically 70 dBc at 2.4 GHz input |
| Interface | JESD204B, LVDS |
| Operating Temperature | -40°C to +85°C |
Key Features
- High-speed sampling up to 2.6 GSPS
- Low noise and high dynamic range
- Support for JESD204B and LVDS interfaces
- Low power consumption
- Wide operating temperature range
- On-chip dithering and offset correction
Applications
- Aerospace and Defense: Radar systems, electronic warfare, and communication systems
- Medical Imaging: MRI, CT scanners, and ultrasound equipment
- Test and Measurement: High-speed data acquisition systems and oscilloscopes
- Wireless Infrastructure: Base stations and 5G communication systems
Q & A
- What is the maximum sample rate of the AD9625BBPRL-2.6?
The maximum sample rate of the AD9625BBPRL-2.6 is up to 2.6 GSPS. - What is the resolution of the AD9625BBPRL-2.6?
The resolution of the AD9625BBPRL-2.6 is 12 bits. - What are the supported interfaces for the AD9625BBPRL-2.6?
The AD9625BBPRL-2.6 supports JESD204B and LVDS interfaces. - What is the typical SNR of the AD9625BBPRL-2.6 at 2.4 GHz input?
The typical SNR of the AD9625BBPRL-2.6 at 2.4 GHz input is 55 dBFS. - What is the power consumption of the AD9625BBPRL-2.6 at 2.6 GSPS?
The power consumption of the AD9625BBPRL-2.6 at 2.6 GSPS is approximately 1.35 W. - What are some common applications of the AD9625BBPRL-2.6?
Common applications include aerospace and defense, medical imaging, test and measurement, and wireless infrastructure. - What is the operating temperature range of the AD9625BBPRL-2.6?
The operating temperature range of the AD9625BBPRL-2.6 is -40°C to +85°C. - Does the AD9625BBPRL-2.6 support on-chip dithering and offset correction?
Yes, the AD9625BBPRL-2.6 supports on-chip dithering and offset correction. - What is the input range of the AD9625BBPRL-2.6?
The input range of the AD9625BBPRL-2.6 is 1.0 V p-p differential. - Where can I find detailed specifications and datasheets for the AD9625BBPRL-2.6?
Detailed specifications and datasheets can be found on the official Analog Devices website or through distributors like Digi-Key, Mouser, and Arrow Electronics.
