Overview
The AD9625BBP-2.6 is a high-performance, 12-bit monolithic sampling analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device operates at conversion rates of up to 2.6 giga samples per second (GSPS), making it ideal for sampling wide bandwidth analog signals up to the second Nyquist zone. The AD9625BBP-2.6 is designed to provide excellent linearity and is suited for a variety of demanding applications, including spectrum analyzers, data acquisition systems, and military electronics such as radar and jamming/antijamming measures.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD9625BBP-2.6 |
| Description | 1-Channel Single ADC Pipelined 2.6Gsps 12-bit JESD204B 196-Pin TEBGA |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2.6 GSPS |
| Input Type | Differential |
| Data Interface | JESD204B |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.26V ~ 1.32V, 2.4V ~ 2.6V |
| Voltage - Supply, Digital | 1.26V ~ 1.32V, 2.4V ~ 2.6V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 196-LFBGA Exposed Pad BGA-196 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Power Dissipation | 4 W |
| SNR - Signal to Noise Ratio | 57.6 dB |
| FPBW - Full Power Bandwidth | 3.2 GHz |
| SFDR - Spurious Free Dynamic Range | 77 dBc |
Key Features
- High-speed sampling rate of up to 2.6 GSPS, making it suitable for wide bandwidth analog signal sampling.
- 12-bit resolution with excellent linearity.
- Differential analog input, clock, and SYSREF± signals.
- JESD204B-based high-speed serialized output, configurable in various lane configurations (one, two, four, six, or eight lanes).
- Pipelined architecture with internal reference type.
- Operates over an industrial temperature range of -40°C to +85°C.
- Low power dissipation of 4 W.
- High signal-to-noise ratio (SNR) of 57.6 dB and spurious free dynamic range (SFDR) of 77 dBc.
- Full power bandwidth of 3.2 GHz.
Applications
- Spectrum analyzers.
- Data acquisition systems.
- Military electronics applications such as radar and jamming/antijamming measures.
- High-speed data acquisition boards and evaluation kits like the AD-FMCADC2-EBZ and AD-FMCADC3-EBZ.
Q & A
- What is the sampling rate of the AD9625BBP-2.6?
The AD9625BBP-2.6 has a sampling rate of up to 2.6 giga samples per second (GSPS).
- What is the resolution of the AD9625BBP-2.6?
The AD9625BBP-2.6 has a 12-bit resolution.
- What type of input does the AD9625BBP-2.6 have?
The AD9625BBP-2.6 has differential analog inputs.
- What is the data interface used by the AD9625BBP-2.6?
The AD9625BBP-2.6 uses the JESD204B high-speed serialized output interface.
- What is the operating temperature range of the AD9625BBP-2.6?
The AD9625BBP-2.6 operates over an industrial temperature range of -40°C to +85°C.
- What is the power dissipation of the AD9625BBP-2.6?
The AD9625BBP-2.6 has a power dissipation of 4 W.
- What are some common applications of the AD9625BBP-2.6?
The AD9625BBP-2.6 is commonly used in spectrum analyzers, data acquisition systems, and military electronics applications such as radar and jamming/antijamming measures.
- What is the package type of the AD9625BBP-2.6?

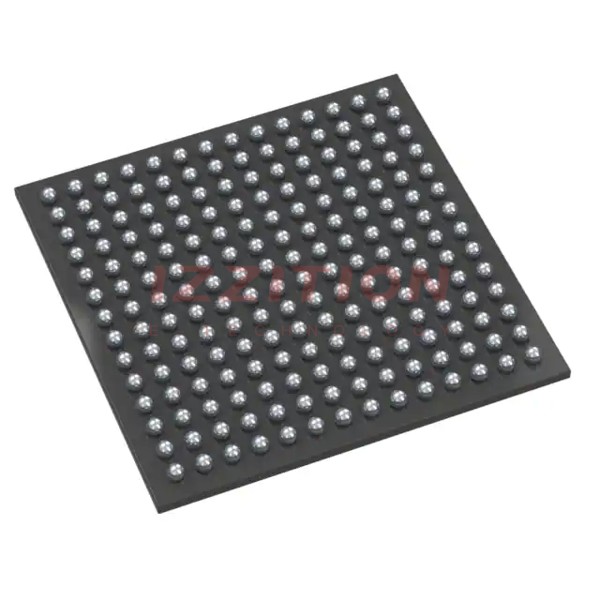

The AD9625BBP-2.6 comes in a 196-LFBGA Exposed Pad BGA-196 package.
- Is the AD9625BBP-2.6 RoHS compliant?
No, the AD9625BBP-2.6 is not RoHS compliant.
- What is the full power bandwidth of the AD9625BBP-2.6?
The full power bandwidth of the AD9625BBP-2.6 is 3.2 GHz.
