Overview

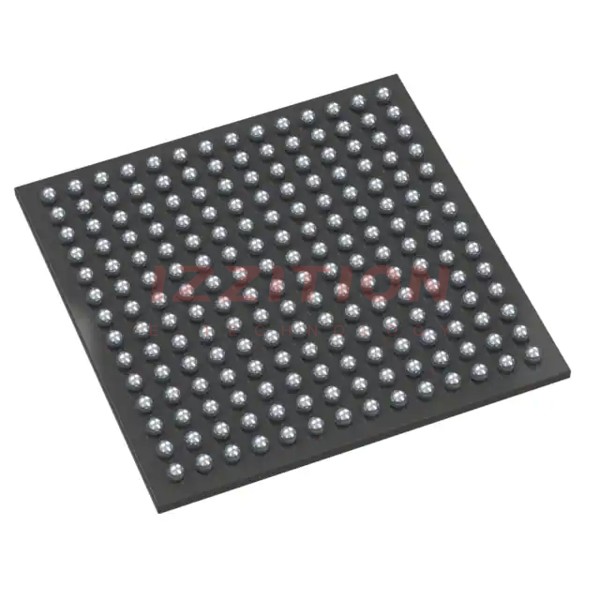

The AD9625BBPRL-2.5 from Analog Devices Inc. is a high-performance, 12-bit analog-to-digital converter (ADC) designed for a wide range of applications requiring high-speed and high-resolution data conversion. This ADC features a sampling rate of up to 2.5 GSPS, making it suitable for demanding applications such as radar, electronic warfare, and high-speed data acquisition systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 2.5 GSPS |
| Input Range | ±1 V (differential) |
| SNR (Signal-to-Noise Ratio) | Typically 55 dBFS at 2.4 GHz input |
| ENOB (Effective Number of Bits) | Typically 10.5 bits at 2.4 GHz input |
| Power Consumption | Approximately 1.35 W at 2.5 GSPS |
| Interface | JESD204B, LVDS, CMOS |
| Operating Temperature | -40°C to +85°C |
| Package | 144-ball BGA |
Key Features
- High-speed sampling up to 2.5 GSPS
- High dynamic range with SNR of typically 55 dBFS at 2.4 GHz input
- Low power consumption of approximately 1.35 W at 2.5 GSPS
- Support for JESD204B, LVDS, and CMOS interfaces
- Wide operating temperature range from -40°C to +85°C
- 144-ball BGA package for compact design
Applications
- Radar and electronic warfare systems
- High-speed data acquisition systems
- Medical imaging and diagnostics
- Aerospace and defense systems
- Test and measurement equipment
Q & A
- What is the maximum sampling rate of the AD9625BBPRL-2.5?
The AD9625BBPRL-2.5 has a maximum sampling rate of up to 2.5 GSPS. - What is the resolution of the AD9625BBPRL-2.5?
The AD9625BBPRL-2.5 is a 12-bit analog-to-digital converter. - What are the supported interfaces for the AD9625BBPRL-2.5?
The AD9625BBPRL-2.5 supports JESD204B, LVDS, and CMOS interfaces. - What is the typical power consumption of the AD9625BBPRL-2.5 at 2.5 GSPS?
The typical power consumption is approximately 1.35 W at 2.5 GSPS. - What is the operating temperature range of the AD9625BBPRL-2.5?
The operating temperature range is from -40°C to +85°C. - In what package is the AD9625BBPRL-2.5 available?
The AD9625BBPRL-2.5 is available in a 144-ball BGA package. - What are some common applications for the AD9625BBPRL-2.5?
Common applications include radar and electronic warfare systems, high-speed data acquisition systems, medical imaging, aerospace and defense systems, and test and measurement equipment. - How does the AD9625BBPRL-2.5 achieve high dynamic range?
The AD9625BBPRL-2.5 achieves high dynamic range with an SNR of typically 55 dBFS at 2.4 GHz input. - Is the AD9625BBPRL-2.5 suitable for medical imaging applications?
Yes, the AD9625BBPRL-2.5 is suitable for medical imaging applications due to its high resolution and dynamic range. - Where can I find detailed specifications and datasheets for the AD9625BBPRL-2.5?
Detailed specifications and datasheets can be found on the official Analog Devices website or through distributors like Digi-Key, Mouser, Arrow Electronics, and Avnet.
