Overview
The AD9625BBPZ-2.6 from Analog Devices Inc. is a high-performance, 12-bit analog-to-digital converter (ADC) designed for a wide range of applications requiring high speed and precision. This ADC operates at a maximum sampling rate of 2.6 GSPS and is optimized for low power consumption and high dynamic range. It is particularly suited for use in communications, radar, and other high-speed data acquisition systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 2.6 GSPS |
| Input Range | ±1 V (differential) |
| Power Consumption | Approx. 1.35 W at 2.6 GSPS |
| Interface | JESD204B, LVDS, CMOS |
| Operating Temperature | -40°C to +85°C |

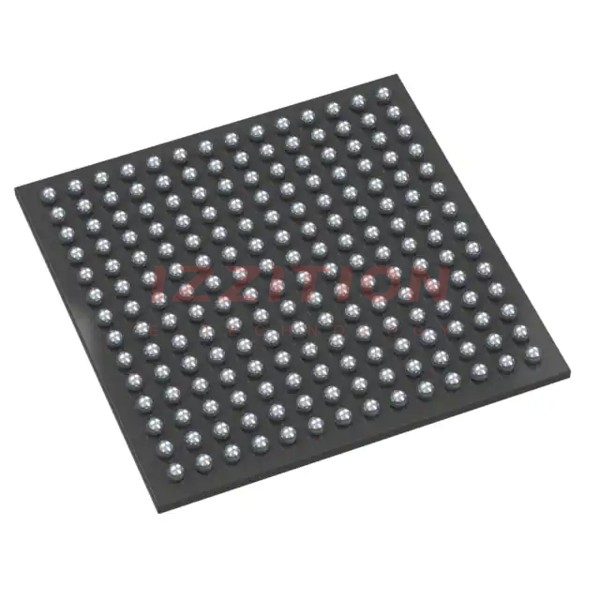

| Package | 144-ball BGA |
Key Features
- High-speed sampling up to 2.6 GSPS
- Low power consumption for efficient operation
- High dynamic range and signal-to-noise ratio (SNR)
- Support for JESD204B, LVDS, and CMOS interfaces
- Integrated digital downconverter (DDC) and numerically controlled oscillator (NCO)
- On-chip dithering and offset correction
Applications
- Wireless communication systems (5G, LTE, etc.)
- Radar and electronic warfare systems
- Medical imaging and diagnostics
- High-speed data acquisition and test equipment
- Aerospace and defense systems
Q & A
- What is the maximum sampling rate of the AD9625BBPZ-2.6?
The maximum sampling rate is up to 2.6 GSPS. - What is the resolution of the AD9625BBPZ-2.6?
The resolution is 12 bits. - What are the supported interfaces for the AD9625BBPZ-2.6?
The supported interfaces include JESD204B, LVDS, and CMOS. - What is the typical power consumption of the AD9625BBPZ-2.6 at 2.6 GSPS?
The typical power consumption is approximately 1.35 W. - What is the operating temperature range of the AD9625BBPZ-2.6?
The operating temperature range is -40°C to +85°C. - What package type is the AD9625BBPZ-2.6 available in?
The AD9625BBPZ-2.6 is available in a 144-ball BGA package. - Does the AD9625BBPZ-2.6 support on-chip digital downconversion?
Yes, it supports integrated digital downconverter (DDC) and numerically controlled oscillator (NCO). - Is the AD9625BBPZ-2.6 suitable for medical imaging applications?
Yes, it is suitable for medical imaging and diagnostics due to its high dynamic range and precision. - Can the AD9625BBPZ-2.6 be used in aerospace and defense systems?
Yes, it can be used in aerospace and defense systems due to its high performance and reliability. - Where can I find detailed specifications and datasheets for the AD9625BBPZ-2.6?
Detailed specifications and datasheets can be found on the official Analog Devices website or through distributors like Digi-Key, Mouser, and Avnet.
