Overview

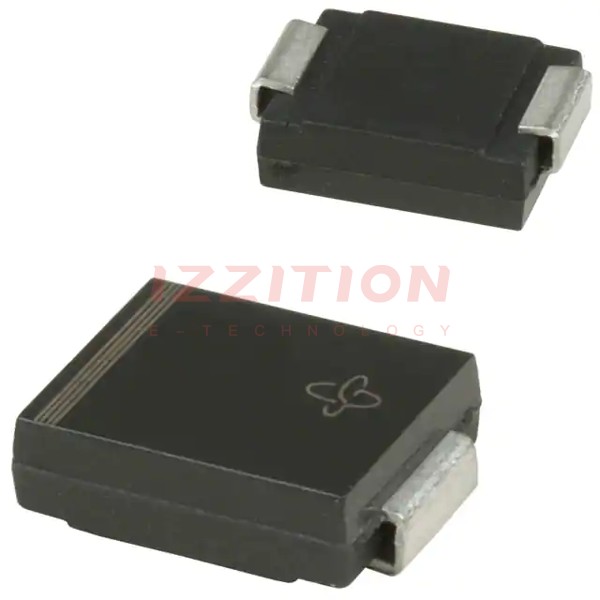

The MBRS360TR is a surface-mount Schottky rectifier produced by Vishay General Semiconductor - Diodes Division. This component is designed for applications that require low forward drop and compact footprints on PCBs. It is part of Vishay's extensive range of diodes and rectifiers, known for their high performance and reliability in various markets including automotive, industrial, computing, and consumer electronics.
Key Specifications
| Attribute Name | Attribute Value |
|---|---|
| Category | Rectifiers - Single Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 3 A |
| Voltage - Forward (Vf) (Max) @ If | 740 mV @ 3 A |
| Speed | Fast Recovery <= 500 ns, > 200 mA (Io) |
| Current - Reverse Leakage @ Vr | 150 µA @ 60 V |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Operating Temperature - Junction | -65°C ~ 175°C |
Key Features
- Low Forward Drop: The MBRS360TR offers a low forward voltage drop of 740 mV at 3 A, making it efficient for power rectification.
- Fast Recovery Time: With a recovery time of less than 500 ns, this diode is suitable for high-frequency applications.
- Compact Package: The DO-214AB (SMC) package is designed for space-saving on PCBs.
- High Operating Temperature Range: The diode can operate within a junction temperature range of -65°C to 175°C.
- Low Reverse Leakage Current: A reverse leakage current of 150 µA at 60 V ensures minimal power loss during reverse bias conditions.
Applications
- Automotive Systems: Suitable for various automotive applications due to its robust performance and temperature range.
- Industrial Power Supplies: Used in power supply units and other industrial equipment requiring efficient rectification.
- Consumer Electronics: Ideal for use in consumer electronics where compact size and low power loss are critical.
- Computing and Networking: Applied in computing and networking devices for efficient power management.
Q & A
- What is the maximum DC reverse voltage of the MBRS360TR?
The maximum DC reverse voltage is 60 V. - What is the average rectified current rating of the MBRS360TR?
The average rectified current rating is 3 A. - What is the forward voltage drop at 3 A for the MBRS360TR?
The forward voltage drop at 3 A is 740 mV. - What is the recovery time of the MBRS360TR?
The recovery time is less than 500 ns. - What is the package type of the MBRS360TR?
The package type is DO-214AB (SMC). - What is the operating temperature range of the MBRS360TR?
The operating temperature range is -65°C to 175°C. - What is the reverse leakage current at 60 V for the MBRS360TR?
The reverse leakage current at 60 V is 150 µA. - Is the MBRS360TR RoHS compliant?
Yes, the MBRS360TR is RoHS compliant. - What are some typical applications of the MBRS360TR?
Typical applications include automotive systems, industrial power supplies, consumer electronics, and computing and networking devices. - What is the mounting type of the MBRS360TR?
The mounting type is surface mount.
