Overview

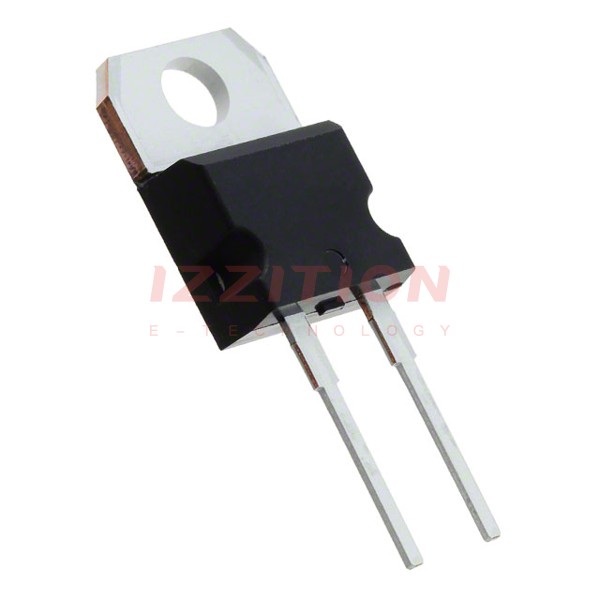

The STTA1206D is a high-voltage, ultra-fast recovery diode manufactured by STMicroelectronics. It is part of the TURBOSWITCH family, known for its high efficiency and low power loss. This diode is designed to handle high junction temperatures and features a soft recovery behavior, making it suitable for various high-performance applications.
Key Specifications
| Parameter | Value |
|---|---|
| Package | TO-220AC, TO-220AC Insulated, DPAK |
| Voltage Rating (Vdrm) | 1200 V |
| Current Rating (If(AV)) | 20 A |
| Junction Temperature (Tj) | -40°C to 175°C |
| Reverse Recovery Time (trr) | Ultra-fast |
| Reverse Recovery Charge (Qrr) | Low |
| Conduction Type | Majority carrier conduction |
Key Features
- Ultra-fast recovery time with soft recovery behavior
- High junction temperature capability
- Low power loss and high efficiency
- Metal silicon junction
- Guardring for overvoltage protection
- Available in TO-220AC, TO-220AC Insulated, and DPAK packages
Applications
The STTA1206D is suitable for a variety of high-performance applications, including:
- Switch-mode power supplies
- High-frequency converters
- Pulse width modulation (PWM) circuits
- High-voltage rectification
- Industrial power systems
Q & A
- What is the voltage rating of the STTA1206D?
The voltage rating of the STTA1206D is 1200 V. - What is the current rating of the STTA1206D?
The current rating of the STTA1206D is 20 A. - What is the junction temperature range of the STTA1206D?
The junction temperature range of the STTA1206D is -40°C to 175°C. - What type of recovery behavior does the STTA1206D exhibit?
The STTA1206D exhibits ultra-fast recovery with soft recovery behavior. - What type of conduction does the STTA1206D use?
The STTA1206D uses majority carrier conduction. - What are the available packages for the STTA1206D?
The STTA1206D is available in TO-220AC, TO-220AC Insulated, and DPAK packages. - What is the primary application of the STTA1206D?
The primary application of the STTA1206D includes switch-mode power supplies, high-frequency converters, and high-voltage rectification. - Does the STTA1206D have overvoltage protection?
Yes, the STTA1206D features a guardring for overvoltage protection. - What are the key benefits of using the STTA1206D?
The key benefits include low power loss, high efficiency, and high junction temperature capability. - Where can I find detailed specifications for the STTA1206D?
Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other electronic component distributors like Mouser and Digi-Key.
