STLD128DNT4
  • Share:

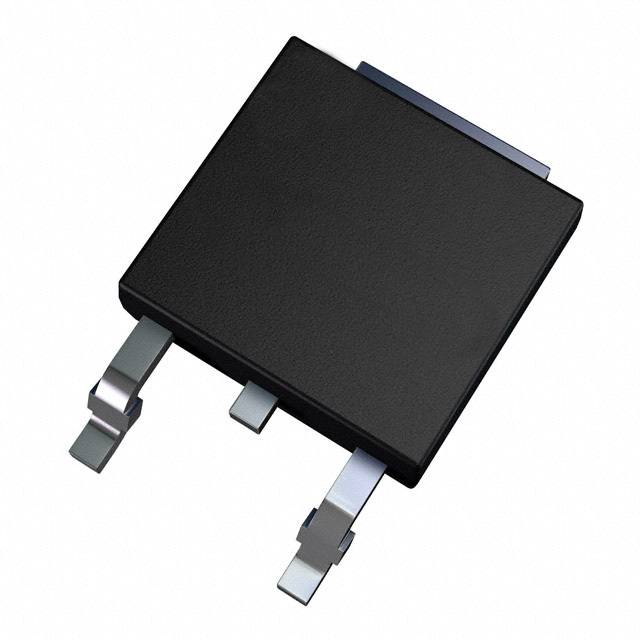

STMicroelectronics STLD128DNT4

Manufacturer No:
STLD128DNT4
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
TRANS NPN 400V 4A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STLD128DNT4 is a bipolar junction transistor (BJT) manufactured by STMicroelectronics. This device is designed using high voltage multi epitaxial planar technology, which enhances its switching speeds and medium voltage capability. It features a cellular emitter structure with planar edge termination, contributing to its high performance in various applications.

Key Specifications

ParameterValue
ManufacturerSTMicroelectronics
Part NumberSTLD128DNT4
PackageDPAK
Voltage Rating400V
Power Dissipation20W
Collector Current8A @ 2A, 5V; 4A
Transistor TypeNPN Bipolar Junction Transistor (BJT)
RoHS ComplianceYes

Key Features

  • High voltage multi epitaxial planar technology for high switching speeds and medium voltage capability.
  • Cellular emitter structure with planar edge termination to enhance switching speeds and maintain wide RBSOA (Reverse Bias Safe Operating Area).
  • High power dissipation of 20W.
  • Collector current of 8A @ 2A, 5V and 4A.
  • RoHS compliant.

Applications

The STLD128DNT4 is designed for various applications, including lighting systems and low-cost switch-mode power supplies. Its high switching speeds and medium voltage capability make it suitable for use in power management and control circuits.

Q & A

  1. What is the voltage rating of the STLD128DNT4? The voltage rating of the STLD128DNT4 is 400V.
  2. What is the power dissipation of the STLD128DNT4? The power dissipation of the STLD128DNT4 is 20W.
  3. What type of transistor is the STLD128DNT4? The STLD128DNT4 is an NPN bipolar junction transistor (BJT).
  4. What is the package type of the STLD128DNT4? The package type of the STLD128DNT4 is DPAK.
  5. Is the STLD128DNT4 RoHS compliant? Yes, the STLD128DNT4 is RoHS compliant.
  6. What are the typical applications of the STLD128DNT4? The STLD128DNT4 is typically used in lighting applications and low-cost switch-mode power supplies.
  7. What technology is used in the manufacturing of the STLD128DNT4? The STLD128DNT4 is manufactured using high voltage multi epitaxial planar technology.
  8. What is the collector current rating of the STLD128DNT4? The collector current rating of the STLD128DNT4 is 8A @ 2A, 5V and 4A.
  9. What is the significance of the cellular emitter structure in the STLD128DNT4? The cellular emitter structure with planar edge termination enhances the switching speeds and maintains a wide RBSOA.
  10. Where can I purchase the STLD128DNT4? The STLD128DNT4 can be purchased from various electronic component distributors such as STMicroelectronics' online store, Mouser Electronics, and other authorized suppliers.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:1V @ 400mA, 2A
Current - Collector Cutoff (Max):250µA
DC Current Gain (hFE) (Min) @ Ic, Vce:8 @ 2A, 5V
Power - Max:20 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:DPAK
0 Remaining View Similar

In Stock

$0.91
778

Please send RFQ , we will respond immediately.
