STB13007DT4
  • Share:

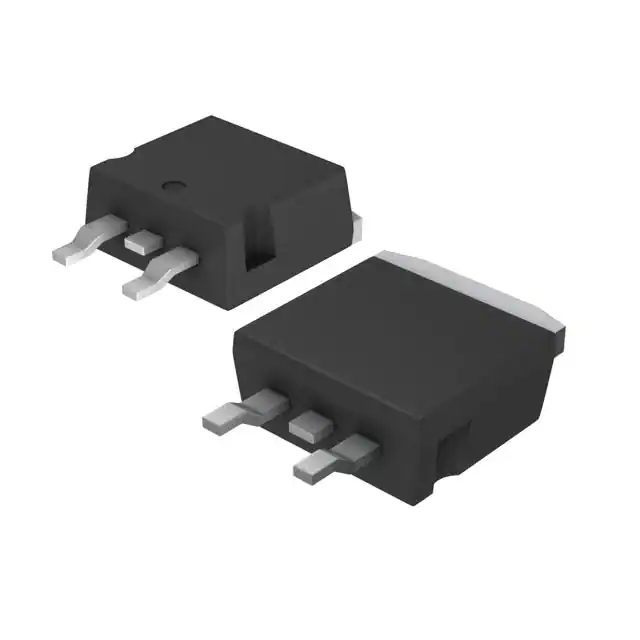

STMicroelectronics STB13007DT4

Manufacturer No:
STB13007DT4
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
TRANS NPN 400V 8A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB13007DT4 is a high-voltage, fast-switching NPN power transistor manufactured by STMicroelectronics. This device is produced using high-voltage Multi-Epitaxial Planar technology, which enables high switching speeds and medium voltage capability. It is designed for applications requiring robust performance and reliability in high-voltage environments.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Emitter Voltage (Vce)400 V
Collector Current (Ic)8 A
Power Dissipation (Pd)80 W
Package TypeSurface Mount D2PAK

Key Features

  • High switching speeds due to Multi-Epitaxial Planar technology.
  • Medium voltage capability.
  • High collector current of 8 A.
  • High power dissipation of 80 W.
  • Surface Mount D2PAK package for easy integration.

Applications

The STB13007DT4 is suitable for various high-voltage applications, including but not limited to:

  • Power supplies and switching regulators.
  • Motor control and drive systems.
  • High-voltage industrial equipment.
  • Automotive systems requiring high reliability and performance.

Q & A

  1. What is the collector-emitter voltage (Vce) of the STB13007DT4? The collector-emitter voltage (Vce) is 400 V.
  2. What is the maximum collector current (Ic) of the STB13007DT4? The maximum collector current (Ic) is 8 A.
  3. What is the power dissipation (Pd) of the STB13007DT4? The power dissipation (Pd) is 80 W.
  4. What package type does the STB13007DT4 use? The STB13007DT4 uses a Surface Mount D2PAK package.
  5. What technology is used to manufacture the STB13007DT4? The STB13007DT4 is manufactured using high-voltage Multi-Epitaxial Planar technology.
  6. What are some typical applications of the STB13007DT4? Typical applications include power supplies, motor control systems, high-voltage industrial equipment, and automotive systems.
  7. Who is the manufacturer of the STB13007DT4? The STB13007DT4 is manufactured by STMicroelectronics.
  8. What are the key features of the STB13007DT4? Key features include high switching speeds, medium voltage capability, high collector current, and high power dissipation.
  9. Is the STB13007DT4 suitable for high-voltage environments? Yes, the STB13007DT4 is designed for high-voltage environments.
  10. Where can I find detailed specifications for the STB13007DT4? Detailed specifications can be found on the official STMicroelectronics website, Digi-Key, and other electronic component suppliers.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:3V @ 1A, 5A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:8 @ 5A, 5V
Power - Max:80 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D²PAK
0 Remaining View Similar

In Stock

$1.28
15

Please send RFQ , we will respond immediately.
