Overview

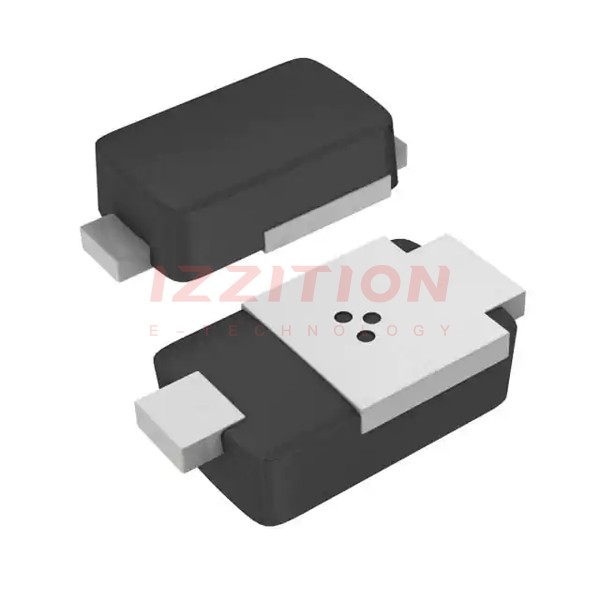

The SMM4F5.0A-TR is a Transient Voltage Suppressor (TVS) diode manufactured by STMicroelectronics. This component is designed to protect electronic circuits from voltage spikes and transient events. Utilizing planar technology, it ensures high reliability and stability, making it suitable for high-end circuits that require low leakage current and high junction temperature tolerance.
Key Specifications
| Parameter | Value |
|---|---|
| Breakdown Voltage | 6.46 V |
| Package/Case | DO-222AA-2 |
| Peak Pulse Current (Ipp) | 43.5 A (8/20µs) |
| Peak Pulse Power Dissipation (Pppm) | 400 W |
| Clamp Voltage | 13.4 V |
Key Features
- Planar technology for high reliability and stability
- Low leakage current
- High junction temperature tolerance
- High peak pulse current and power dissipation capabilities
- Surface mount package (DO-222AA-2) for easy integration into circuits
Applications
The SMM4F5.0A-TR TVS diode is ideal for protecting electronic circuits in various applications, including:
- High-speed data transmission lines
- Sensitive electronic equipment
- Automotive systems
- Industrial control systems
- Consumer electronics
Q & A
- What is the primary function of the SMM4F5.0A-TR? The primary function is to protect electronic circuits from transient voltage spikes.
- What technology does the SMM4F5.0A-TR use? It uses planar technology.
- What is the breakdown voltage of the SMM4F5.0A-TR? The breakdown voltage is 6.46 V.
- What is the peak pulse current (Ipp) of the SMM4F5.0A-TR? The peak pulse current is 43.5 A (8/20µs).
- What is the package type of the SMM4F5.0A-TR? The package type is DO-222AA-2.
- What are some typical applications for the SMM4F5.0A-TR? Typical applications include high-speed data transmission lines, sensitive electronic equipment, automotive systems, industrial control systems, and consumer electronics.
- What is the peak pulse power dissipation (Pppm) of the SMM4F5.0A-TR? The peak pulse power dissipation is 400 W.
- Why is the SMM4F5.0A-TR suitable for high-end circuits? It is suitable due to its low leakage current and high junction temperature tolerance.
- What is the clamp voltage of the SMM4F5.0A-TR? The clamp voltage is 13.4 V.
- Where can I purchase the SMM4F5.0A-TR? You can purchase it from distributors like Digi-Key, Mouser, and the STMicroelectronics eStore.
