Overview
The ESDALC6V1-1M2 is a unidirectional single line TVS diode designed to protect data lines or other I/O ports against ESD transients. This device is ideal for applications where both reduced line capacitance and board space saving are required. It is part of STMicroelectronics' Transil series, known for high ESD robustness and suitability for high-density boards.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Breakdown Voltage (VBR) | 6.1 | V |
| ESD Protection | > 30 kV (IEC 61000-4-2 contact discharge) | kV |
| Diode Capacitance | 22 pF @ 0 V | pF |
| Leakage Current | < 100 nA @ 3 V | nA |

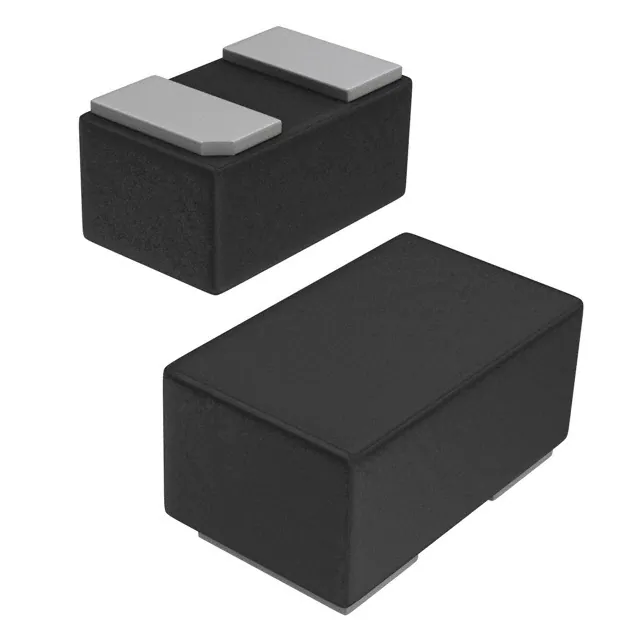

| Package | SOD-882 | - |
| PCB Area | 0.6 mm2 | mm2 |
| Operating Temperature Range | -40 to +125 °C | °C |
| RoHS Compliance | Ecopack2 | - |
Key Features
- Single line low capacitance Transil diode
- Unidirectional ESD protection
- High ESD robustness: > 30 kV (IEC 61000-4-2 contact discharge)
- Low diode capacitance: 22 pF @ 0 V
- Low leakage current: < 100 nA @ 3 V
- Very small PCB area: 0.6 mm2
- RoHS compliant
- Suitable for high-density boards
- Complies with IEC 61000-4-2 level 4 and MIL STD 883G - Method 3015-7: class 3B
Applications
The ESDALC6V1-1M2 is suitable for various applications where transient overvoltage protection in ESD-sensitive equipment is required. These include:
- Personal electronics
- Portable multimedia players and accessories
- Notebooks
- Digital cameras and camcorders
- Communication systems
- Cellular phone handsets and accessories
Q & A
- What is the primary function of the ESDALC6V1-1M2?
The primary function of the ESDALC6V1-1M2 is to protect data lines or other I/O ports against ESD transients.
- What is the breakdown voltage of the ESDALC6V1-1M2?
The breakdown voltage (VBR) of the ESDALC6V1-1M2 is 6.1 V minimum.
- What is the ESD protection level of the ESDALC6V1-1M2?
The ESDALC6V1-1M2 provides ESD protection greater than 30 kV (IEC 61000-4-2 contact discharge).
- What is the typical capacitance of the ESDALC6V1-1M2?
The typical capacitance of the ESDALC6V1-1M2 is 22 pF at 0 V.
- What is the leakage current of the ESDALC6V1-1M2?
The leakage current of the ESDALC6V1-1M2 is less than 100 nA at 3 V.
- What package type is used for the ESDALC6V1-1M2?
The ESDALC6V1-1M2 is packaged in a SOD-882 package.
- Is the ESDALC6V1-1M2 RoHS compliant?
Yes, the ESDALC6V1-1M2 is RoHS compliant and comes in an Ecopack2 package.
- What are the operating temperature ranges for the ESDALC6V1-1M2?
The operating temperature range for the ESDALC6V1-1M2 is -40 to +125 °C.
- What standards does the ESDALC6V1-1M2 comply with?
The ESDALC6V1-1M2 complies with IEC 61000-4-2 level 4 and MIL STD 883G - Method 3015-7: class 3B.
- What types of applications is the ESDALC6V1-1M2 suitable for?
The ESDALC6V1-1M2 is suitable for applications such as personal electronics, portable multimedia players, notebooks, digital cameras, and communication systems.
