Overview

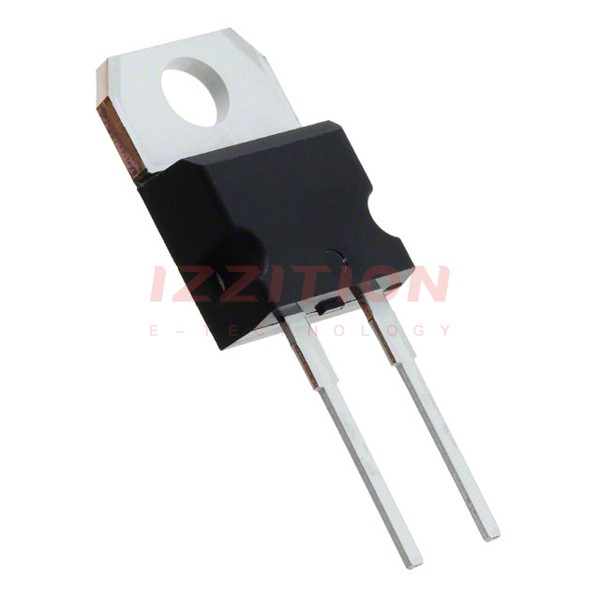

The BYT12P-1000 is a fast recovery silicon power rectifier produced by STMicroelectronics. Although this component is currently obsolete and no longer manufactured, it was designed to meet high-performance requirements in various power rectification applications. It features high junction temperature capability and ultra-fast recovery characteristics, making it suitable for demanding electrical systems.
Key Specifications
| Parameter | Value |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Current - Average Rectified (Io) | 12A |
| Voltage - Forward (Vf) | 1.3V (typical at 12A) |
| Reverse Recovery Time (trr) | Ultra-fast mode with soft recovery behavior |
Key Features
- High junction temperature capability
- Ultra-fast recovery mode with soft recovery behavior
- High reverse voltage rating of 1000V
- High average rectified current of 12A
- Low forward voltage drop of 1.3V (typical at 12A)
Applications
The BYT12P-1000 is designed for applications requiring high-performance power rectification, such as:
- Power supplies and converters
- Motor control and drive systems
- High-frequency switching applications
- Industrial and automotive systems requiring robust rectification
Q & A
- What is the maximum reverse voltage of the BYT12P-1000?
The maximum reverse voltage is 1000V. - What is the average rectified current rating of the BYT12P-1000?
The average rectified current rating is 12A. - Is the BYT12P-1000 still in production?
No, the BYT12P-1000 is obsolete and no longer manufactured. - What are the key features of the BYT12P-1000?
High junction temperature capability, ultra-fast recovery mode with soft recovery behavior, high reverse voltage rating, and low forward voltage drop. - What types of applications is the BYT12P-1000 suitable for?
Power supplies, motor control and drive systems, high-frequency switching applications, and industrial/automotive systems. - What is the typical forward voltage drop of the BYT12P-1000 at 12A?
The typical forward voltage drop is 1.3V at 12A. - Does the BYT12P-1000 have any substitutes available?
Yes, there are available substitutes for the BYT12P-1000, which can be found through distributors like Digi-Key. - What is the reverse recovery time characteristic of the BYT12P-1000?
The BYT12P-1000 features ultra-fast recovery mode with soft recovery behavior. - What is the diode type of the BYT12P-1000?
The diode type is standard. - Where can I find detailed specifications for the BYT12P-1000?
Detailed specifications can be found on distributor websites such as Mouser, Digi-Key, and the official STMicroelectronics documentation.
