BDX53BFP
  • Share:

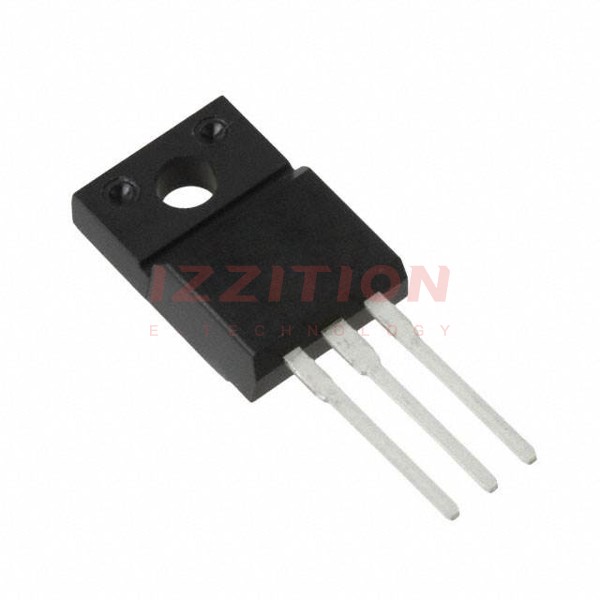

STMicroelectronics BDX53BFP

Manufacturer No:
BDX53BFP
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN DARL 80V 8A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BDX53BFP is a high-performance NPN Darlington transistor manufactured by STMicroelectronics. It is part of the BDX53B and BDX53C series, known for their monolithic Darlington configuration with an integrated antiparallel collector-emitter diode. This transistor is designed to offer good hFE linearity and high fT frequency, making it suitable for a variety of applications requiring high current gain and reliability.

Key Specifications

ParameterValueUnit
Collector-Base Voltage (VCBO)80V
Collector-Emitter Voltage (VCEO)80V
Emitter-Base Voltage (VEBO)5V
Collector Current (IC)8A
Collector Peak Current (ICM)12A
Base Current (IB)0.2mA
Total Dissipation at Tc = 25°C (PTOT)60W
Storage Temperature (Tstg)-65 to 150°C
Max. Operating Junction Temperature (TJ)150°C
DC Current Gain (hFE)750
Collector-Emitter Saturation Voltage (VCE(sat))2V
Base-Emitter Saturation Voltage (VBE(sat))2.5V

Key Features

  • Monolithic Darlington configuration with integrated antiparallel collector-emitter diode.
  • Good hFE linearity and high fT frequency.
  • High collector current and peak current capabilities.
  • Low collector-emitter and base-emitter saturation voltages.
  • ECOPACK® packages with Lead-free second level interconnect.

Applications

  • Audio amplifiers.
  • Linear and switching industrial equipment.

Q & A

  1. What is the collector-base voltage (VCBO) of the BDX53BFP transistor?
    The collector-base voltage (VCBO) is 80 V.
  2. What is the maximum collector current (IC) of the BDX53BFP transistor?
    The maximum collector current (IC) is 8 A.
  3. What is the DC current gain (hFE) of the BDX53BFP transistor?
    The DC current gain (hFE) is 750.
  4. What is the collector-emitter saturation voltage (VCE(sat)) of the BDX53BFP transistor?
    The collector-emitter saturation voltage (VCE(sat)) is 2 V.
  5. What are the typical applications of the BDX53BFP transistor?
    The BDX53BFP is typically used in audio amplifiers and linear and switching industrial equipment.
  6. What is the package type of the BDX53BFP transistor?
    The package type is TO-220.
  7. Is the BDX53BFP transistor still in production?
    No, the BDX53BFP is listed as obsolete and no longer manufactured.
  8. What is the storage temperature range for the BDX53BFP transistor?
    The storage temperature range is -65 to 150°C.
  9. What is the maximum operating junction temperature (TJ) of the BDX53BFP transistor?
    The maximum operating junction temperature (TJ) is 150°C.
  10. Does the BDX53BFP transistor come in an ECOPACK® package?
    Yes, the BDX53BFP is available in ECOPACK® packages with Lead-free second level interconnect.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:2V @ 12mA, 3A
Current - Collector Cutoff (Max):500µA
DC Current Gain (hFE) (Min) @ Ic, Vce:750 @ 3A, 3V
Power - Max:29 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
0 Remaining View Similar

In Stock

-
363

Please send RFQ , we will respond immediately.
