STMicroelectronics 74LX1G04CTR

Manufacturer No:
74LX1G04CTR
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:

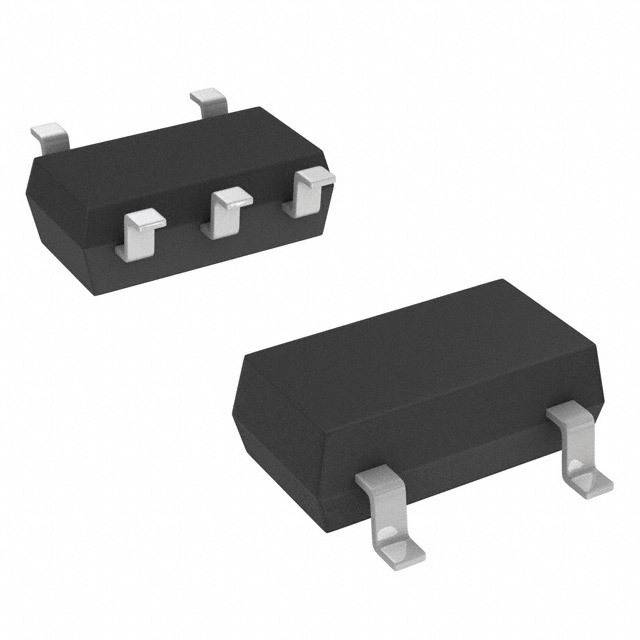

IC INVERTER 1CH 1-INP SOT323-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 74LX1G04CTR is a low-voltage CMOS single inverter manufactured by STMicroelectronics. This component is designed to operate within a voltage range of 1.65 to 5.5 V, making it versatile for various low-power and low-noise applications. Although the 74LX1G04CTR is currently obsolete and no longer manufactured, it remains relevant for existing designs and maintenance of older systems.

Key Specifications

ParameterValue
Voltage Range1.65 to 5.5 V
Input Voltage ToleranceUp to 5 V
TechnologyLow Voltage CMOS
Number of Stages3
Package TypeSC-70, SOT323
Operating Temperature Range-40°C to 125°C

Key Features

  • Low power consumption, suitable for battery-powered devices.
  • Low noise operation, ideal for sensitive electronic circuits.
  • High input voltage tolerance up to 5 V.
  • Compact SC-70 (SOT323) package, enhancing board space efficiency.
  • Wide operating temperature range from -40°C to 125°C.

Applications

The 74LX1G04CTR is suitable for a variety of applications requiring low power and low noise, such as:

  • Battery-powered devices.
  • Portable electronics.
  • Automotive systems.
  • Industrial control systems.
  • Consumer electronics requiring low power consumption.

Q & A

  1. What is the voltage range of the 74LX1G04CTR?
    The 74LX1G04CTR operates within a voltage range of 1.65 to 5.5 V.
  2. Is the 74LX1G04CTR still in production?
    No, the 74LX1G04CTR is obsolete and no longer manufactured.
  3. What is the input voltage tolerance of the 74LX1G04CTR?
    The input voltage tolerance is up to 5 V.
  4. What technology is used in the 74LX1G04CTR?
    The 74LX1G04CTR uses low-voltage CMOS technology.
  5. What is the package type of the 74LX1G04CTR?
    The package type is SC-70 (SOT323).
  6. What is the operating temperature range of the 74LX1G04CTR?
    The operating temperature range is from -40°C to 125°C.
  7. What are some typical applications for the 74LX1G04CTR?
    Typical applications include battery-powered devices, portable electronics, automotive systems, and industrial control systems.
  8. Why is the 74LX1G04CTR suitable for low-power applications?
    The 74LX1G04CTR is suitable due to its low power consumption and low noise operation.
  9. Can the 74LX1G04CTR be used in high-temperature environments?
    Yes, it can operate in temperatures up to 125°C.
  10. Where can I find substitutes for the 74LX1G04CTR?
    Substitutes can be found through distributors like Digi-Key, Mouser, and other electronic component suppliers.

Product Attributes

Logic Type:Inverter
Number of Circuits:1
Number of Inputs:1
Features:-
Voltage - Supply:1.65V ~ 5.5V
Current - Quiescent (Max):10 µA
Current - Output High, Low:32mA, 32mA
Logic Level - Low:-
Logic Level - High:-
Max Propagation Delay @ V, Max CL:4.2ns @ 5V, 50pF
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Supplier Device Package:SOT-323-5
Package / Case:5-TSSOP, SC-70-5, SOT-353
0 Remaining View Similar

In Stock

-
507

Please send RFQ , we will respond immediately.

Same Series
74LX1G04BJR
74LX1G04BJR
IC INVERTER 1CH 1-INP 4FLIPCHIP
74LX1G04STR
74LX1G04STR
IC INVERTER 1CH 1-INP SOT23-5

Similar Products

Part Number 74LX1G04CTR 74LX1G08CTR 74LX1G04STR 74LX1G14CTR 74LX1GU04CTR 74LX1G00CTR 74LX1G02CTR
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Logic Type Inverter AND Gate Inverter Inverter Inverter NAND Gate NOR Gate
Number of Circuits 1 1 1 1 1 1 1
Number of Inputs 1 2 1 1 1 2 2
Features - - - Schmitt Trigger - - -
Voltage - Supply 1.65V ~ 5.5V 1.65V ~ 5.5V 1.65V ~ 5.5V 1.65V ~ 5.5V 1.65V ~ 5.5V 1.65V ~ 5.5V 1.65V ~ 5.5V
Current - Quiescent (Max) 10 µA 10 µA 10 µA 10 µA 10 µA 10 µA 10 µA
Current - Output High, Low 32mA, 32mA 32mA, 32mA 32mA, 32mA 32mA, 32mA 32mA, 32mA 32mA, 32mA 32mA, 32mA
Logic Level - Low - - - 0.39V ~ 1.87V - - -
Logic Level - High - - - 1.16V ~ 3.33V - - -
Max Propagation Delay @ V, Max CL 4.2ns @ 5V, 50pF 3.7ns @ 5V, 50pF 4.2ns @ 5V, 50pF 6.2ns @ 5V, 50pF 3ns @ 5V, 50pF 4.5ns @ 5V, 50pF 3.7ns @ 5V, 50pF
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package SOT-323-5 SOT-323-5 SOT-23-5 SOT-323-5 SOT-323-5 SOT-323-5 SOT-323-5
Package / Case 5-TSSOP, SC-70-5, SOT-353 5-TSSOP, SC-70-5, SOT-353 SC-74A, SOT-753 5-TSSOP, SC-70-5, SOT-353 5-TSSOP, SC-70-5, SOT-353 5-TSSOP, SC-70-5, SOT-353 5-TSSOP, SC-70-5, SOT-353
