Overview

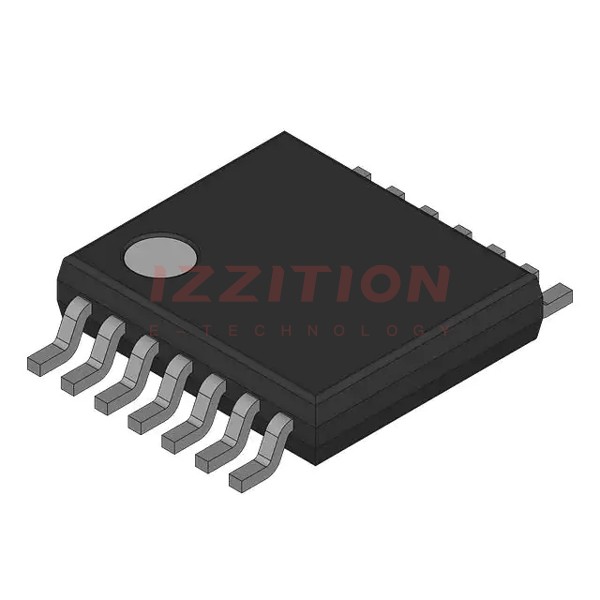

The 74LVC86APW/AU118 is a quad 2-input EXCLUSIVE-OR gate produced by NXP USA Inc. This component is part of the 74LVC86A series, which is designed to operate in a wide range of supply voltages from 1.2 to 3.6 V. It is particularly useful in mixed 3.3 V and 5 V environments due to its ability to interface with both TTL and CMOS logic levels.
The device features Schmitt-trigger action at all inputs, making it tolerant of slower input rise and fall times. Additionally, it offers overvoltage tolerant inputs up to 5.5 V and low power consumption, making it suitable for various digital logic applications.
Key Specifications
Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
---|---|---|---|---|---|---|---|---|---|---|---|---|
74LVC86APW | 1.2 - 3.6 | CMOS/LVTTL | ± 24 | 3.0 | 150 | 4 | low | -40~125 | 141 | 7.9 | 67 | TSSOP14 |
Key Features
- Wide supply voltage range: Operates from 1.2 to 3.6 V.
- CMOS/LVTTL compatible: Inputs can be driven from either 3.3 V or 5 V devices.
- Schmitt-trigger action: Tolerant of slower input rise and fall times.
- Overvoltage tolerant inputs: Up to 5.5 V.
- Low power consumption: CMOS technology ensures low power usage.
- High output drive capability: ± 24 mA.
- High speed operation: Maximum propagation delay of 3.0 ns and maximum frequency of 150 MHz.
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
Applications
- Mixed voltage systems: Ideal for use in mixed 3.3 V and 5 V environments.
- Digital logic circuits: Suitable for various digital logic applications requiring high speed and low power consumption.
- Interface translation: Can be used as translators between different logic levels.
- General-purpose logic: Useful in a wide range of general-purpose digital logic circuits.
Q & A
- What is the supply voltage range of the 74LVC86APW?
The supply voltage range is from 1.2 to 3.6 V.
- What type of logic levels does the 74LVC86APW support?
The device supports CMOS/LVTTL logic levels.
- What is the maximum propagation delay of the 74LVC86APW?
The maximum propagation delay is 3.0 ns.
- What is the maximum frequency of operation for the 74LVC86APW?
The maximum frequency of operation is 150 MHz.
- Does the 74LVC86APW have ESD protection?
Yes, it has ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
- What is the operating temperature range of the 74LVC86APW?
The operating temperature range is from -40 °C to +125 °C.
- What package type is the 74LVC86APW available in?
The device is available in a TSSOP14 (SOT402-1) package.
- Can the 74LVC86APW be used in mixed voltage systems?
Yes, it can be used in mixed 3.3 V and 5 V environments.
- What is the output drive capability of the 74LVC86APW?
The output drive capability is ± 24 mA.
- Does the 74LVC86APW have Schmitt-trigger action at the inputs?
Yes, it has Schmitt-trigger action at all inputs.
