STMicroelectronics 74LX1G14CTR

Manufacturer No:
74LX1G14CTR
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:

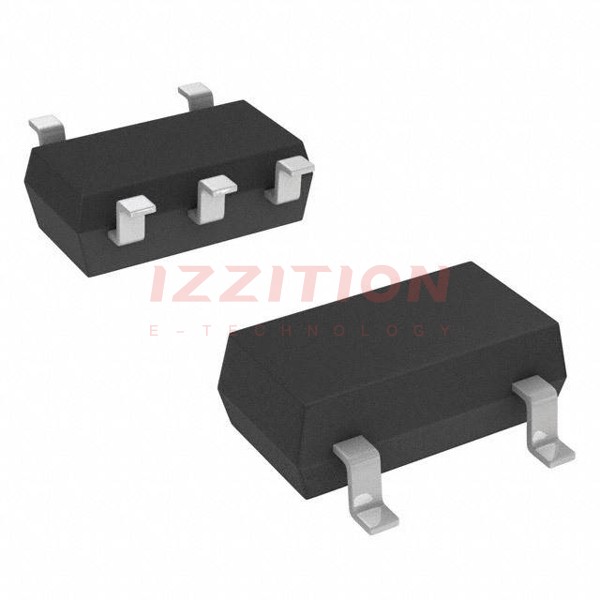

IC INVERTER 1CH 1-INP SOT323-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 74LX1G14CTR is a low-voltage CMOS single Schmitt trigger inverter manufactured by STMicroelectronics. This component is designed to operate at low voltage levels, making it suitable for a variety of modern electronic systems. However, it is important to note that the 74LX1G14CTR is currently obsolete and no longer in production, although substitutes are available.

Key Specifications

ParameterValue
Package TypeSOT323-5L, SOT23-5L
Number of Pins5
Temperature GradeMilitary
Terminal FormGull Wing
Supply Voltage Range1.65V to 3.6V
Input TypeSchmitt Trigger
Output TypeSingle Inverter

Key Features

  • Low voltage operation: Compatible with supply voltages from 1.65V to 3.6V.
  • Schmitt trigger input: Provides hysteresis to improve noise immunity.
  • CMOS technology: Low power consumption and high noise immunity.
  • Small package: Available in SOT323-5L and SOT23-5L packages, suitable for space-constrained designs.

Applications

  • Low-power digital circuits: Ideal for battery-powered devices and energy-efficient systems.
  • Noise-sensitive applications: The Schmitt trigger input helps in reducing the impact of noise on the signal.
  • Portable electronics: Suitable for use in mobile phones, tablets, and other portable electronic devices.
  • Automotive and industrial systems: Can be used in various automotive and industrial applications where low voltage and low power consumption are critical.

Q & A

  1. What is the 74LX1G14CTR? The 74LX1G14CTR is a low-voltage CMOS single Schmitt trigger inverter.
  2. Who manufactures the 74LX1G14CTR? It is manufactured by STMicroelectronics.
  3. What is the supply voltage range for the 74LX1G14CTR? The supply voltage range is from 1.65V to 3.6V.
  4. What type of input does the 74LX1G14CTR have? It has a Schmitt trigger input.
  5. What is the package type of the 74LX1G14CTR? It is available in SOT323-5L and SOT23-5L packages.
  6. Is the 74LX1G14CTR still in production? No, the 74LX1G14CTR is obsolete and no longer in production.
  7. What are some substitutes for the 74LX1G14CTR? Substitutes are available, but specific models should be checked with the manufacturer or distributors.
  8. What are the key features of the 74LX1G14CTR? Key features include low voltage operation, Schmitt trigger input, CMOS technology, and small package size.
  9. What are some common applications of the 74LX1G14CTR? Common applications include low-power digital circuits, noise-sensitive applications, portable electronics, and automotive and industrial systems.
  10. Why is the Schmitt trigger input important? The Schmitt trigger input provides hysteresis, which improves noise immunity.

Product Attributes

Logic Type:Inverter
Number of Circuits:1
Number of Inputs:1
Features:Schmitt Trigger
Voltage - Supply:1.65V ~ 5.5V
Current - Quiescent (Max):10 µA
Current - Output High, Low:32mA, 32mA
Logic Level - Low:0.39V ~ 1.87V
Logic Level - High:1.16V ~ 3.33V
Max Propagation Delay @ V, Max CL:6.2ns @ 5V, 50pF
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Supplier Device Package:SOT-323-5
Package / Case:5-TSSOP, SC-70-5, SOT-353
