MJE350STU-FS
  • Share:

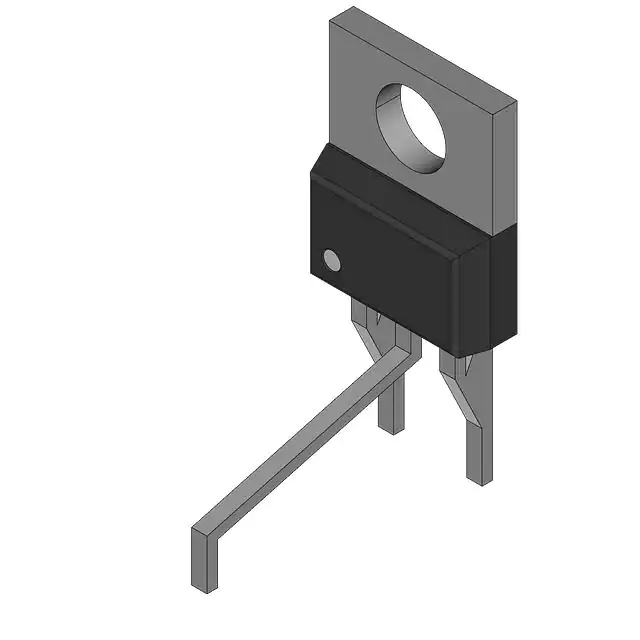

Fairchild Semiconductor MJE350STU-FS

Manufacturer No:
MJE350STU-FS
Manufacturer:
Fairchild Semiconductor
Package:
Bulk
Description:
TRANS PNP 300V 0.5A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJE350STU-FS is a PNP Bipolar Power Transistor designed by Fairchild Semiconductor, now part of ON Semiconductor. This transistor is intended for use in line-operated applications, such as low power, line-operated series pass and switching regulators that require PNP capability. Although the MJE350STU-FS is currently obsolete, it remains relevant for reference and legacy systems.

Key Specifications

Parameter Value Units
Collector-Base Voltage (VCBO) 300 V
Collector-Emitter Voltage (VCEO) 300 V
Emitter-Base Voltage (VEBO) 5 V
Collector Current (IC) 0.5 A
Collector Dissipation (PC) 20 W
Junction Temperature (TJ) 150 °C
Storage Temperature (TSTG) -65 to 150 °C
DC Current Gain (hFE) 30-240
Base-Emitter Saturation Voltage (VBE(sat)) Typically around 1 V V
Collector-Emitter Saturation Voltage (VCE(sat)) Typically around 1 V V

Key Features

  • High Collector-Emitter Breakdown Voltage (VCEO) of 300 V.
  • Excellent DC Current Gain (hFE) ranging from 30 to 240.
  • Pb-Free package available.
  • Suitable for high voltage general purpose applications.
  • Complement to the MJE340 transistor.

Applications

  • Line-operated applications such as low power series pass and switching regulators.
  • LED lighting systems.
  • Portable and wireless devices.
  • Transformer applications.

Q & A

  1. What is the MJE350STU-FS transistor used for?

    The MJE350STU-FS is used in line-operated applications, such as low power series pass and switching regulators that require PNP capability.

  2. What are the key specifications of the MJE350STU-FS transistor?

    Key specifications include a Collector-Base Voltage of 300 V, Collector-Emitter Voltage of 300 V, and a DC Current Gain of 30-240.

  3. Is the MJE350STU-FS transistor still in production?

    No, the MJE350STU-FS transistor is obsolete and not in production.

  4. What are some common applications of the MJE350STU-FS transistor?

    Common applications include LED lighting, portable and wireless devices, and transformer applications.

  5. What is the maximum collector current of the MJE350STU-FS transistor?

    The maximum collector current is 0.5 A.

  6. What is the junction temperature range of the MJE350STU-FS transistor?

    The junction temperature range is up to 150 °C.

  7. Is the MJE350STU-FS transistor Pb-Free?
  8. What is the collector dissipation of the MJE350STU-FS transistor?

    The collector dissipation is 20 W.

  9. What is the storage temperature range for the MJE350STU-FS transistor?

    The storage temperature range is -65 to 150 °C.

  10. Can the MJE350STU-FS transistor be used in life support systems?

    No, the MJE350STU-FS transistor is not authorized for use in life support systems or any FDA Class 3 medical devices.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):300 V
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:30 @ 50mA, 10V
Power - Max:20 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
