BAV21_AY_00001
  • Share:

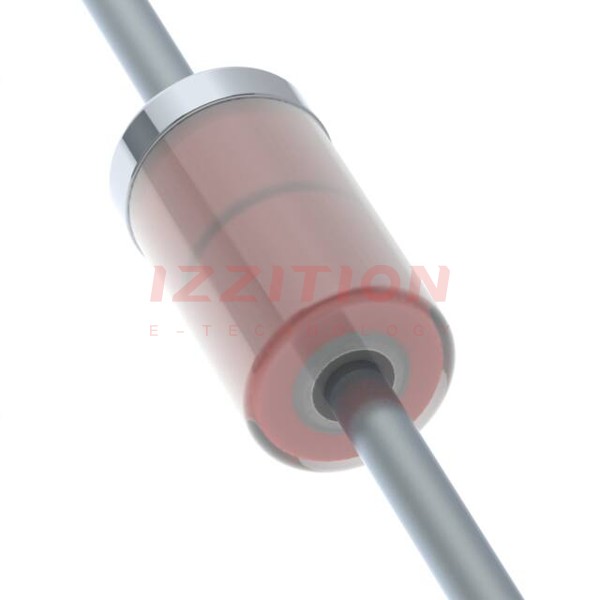

Panjit International Inc. BAV21_AY_00001

Manufacturer No:
BAV21_AY_00001
Manufacturer:
Panjit International Inc.
Package:
Cut Tape (CT)
Description:
SWITCHING DIODES
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BAV21_AY_00001 is a small signal switching diode produced by Panjit International Inc. This diode is part of the BAV21 series, known for its reliability and performance in various electronic applications. The BAV21 series diodes are silicon epitaxial planar diodes, designed for general-purpose use in switching and rectification circuits.

Key Specifications

ParameterValueUnit
Repetitive Peak Reverse Voltage (VRRM)250V
Reverse Voltage (VR)200V
Forward Continuous Current (IF)250mA
Peak Forward Surge Current (IFSM)1A
Forward Voltage (VF) at IF = 100 mA1V
Reverse Current (IR) at VR = 200 V100 nA
Junction Temperature (Tj)175°C
Storage Temperature Range (Tstg)-65 to +175°C
Thermal Resistance Junction to Ambient Air (RthJA)300K/W

Key Features

  • Silicon epitaxial planar diode construction for high reliability and performance.
  • High repetitive peak reverse voltage (VRRM) of 250 V.
  • Forward continuous current (IF) of 250 mA.
  • Low forward voltage drop (VF) of 1 V at 100 mA.
  • Low reverse current (IR) of 100 nA at 200 V.
  • Wide operating temperature range from -65°C to 175°C.

Applications

The BAV21_AY_00001 diode is suitable for a variety of general-purpose applications, including:

  • Switching circuits.
  • Rectification circuits.
  • Clamping and protection circuits.
  • Signal processing and amplification.

Q & A

  1. What is the repetitive peak reverse voltage (VRRM) of the BAV21_AY_00001 diode?
    The VRRM of the BAV21_AY_00001 diode is 250 V.
  2. What is the forward continuous current (IF) of this diode?
    The forward continuous current (IF) is 250 mA.
  3. What is the typical forward voltage drop (VF) at 100 mA?
    The typical forward voltage drop (VF) at 100 mA is 1 V.
  4. What is the maximum junction temperature (Tj) for this diode?
    The maximum junction temperature (Tj) is 175°C.
  5. What is the storage temperature range for the BAV21_AY_00001 diode?
    The storage temperature range is from -65°C to +175°C.
  6. What are the typical applications of the BAV21_AY_00001 diode?
    The diode is typically used in switching circuits, rectification circuits, clamping and protection circuits, and signal processing and amplification.
  7. What is the thermal resistance junction to ambient air (RthJA) for this diode?
    The thermal resistance junction to ambient air (RthJA) is 300 K/W.
  8. What is the peak forward surge current (IFSM) for the BAV21_AY_00001 diode?
    The peak forward surge current (IFSM) is 1 A.
  9. How is the BAV21_AY_00001 diode packaged?
    The diode is available in through-hole DO-35 packaging.
  10. Who is the manufacturer of the BAV21_AY_00001 diode?
    The manufacturer is Panjit International Inc.

Product Attributes

Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):200 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:1 V @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):50 ns
Current - Reverse Leakage @ Vr:100 nA @ 200 V
Capacitance @ Vr, F:3pF @ 0V, 1MHz
Mounting Type:Through Hole
Package / Case:DO-204AH, DO-35, Axial
Supplier Device Package:DO-35
Operating Temperature - Junction:-55°C ~ 150°C
0 Remaining View Similar

In Stock

$0.20
1,046

Please send RFQ , we will respond immediately.
