Overview

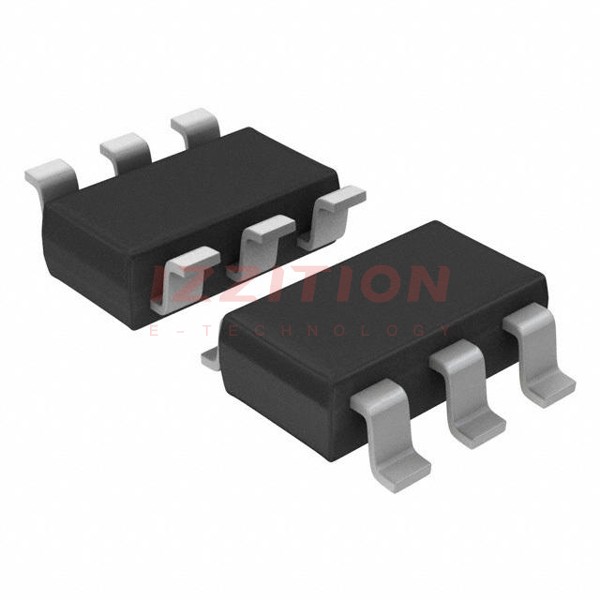

The TVS4201MR6T1G is a Transient Voltage Suppressor (TVS) diode manufactured by onsemi, designed to protect electronic circuits from voltage spikes and surges. This component is part of the TVS4201MR6 series and is housed in a compact TSOP-6 (SC-74) surface mount package. It is particularly suited for applications requiring high surge protection in a small form factor.
Key Specifications
| Parameter | Value |
|---|---|
| Polarity | Unidirectional |
| Number of Channels | 4 Channel |
| Working Voltage | 5 V |
| Termination Style | SMD/SMT |
| Clamping Voltage | 12 V |
| Breakdown Voltage | 6 V |
| Ipp - Peak Pulse Current | 25 A |
| Pppm - Peak Pulse Power Dissipation | 500 W |
| Cd - Diode Capacitance | 5 pF |
| Vesd - Voltage ESD Contact | 30 kV |
| Vesd - Voltage ESD Air Gap | 30 kV |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Package Style | TSOP-6 (SC-74) |
| Mounting Method | Surface Mount |
Key Features
- Up to 500W for ImS Pulse Power Capability, ensuring robust protection against high-energy surges.
- Clamping time in picoseconds, providing rapid response to transient events.
- Direct applicability for all popular microprocessors and IC families, making it versatile for various applications.
- Metallurgically bonded assembly system to assure long-term reliability.
- Miniature glass-encased hermetically sealed package, enhancing durability and performance.
- ROHS compliant, ensuring environmental sustainability.
Applications
The TVS4201MR6T1G is commonly used in various applications including:
- Industrial automation: Protecting control systems and sensitive electronics from power surges and ESD events.
- Telecommunications equipment: Safeguarding against voltage spikes and transients in communication systems.
- Automotive electronics: Providing surge protection in automotive systems, ensuring reliability and safety.
- Consumer electronics: Protecting electronic devices from voltage surges and ESD, enhancing product lifespan.
Q & A
- Q: What is the primary function of the TVS4201MR6T1G?
A: The TVS4201MR6T1G is a Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage spikes and surges.
- Q: What is the package type of the TVS4201MR6T1G?
A: The TVS4201MR6T1G is housed in a TSOP-6 (SC-74) surface mount package.
- Q: What is the peak pulse power dissipation of the TVS4201MR6T1G?
A: The TVS4201MR6T1G has a peak pulse power dissipation of 500 W.
- Q: What is the clamping voltage of the TVS4201MR6T1G?
A: The clamping voltage of the TVS4201MR6T1G is 12 V.
- Q: What is the breakdown voltage of the TVS4201MR6T1G?
A: The breakdown voltage of the TVS4201MR6T1G is 6 V.
- Q: Is the TVS4201MR6T1G ROHS compliant?
A: Yes, the TVS4201MR6T1G is ROHS compliant.
- Q: What are the typical applications of the TVS4201MR6T1G?
A: The TVS4201MR6T1G is used in industrial automation, telecommunications equipment, automotive electronics, and consumer electronics.
- Q: What is the operating temperature range of the TVS4201MR6T1G?
A: The operating temperature range of the TVS4201MR6T1G is from -40°C to +125°C.
- Q: How many channels does the TVS4201MR6T1G have?
A: The TVS4201MR6T1G has 4 channels.
- Q: What is the warranty period for the TVS4201MR6T1G?
A: The warranty period for the TVS4201MR6T1G is typically 1 year, depending on the supplier's policy.
