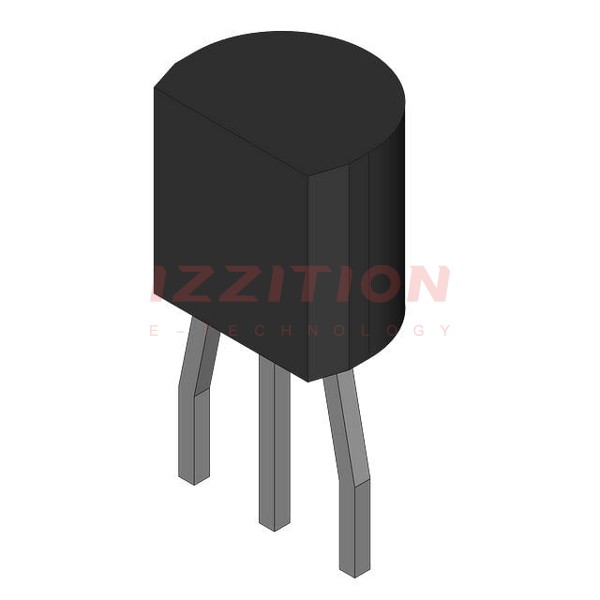

onsemi SS8050BBU-ON

Manufacturer No:
SS8050BBU-ON
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN 25V 1.5A TO92-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The SS8050BBU-ON is an NPN epitaxial silicon transistor manufactured by onsemi. This transistor is designed for general-purpose amplification and switching applications. It is particularly suited for use in Class B push-pull amplifiers, such as those found in portable radios. The SS8050BBU-ON is complementary to the SS8550 PNP transistor, making it a versatile component for a variety of electronic circuits.

Key Specifications

Parameter Symbol Value Unit
Collector-Base Voltage VCBO 40 V
Collector-Emitter Voltage VCEO 25 V
Emitter-Base Voltage VEBO 6 V
Collector Current IC 1.5 A
Junction Temperature TJ 150 °C
Storage Temperature TSTG -65 to 150 °C
Power Dissipation PD 1 W
Derate Above 25°C - 8 mW/°C -
Thermal Resistance, Junction-to-Ambient RθJA 125 °C/W
DC Current Gain (hFE) at IC = 100 mA, VCE = 1 V hFE2 85 ~ 300 -
Collector-Emitter Saturation Voltage at IC = 800 mA, IB = 80 mA VCE(sat) 0.5 V
Base-Emitter Saturation Voltage at IC = 800 mA, IB = 80 mA VBE(sat) 1.2 V
Current Gain Bandwidth Product at VCE = 10 V, IC = 50 mA fT 100 MHz

Key Features

  • General-purpose NPN epitaxial silicon transistor.
  • Suitable for Class B push-pull amplifiers in portable radios.
  • Complementary to the SS8550 PNP transistor.
  • Collector current (IC) up to 1.5 A.
  • Collector-emitter voltage (VCEO) up to 25 V.
  • Pb-free, halogen-free, and RoHS compliant.
  • High DC current gain (hFE) with a range of 85 to 300.
  • Low collector-emitter saturation voltage (VCE(sat)) of 0.5 V.
  • High current gain bandwidth product (fT) of 100 MHz.

Applications

  • Class B push-pull amplifiers in portable radios and other audio equipment.
  • General-purpose amplification and switching circuits.
  • Automotive and industrial control systems.
  • Consumer electronics such as audio amplifiers and power supplies.

Q & A

  1. What is the maximum collector current of the SS8050BBU-ON transistor?

    The maximum collector current (IC) is 1.5 A.

  2. What is the collector-emitter voltage rating of the SS8050BBU-ON?

    The collector-emitter voltage (VCEO) is up to 25 V.

  3. Is the SS8050BBU-ON transistor RoHS compliant?
  4. What is the typical DC current gain (hFE) of the SS8050BBU-ON?

    The DC current gain (hFE) ranges from 85 to 300 at IC = 100 mA and VCE = 1 V.

  5. What is the thermal resistance, junction-to-ambient (RθJA) of the SS8050BBU-ON?

    The thermal resistance, junction-to-ambient (RθJA) is 125 °C/W.

  6. What is the current gain bandwidth product (fT) of the SS8050BBU-ON?

    The current gain bandwidth product (fT) is 100 MHz at VCE = 10 V and IC = 50 mA.

  7. What are the typical applications of the SS8050BBU-ON transistor?

    It is commonly used in Class B push-pull amplifiers, general-purpose amplification, and switching circuits.

  8. What is the package type of the SS8050BBU-ON transistor?

    The package type is TO-92-3 (TO-226AA).

  9. What is the maximum junction temperature of the SS8050BBU-ON transistor?

    The maximum junction temperature (TJ) is 150 °C.

  10. What is the storage temperature range for the SS8050BBU-ON transistor?

    The storage temperature range (TSTG) is -65 to 150 °C.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):25 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 80mA, 800mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:85 @ 100mA, 1V
Power - Max:1 W
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:TO-92-3
