Overview

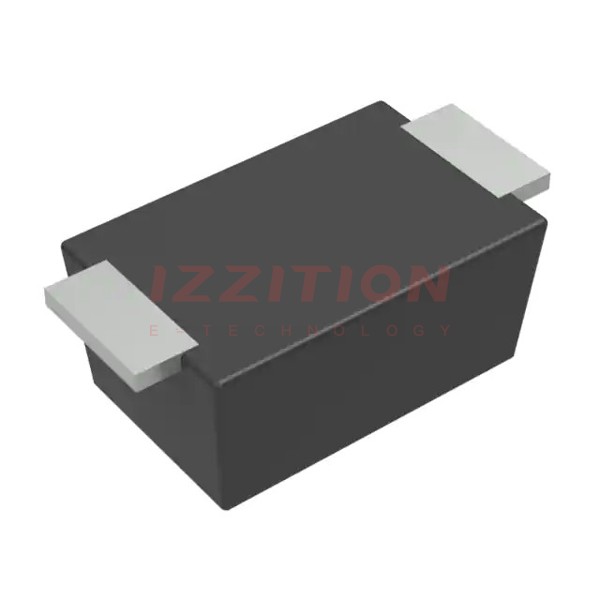

The SS25FA is a Schottky Barrier Rectifier produced by onsemi, designed for high-speed switching applications. This component is part of onsemi's portfolio of Schottky diodes and rectifiers, known for their high efficiency and low power loss. The SS25FA is particularly suited for circuit protection and voltage clamping due to its high surge current capability and guard ring for overvoltage protection.
Key Specifications
| Parameter | Value |
|---|---|
| Current Rating | 2 A |
| Voltage Rating | 20 V - 150 V |
| Package Type | Surface Mount |
| Surge Current Capability | High |
| Overvoltage Protection | Guard Ring |
| Flammability Classification | UL 94V-0 |
Key Features
- Low Power Loss, High Efficiency
- Guard Ring for Overvoltage Protection
- High Surge Current Capability
- UL Flammability 94V-0 Classification
- Designed for high-speed switching applications, circuit protection, and voltage clamping
Applications
The SS25FA is ideal for various applications requiring high-speed switching, circuit protection, and voltage clamping. These include but are not limited to:
- High-speed switching circuits
- Circuit protection in power supplies and electronic devices
- Voltage clamping in sensitive electronic systems
Q & A
- What is the current rating of the SS25FA?
The current rating of the SS25FA is 2 A. - What is the voltage rating range of the SS25FA?
The voltage rating range of the SS25FA is 20 V to 150 V. - What type of package does the SS25FA come in?
The SS25FA comes in a surface mount package. - Does the SS25FA have overvoltage protection?
Yes, the SS25FA has a guard ring for overvoltage protection. - What is the flammability classification of the SS25FA?
The SS25FA has a UL 94V-0 flammability classification. - What are the primary applications of the SS25FA?
The primary applications include high-speed switching, circuit protection, and voltage clamping. - Is the SS25FA suitable for high surge current applications?
Yes, the SS25FA has high surge current capability. - Where can I find detailed specifications for the SS25FA?
Detailed specifications can be found in the datasheet available on onsemi's official website and other electronic component distributors like Mouser Electronics. - What are the key features of the SS25FA?
The key features include low power loss, high efficiency, guard ring for overvoltage protection, high surge current capability, and UL 94V-0 flammability classification. - Is the SS25FA designed for high-speed switching applications?
Yes, the SS25FA is designed for high-speed switching applications.
