Overview

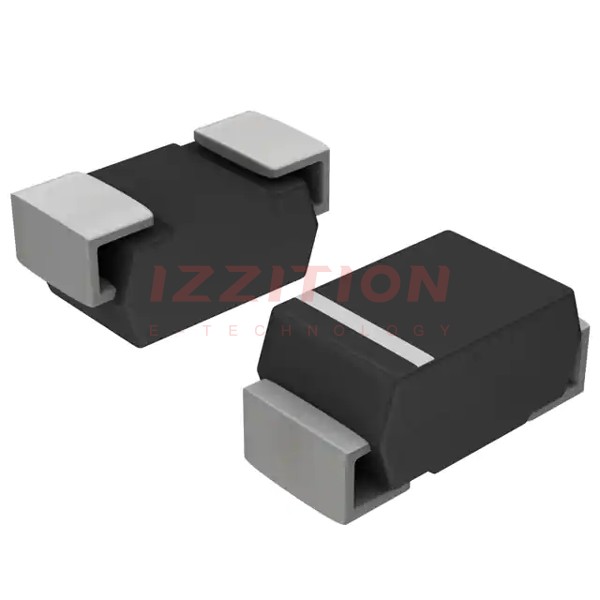

The SS12T3G is a Schottky power rectifier diode produced by onsemi. This diode employs the Schottky Barrier principle in a large area metal-to-silicon power diode, featuring state-of-the-art geometry with epitaxial construction, oxide passivation, and metal overlay contact. It is ideally suited for low voltage, high frequency rectification and can be used as free wheeling and polarity diodes in surface mount applications where compact size and weight are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 20 V |
| Current Rating (I) | 1 A |
| Package Type | SMA (Surface Mount) |
| Lead Configuration | 2-pin, J-Bent Leads |
| Weight | Approximately 70 mg |
| Case Material | Epoxy, Molded, UL94 V0 |
| Lead and Mounting Surface Temperature | 260°C Max. for 10 Seconds |
| ESD Ratings | Machine Model: B (> 200V); Human Body Model: 3B (> 8000V) |
| Pb-Free Availability | Yes |
| MSL Type | MSL 1 |
Key Features
- Highly stable oxide passivated junction
- Guardring for stress protection
- Small, compact surface mountable package with J-Bent leads
- Rectangular package for automated handling
- Corrosion-resistant external surfaces and readily solderable terminal leads
- Polarity indicated by notch in plastic body or polarity band
Applications
The SS12T3G is suitable for various applications, including:
- Low voltage, high frequency rectification
- Free wheeling diodes in power supplies and motor control circuits
- Polarity protection in electronic circuits
- Surface mount applications where compact size and weight are critical
Q & A
- What is the voltage rating of the SS12T3G diode?
The voltage rating of the SS12T3G diode is 20 V. - What is the current rating of the SS12T3G diode?
The current rating of the SS12T3G diode is 1 A. - What type of package does the SS12T3G diode use?
The SS12T3G diode uses a Surface Mount (SMA) package. - What is the weight of the SS12T3G diode?
The weight of the SS12T3G diode is approximately 70 mg. - Is the SS12T3G diode Pb-free?
Yes, the SS12T3G diode is available in Pb-free packages. - What is the maximum lead and mounting surface temperature for soldering?
The maximum lead and mounting surface temperature for soldering is 260°C for 10 seconds. - What are the ESD ratings for the SS12T3G diode?
The ESD ratings for the SS12T3G diode are Machine Model: B (> 200V) and Human Body Model: 3B (> 8000V). - What is the MSL type for the SS12T3G diode?
The MSL type for the SS12T3G diode is MSL 1. - How is the polarity of the SS12T3G diode indicated?
The polarity of the SS12T3G diode is indicated by either a notch in the plastic body or a polarity band. - What are some common applications for the SS12T3G diode?
The SS12T3G diode is commonly used in low voltage, high frequency rectification, free wheeling diodes, and polarity protection in electronic circuits.
