Overview

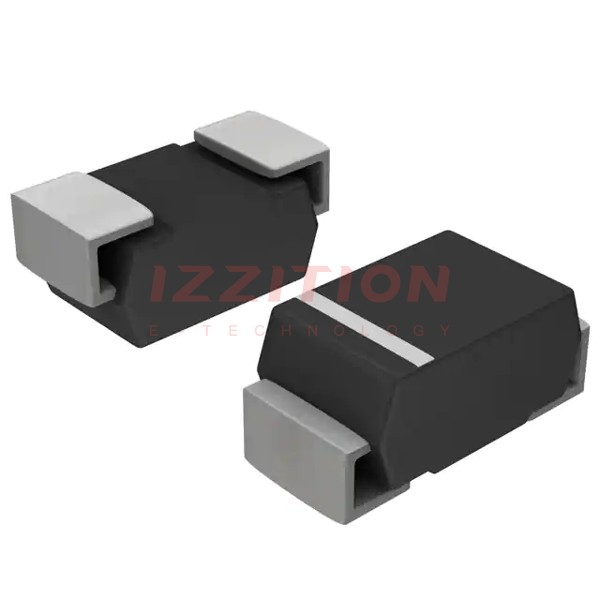

The SBRA8160T3G-VF01 is a Schottky rectifier diode manufactured by onsemi, designed for surface-mount applications. This diode is optimized for high-efficiency rectification in various electronic systems. Despite being obsolete and no longer manufactured, it remains a significant component in existing designs and legacy systems.
Key Specifications
| Parameter | Value |
|---|---|
| Technology | Schottky |
| Forward Current (If) | 1 A |
| Repetitive Reverse Voltage (Vrrm) | 60 V |
| Forward Voltage (Vf) @ If | 720 mV @ 1 A |
Key Features
- High-efficiency Schottky rectification
- Low forward voltage drop (Vf) of 720 mV at 1 A
- High reverse voltage rating of 60 V
- Surface-mount package for compact designs
- Optimized for high-frequency applications
Applications
The SBRA8160T3G-VF01 is suitable for a variety of applications, including:
- Power supplies and DC-DC converters
- High-frequency switching circuits
- Rectification in automotive and industrial systems
- General-purpose rectification in electronic devices
Q & A
- What is the forward current rating of the SBRA8160T3G-VF01? The forward current rating is 1 A.
- What is the repetitive reverse voltage rating of the SBRA8160T3G-VF01? The repetitive reverse voltage rating is 60 V.
- What is the forward voltage drop (Vf) of the SBRA8160T3G-VF01 at 1 A? The forward voltage drop is 720 mV at 1 A.
- Is the SBRA8160T3G-VF01 still in production? No, the SBRA8160T3G-VF01 is obsolete and no longer manufactured.
- What type of diode is the SBRA8160T3G-VF01? The SBRA8160T3G-VF01 is a Schottky rectifier diode.
- What is the package type of the SBRA8160T3G-VF01? The SBRA8160T3G-VF01 is designed for surface-mount applications.
- What are some common applications of the SBRA8160T3G-VF01? Common applications include power supplies, DC-DC converters, high-frequency switching circuits, and general-purpose rectification in electronic devices.
- Why is the SBRA8160T3G-VF01 used in high-frequency applications? It is used due to its low forward voltage drop and high reverse voltage rating, making it efficient for high-frequency switching.
- Can the SBRA8160T3G-VF01 be used in automotive systems? Yes, it can be used in automotive systems due to its robust specifications and reliability.
- Where can I find substitutes for the SBRA8160T3G-VF01? You can find substitutes on websites like Digi-Key, which provide recommendations for obsolete parts.
