NUP4202W1T2G
  • Share:

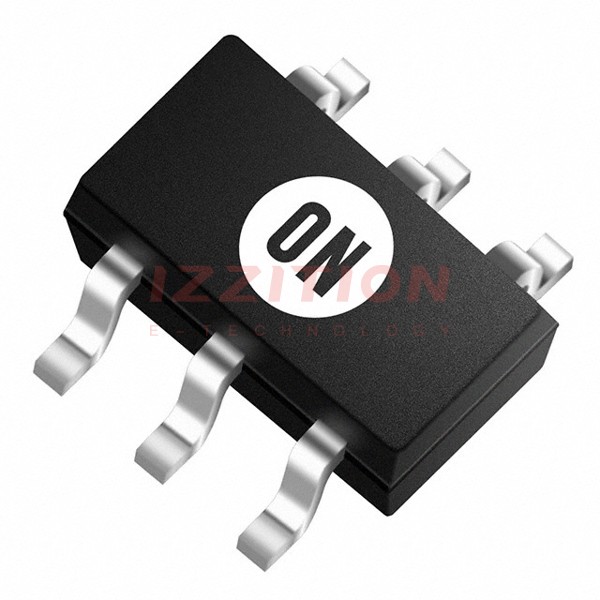

onsemi NUP4202W1T2G

Manufacturer No:
NUP4202W1T2G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TVS DIODE 5VWM 14.5V SC88/SC70-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NUP4202W1T2G is an ESD protection diode array designed and manufactured by onsemi. This component is specifically engineered to protect high-speed data lines from electrostatic discharge (ESD), electrical fast transient (EFT), and lightning surges. It is part of the NUP42 series and is known for its low clamping voltage and low capacitance, making it suitable for use in high-speed I/O data lines. The device is packaged in a SC−88 (SOT-363) package and is lead-free, complying with RoHS standards.

Key Specifications

ParameterSymbolValueUnit
Peak Power DissipationPpk500Watts
Operating Junction Temperature RangeTJ−40 to +125°C
Storage Temperature RangeTstg−55 to +150°C
Maximum Reverse Peak Pulse CurrentIPP28 A @ 8/20 μsA
Clamping Voltage @ IPPVC14.5 VV
Working Peak Reverse VoltageVRWM5 VV
Maximum Reverse Leakage Current @ VRWMIR<1 μAA
Breakdown Voltage @ ITVBR6 VV
Forward Voltage @ IFVF<1 VV
Capacitance @ VR = 0 and f = 1.0 MHzC<1 pFpF

Key Features

  • Low clamping voltage to protect sensitive electronics.
  • Low capacitance, suitable for high-speed data lines.
  • Protection for IEC 61000-4-2 Level 4 ESD standards.
  • UL flammability rating of 94 V-0.
  • Pb-free and RoHS compliant.
  • Integrated surge protection diode and steering diodes in a single SC−88 package.
  • Able to protect up to four data lines against transient overvoltage conditions.

Applications

  • High-speed communication line protection.
  • USB 1.1 and 2.0 power and data line protection.
  • Digital Video Interface (DVI) and HDMI protection.
  • Monitors and flat panel displays.
  • Protection of computer peripherals and sensitive electronics against ESD and transient overvoltage conditions.

Q & A

  1. What is the primary function of the NUP4202W1T2G? The primary function is to protect high-speed data lines from ESD, EFT, and lightning surges.
  2. What is the package type of the NUP4202W1T2G? The component is packaged in a SC−88 (SOT-363) package.
  3. What are the operating temperature ranges for the NUP4202W1T2G? The operating junction temperature range is −40 to +125°C, and the storage temperature range is −55 to +150°C.
  4. What is the peak power dissipation of the NUP4202W1T2G? The peak power dissipation is 500 Watts.
  5. Is the NUP4202W1T2G RoHS compliant? Yes, the device is Pb-free and RoHS compliant.
  6. What are the typical applications of the NUP4202W1T2G? Typical applications include high-speed communication line protection, USB power and data line protection, DVI and HDMI protection, and protection for monitors and flat panel displays.
  7. How many data lines can the NUP4202W1T2G protect? The device can protect up to four data lines against transient overvoltage conditions.
  8. What is the clamping voltage of the NUP4202W1T2G? The clamping voltage is 14.5 V at a peak pulse current of 28 A.
  9. What is the maximum reverse leakage current of the NUP4202W1T2G? The maximum reverse leakage current is less than 1 μA.
  10. Does the NUP4202W1T2G meet any specific ESD protection standards? Yes, it meets IEC 61000-4-2 Level 4 ESD protection standards.

Product Attributes

Type:Steering (Rail to Rail)
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):6V
Voltage - Clamping (Max) @ Ipp:14.5V (Typ)
Current - Peak Pulse (10/1000µs):28A (8/20µs)
Power - Peak Pulse:500W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:3pF @ 1MHz
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SC-88/SC70-6/SOT-363
0 Remaining View Similar

In Stock

$0.91
724

Please send RFQ , we will respond immediately.

Similar Products

Part Number NUP4202W1T2G NUP2202W1T2G
Manufacturer onsemi onsemi
Product Status Active Active
Type Steering (Rail to Rail) Steering (Rail to Rail)
Unidirectional Channels 4 2
Bidirectional Channels - -
Voltage - Reverse Standoff (Typ) 5V (Max) 5V (Max)
Voltage - Breakdown (Min) 6V 6V
Voltage - Clamping (Max) @ Ipp 14.5V (Typ) 20V
Current - Peak Pulse (10/1000µs) 28A (8/20µs) 8A (8/20µs)
Power - Peak Pulse 500W 500W
Power Line Protection No Yes
Applications General Purpose General Purpose
Capacitance @ Frequency 3pF @ 1MHz 3pF @ 1MHz
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-88/SC70-6/SOT-363 SC-88/SC70-6/SOT-363
