Overview

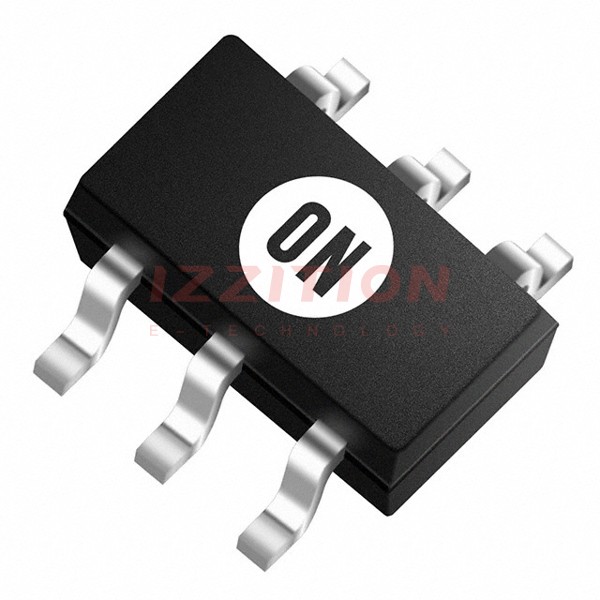

The onsemi NUP2202W1T2G is a dual-element, uni-directional TVS (Transient Voltage Suppressor) diode array designed for high-speed data line protection. This component is packaged in a 6-pin SOT-363 (SC-88) surface mount format, making it suitable for a variety of electronic applications requiring ESD and surge protection. The NUP2202W1T2G is known for its low capacitance and high peak pulse power dissipation, ensuring reliable protection against transient voltage events.
Key Specifications
| Parameter | Value |
|---|---|
| Peak Pulse Current (Ipp) | 8 A |
| Peak Pulse Power Dissipation (Pppm) | 500 W |
| Diode Capacitance (Cd) | 5 pF |
| Voltage ESD Contact (Vesd) | 20 kV |
| Minimum Breakdown Voltage | 6 V |
| Package Type | 6-pin SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
Key Features
- Low capacitance to minimize signal distortion in high-speed data lines.
- High peak pulse power dissipation of 500 W for robust transient voltage protection.
- Uni-directional TVS diode array providing protection against ESD and surge events.
- Compact 6-pin SOT-363 (SC-88) surface mount package for space-efficient designs.
- RoHS compliant, ensuring environmental sustainability.
Applications
The onsemi NUP2202W1T2G is ideal for protecting high-speed data lines in various electronic systems, including but not limited to:
- USB interfaces
- Ethernet ports
- Serial communication lines
- Audio and video interfaces
- General-purpose ESD protection in consumer electronics and industrial equipment.
Q & A
- What is the peak pulse current rating of the NUP2202W1T2G?
The peak pulse current rating is 8 A. - What is the peak pulse power dissipation of the NUP2202W1T2G?
The peak pulse power dissipation is 500 W. - What is the diode capacitance of the NUP2202W1T2G?
The diode capacitance is 5 pF. - What is the voltage ESD contact rating of the NUP2202W1T2G?
The voltage ESD contact rating is 20 kV. - What is the minimum breakdown voltage of the NUP2202W1T2G?
The minimum breakdown voltage is 6 V. - What is the package type of the NUP2202W1T2G?
The package type is 6-pin SOT-363 (SC-88). - Is the NUP2202W1T2G RoHS compliant?
Yes, the NUP2202W1T2G is RoHS compliant. - What are the typical applications of the NUP2202W1T2G?
The NUP2202W1T2G is typically used for protecting high-speed data lines in USB interfaces, Ethernet ports, serial communication lines, and other similar applications. - Why is low capacitance important in the NUP2202W1T2G?
Low capacitance is important to minimize signal distortion in high-speed data lines. - How does the NUP2202W1T2G protect against transient voltage events?
The NUP2202W1T2G protects against transient voltage events through its high peak pulse power dissipation and uni-directional TVS diode array configuration.
