Overview

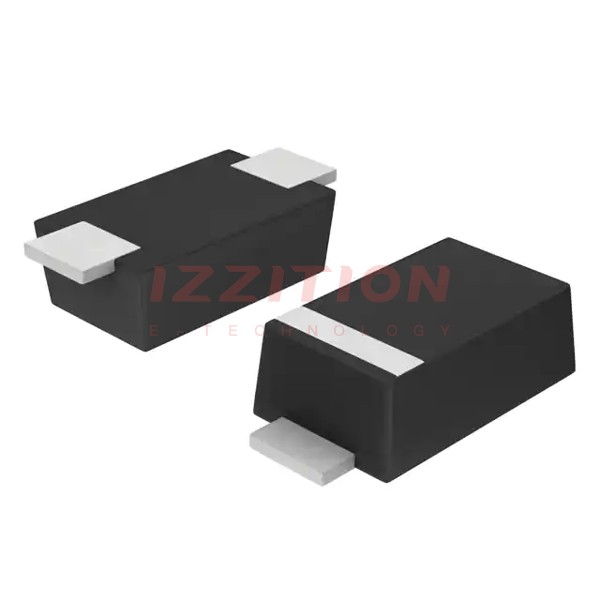

The NRVHP120SFT3G is an ultrafast power rectifier produced by onsemi, designed for high-efficiency and fast switching performance. This component is packaged in a compact SOD-123FL surface mount package, making it ideal for applications where board space is limited. The rectifier is AEC-Q101 qualified and PPAP capable, ensuring its suitability for automotive and other demanding applications. It is also Pb-free, halogen-free, and RoHS compliant, aligning with modern environmental standards.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Peak Repetitive Reverse Voltage | VRRM | 200 | V |
| Average Rectified Forward Current (TL = 158°C) | IO | 1.0 | A |
| Peak Repetitive Forward Current (Square Wave, 20 kHz, TL = 155°C) | IFRM | 2.0 | A |
| Non-Repetitive Peak Surge Current | IFSM | 30 | A |
| Storage and Operating Junction Temperature Range | Tstg, TJ | −65 to +175 | °C |
| Maximum Instantaneous Forward Voltage (IF = 1.0 A, TJ = 25°C) | VF | 1.0 | V |
| Reverse Recovery Time (IF = 1.0 A, VR = 30 V, dl/dt = 50 A/μs, TJ = 25°C) | trr | 25 | ns |
| Thermal Resistance, Junction-to-Ambient | RθJA | 85 | °C/W |
Key Features
- Fast soft switching for reduced EMI and higher efficiency
- Low profile with a maximum height of 1.0 mm and small footprint of 5.94 mm²
- AEC-Q101 qualified and PPAP capable for automotive and other demanding applications
- Pb-free, halogen-free, and RoHS compliant
- Low leakage over temperature, suitable for applications requiring low quiescent current
Applications
- Instrumentation
- Output rectification in switching power supplies, including mini adaptors and flat panel displays
- LED lighting
- Freewheeling diode in applications where space is at a premium
- Automotive and portable electronics due to its compact and thermally efficient design
Q & A
- What is the peak repetitive reverse voltage of the NRVHP120SFT3G?
The peak repetitive reverse voltage is 200 V.
- What is the average rectified forward current of the NRVHP120SFT3G at 158°C?
The average rectified forward current is 1.0 A.
- What is the maximum non-repetitive peak surge current of the NRVHP120SFT3G?
The maximum non-repetitive peak surge current is 30 A.
- What is the storage and operating junction temperature range of the NRVHP120SFT3G?
The storage and operating junction temperature range is −65 to +175 °C.
- What is the maximum instantaneous forward voltage of the NRVHP120SFT3G at 1.0 A and 25°C?
The maximum instantaneous forward voltage is 1.0 V.
- What is the reverse recovery time of the NRVHP120SFT3G at 1.0 A, 30 V, and 25°C?
The reverse recovery time is 25 ns.
- Is the NRVHP120SFT3G RoHS compliant?
- What are some typical applications of the NRVHP120SFT3G?
Typical applications include instrumentation, output rectification in switching power supplies, LED lighting, and freewheeling diodes in space-constrained applications.
- Is the NRVHP120SFT3G suitable for automotive applications?
- What is the thermal resistance, junction-to-ambient, of the NRVHP120SFT3G?
The thermal resistance, junction-to-ambient, is 85 °C/W.
