Overview

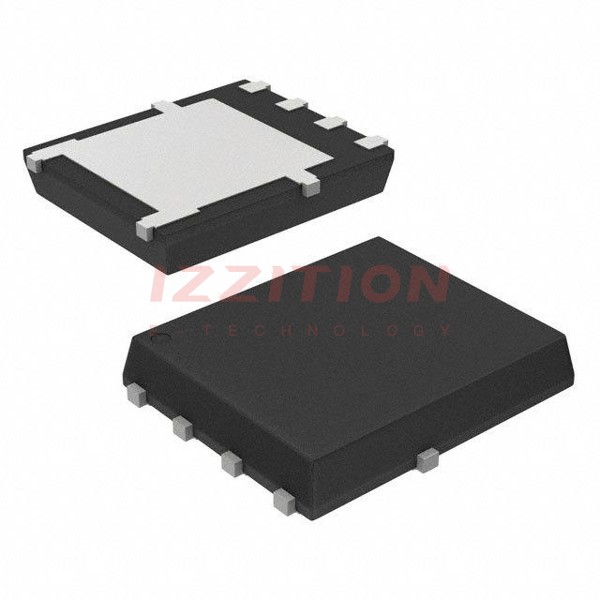

The onsemi NRVB2045EMFST1G is a high-performance Schottky rectifier diode designed for various power management and conversion applications. This component is part of the NRVB2045EMFS product range and is known for its fast recovery characteristics and high current handling capability. It is packaged in an 8-PowerTDFN, 5-lead configuration, which is suitable for surface mount technology (SMT) assembly. The diode is qualified to the AEC-Q101 standard, making it reliable for automotive and other demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Configuration | Single |
| Vf - Forward Voltage | 350 mV |
| Max Surge Current | 400 A |
| Ir - Reverse Current | 48 mA |
| Operating Temperature | -55°C to 150°C |
| Package Type | 8-PowerTDFN, 5 Leads |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
Key Features
- Fast recovery time, making it suitable for high-frequency applications.
- High current handling capability of up to 20 A.
- Low forward voltage drop of 350 mV, reducing power losses.
- Wide operating temperature range from -55°C to 150°C.
- AEC-Q101 qualified, ensuring reliability in automotive and other harsh environments.
- Compact 8-PowerTDFN package with 5 leads, ideal for SMT assembly.
Applications
The onsemi NRVB2045EMFST1G Schottky rectifier is versatile and can be used in a variety of applications, including:
- Power supplies and DC-DC converters.
- Automotive systems, such as battery charging and power management.
- Industrial power management and control systems.
- High-frequency switching circuits.
- Renewable energy systems, such as solar and wind power.
Q & A
- What is the maximum forward current of the NRVB2045EMFST1G?
The maximum forward current is 20 A. - What is the forward voltage drop of this diode?
The forward voltage drop is 350 mV. - What is the operating temperature range of the NRVB2045EMFST1G?
The operating temperature range is -55°C to 150°C. - Is the NRVB2045EMFST1G qualified for automotive use?
Yes, it is qualified to the AEC-Q101 standard. - What type of package does the NRVB2045EMFST1G come in?
The diode is packaged in an 8-PowerTDFN with 5 leads. - What is the maximum surge current the diode can handle?
The maximum surge current is 400 A. - What is the reverse current of the NRVB2045EMFST1G?
The reverse current is 48 mA. - Is the NRVB2045EMFST1G suitable for high-frequency applications?
Yes, it is suitable due to its fast recovery time. - What type of mounting is used for the NRVB2045EMFST1G?
The diode uses surface mount technology (SMT). - Where can I find detailed specifications for the NRVB2045EMFST1G?
Detailed specifications can be found in the technical datasheet available from onsemi or authorized distributors.
