Overview
The NCD98010XMXTAG, produced by onsemi, is a 12-bit low power Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This device is optimized for low power consumption and high speed, making it an ideal solution for various analog-to-digital conversion applications. The NCD98010 features a capacitor-based successive-approximation architecture and can achieve a sample rate of 2 Mega Samples Per Second (MSPS) while consuming less than 1 milliwatt (mW) of power. It supports a wide input voltage range of 1.65 V to 3.3 V, suitable for both analog and digital supplies. The device also includes an SPI-compatible interface for straightforward data acquisition.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sample Rate | 2 MSPS |
| Power Consumption | < 1 mW |
| Input Voltage Range | 1.65 V to 3.3 V |
| Control Interface | SPI-compatible |

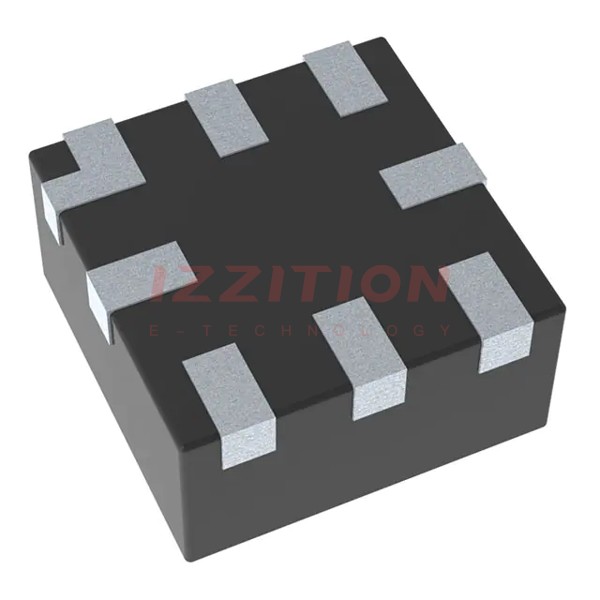

| Package Type | X2QFN8, 1.5x1.5 mm, 0.5 mm pitch |
| Channels | 1 |
| Operating Temperature | -40°C to 125°C |
| Compliance | Pb-free, Halogen-free/BFR-free, RoHS compliant |
Key Features
- Nanowatt power consumption
- Fully differential input
- 2 MSPS throughput
- Small package size
- Pre-calibrated
- SPI interface
- Pb-free, Halogen-free/BFR-free, and RoHS compliant
Applications
- Low-power data acquisition
- Battery-powered equipment
- Level sensors
- Ultrasonic flow meters
- Motor controls
- Wearable fitness devices
- Portable medical equipment
- Glucose meters
Q & A
- What is the resolution of the NCD98010XMXTAG ADC?
The NCD98010XMXTAG has a resolution of 12 bits. - What is the maximum sample rate of the NCD98010XMXTAG?
The maximum sample rate is 2 MSPS. - How much power does the NCD98010XMXTAG consume?
The device consumes less than 1 mW of power. - What is the input voltage range of the NCD98010XMXTAG?
The input voltage range is from 1.65 V to 3.3 V. - What type of interface does the NCD98010XMXTAG use?
The device uses an SPI-compatible interface. - What is the package type of the NCD98010XMXTAG?
The package type is X2QFN8, with dimensions of 1.5x1.5 mm and a 0.5 mm pitch. - Is the NCD98010XMXTAG RoHS compliant?
Yes, the device is Pb-free, Halogen-free/BFR-free, and RoHS compliant. - What are some typical applications of the NCD98010XMXTAG?
Typical applications include low-power data acquisition, battery-powered equipment, level sensors, ultrasonic flow meters, motor controls, wearable fitness devices, portable medical equipment, and glucose meters. - How many channels does the NCD98010XMXTAG have?
The device has one channel. - What is the operating temperature range of the NCD98010XMXTAG?
The operating temperature range is from -40°C to 125°C.
