Overview

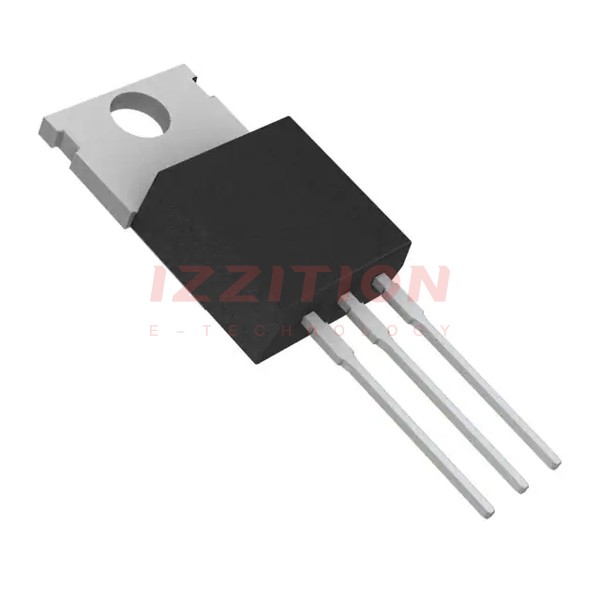

The MJE13009G is a high-voltage, high-speed NPN silicon power transistor designed by onsemi. It is specifically suited for applications requiring fast switching times and high current handling, such as switch-mode regulators, inverters, motor controls, solenoid/relay drivers, and deflection circuits. This transistor is particularly effective in 115 and 220 V switch-mode applications, making it a versatile component for various power switching inductive circuits.
Key Specifications
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Collector-Emitter Voltage (VCEO(sus)) | VCEO(sus) | 400 | Vdc |
| Collector-Emitter Voltage (VCEV) | VCEV | 700 | Vdc |
| Emitter-Base Voltage (VEBO) | VEBO | 9 | Vdc |
| Collector Current - Continuous | IC | 12 | Adc |
| Collector Current - Peak | ICM | 24 | Adc |
| Base Current - Continuous | IB | 6 | Adc |
| Base Current - Peak | IBM | 12 | Adc |
| Emitter Current - Continuous | IE | 18 | Adc |
| Emitter Current - Peak | IEM | 36 | Adc |
| Total Device Dissipation @ TA = 25°C | PD | 2 | W |
| Operating and Storage Junction Temperature Range | TJ, Tstg | -65 to +150 | °C |
| Thermal Resistance, Junction-to-Ambient | RθJA | 62.5 | °C/W |
| Thermal Resistance, Junction-to-Case | RθJC | 1.25 | °C/W |
| Maximum Lead Temperature for Soldering | TL | 275 | °C |
Key Features
- High-voltage capability: VCEO(sus) of 400 V and VCEV of 700 V.
- High-speed switching: Suitable for inductive switching with fall times as low as 120 ns at 100°C.
- Reverse Bias SOA with Inductive Loads: Ensures reliable operation under inductive load conditions.
- Pb-Free and RoHS Compliant: Environmentally friendly packaging.
- High current handling: Continuous collector current of 12 A and peak collector current of 24 A.
- Low thermal resistance: Junction-to-case thermal resistance of 1.25 °C/W.
Applications
The MJE13009G is particularly suited for various high-voltage, high-speed applications including:
- Switch-mode regulators.
- Inverters.
- Motor controls.
- Solenoid/relay drivers.
- Deflection circuits.
Q & A
- What is the maximum collector-emitter voltage (VCEO) of the MJE13009G?
The maximum collector-emitter voltage (VCEO) is 400 Vdc. - What is the peak collector current rating of the MJE13009G?
The peak collector current rating is 24 Adc. - What are the typical applications for the MJE13009G?
Typical applications include switch-mode regulators, inverters, motor controls, solenoid/relay drivers, and deflection circuits. - Is the MJE13009G Pb-Free and RoHS Compliant?
Yes, the MJE13009G is Pb-Free and RoHS Compliant. - What is the thermal resistance from junction to ambient for the MJE13009G?
The thermal resistance from junction to ambient is 62.5 °C/W. - What is the maximum lead temperature for soldering the MJE13009G?
The maximum lead temperature for soldering is 275 °C. - What is the typical fall time for the MJE13009G at 100°C?
The typical fall time at 100°C is 120 ns. - What is the current-gain bandwidth product (fT) of the MJE13009G?
The current-gain bandwidth product (fT) is 4 MHz. - What is the output capacitance of the MJE13009G?
The output capacitance is approximately 180 pF. - What are the operating and storage junction temperature ranges for the MJE13009G?
The operating and storage junction temperature range is -65 to +150 °C.
