Overview

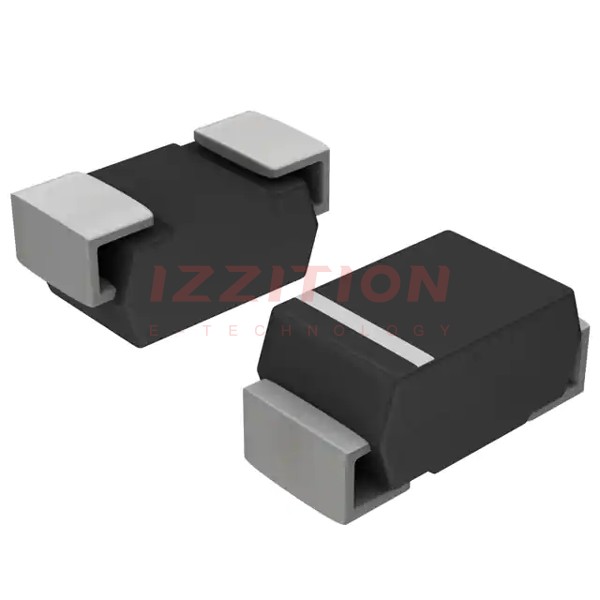

The MBRA2H100T3G is a surface mount Schottky power rectifier produced by onsemi. This component is designed for high-efficiency rectification in various electronic systems. It features a compact SMA (DO-214AC, SOD-106) package, making it ideal for automated handling and space-constrained applications. The MBRA2H100T3G is known for its high stability, oxide passivated junction, and guard-ring for overvoltage protection, ensuring reliable performance under diverse operating conditions.
Key Specifications
| Attribute | Value | Unit |
|---|---|---|
| Average Rectified Current (Max) | 2 | A |
| Peak Current (Max) | 130 | A |
| Reverse Voltage (Max) | 100 | V |
| Reverse Current (Max) | 8 µA | |
| Forward Voltage | 0.79 | V |
| Package Style | SMA (DO-214AC, SOD-106) | |
| Mounting Method | Surface Mount | |
| Storage Temperature Range | −65 to +175 | °C |
| Operating Junction Temperature | −65 to +175 | °C |
| Lead and Mounting Surface Temperature | 260°C Max. for 10 Seconds | |
| ESD Ratings | Machine Model = C, Human Body Model = 3B | |
| Pb-Free and RoHS Compliance | Yes |
Key Features
- Highly stable oxide passivated junction for reliable operation.
- Guard-ring for overvoltage protection.
- Compact SMA (DO-214AC, SOD-106) package ideal for automated handling and space-constrained applications.
- Lead and mounting surface temperature up to 260°C for 10 seconds, suitable for soldering purposes.
- Corrosion-resistant external surfaces and readily solderable terminal leads.
- Pb-Free and RoHS compliant, meeting environmental standards.
- Meets MSL1 requirements for moisture sensitivity.
Applications
- Power supplies and DC-DC converters.
- Switch-mode power supplies.
- High-frequency rectification.
- Automotive and industrial power systems.
- Consumer electronics requiring efficient rectification.
Q & A
- What is the maximum average rectified current of the MBRA2H100T3G?
The maximum average rectified current is 2 A.
- What is the peak repetitive reverse voltage of the MBRA2H100T3G?
The peak repetitive reverse voltage is 100 V.
- What is the forward voltage of the MBRA2H100T3G at 2 A?
The forward voltage is approximately 0.79 V.
- What package style does the MBRA2H100T3G come in?
The MBRA2H100T3G comes in an SMA (DO-214AC, SOD-106) package.
- Is the MBRA2H100T3G Pb-Free and RoHS compliant?
- What is the storage temperature range for the MBRA2H100T3G?
The storage temperature range is −65 to +175°C.
- What is the maximum lead and mounting surface temperature for soldering?
The maximum lead and mounting surface temperature is 260°C for 10 seconds.
- What are the ESD ratings for the MBRA2H100T3G?
The ESD ratings are Machine Model = C and Human Body Model = 3B.
- Does the MBRA2H100T3G meet moisture sensitivity level (MSL) requirements?
- What are some common applications for the MBRA2H100T3G?
