Overview

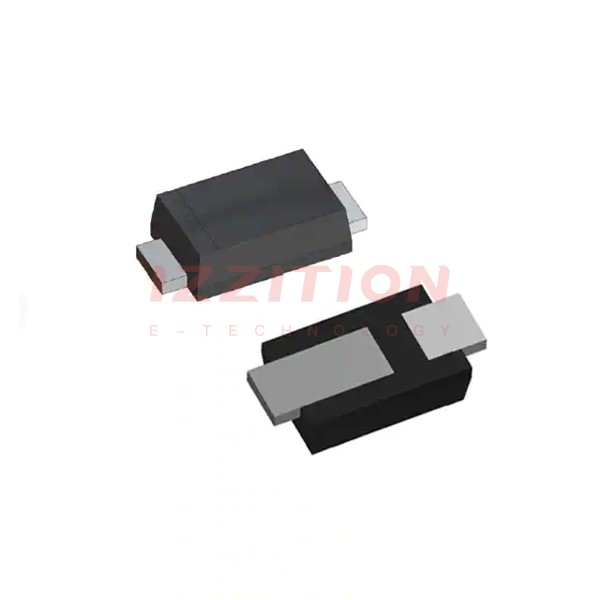

The FSV360FP is a Surface Mount Schottky Barrier Rectifier produced by onsemi. This diode is designed to offer high performance and reliability in various power management applications. It features a low forward voltage drop, high surge capacity, and an ultra-thin profile, making it suitable for space-constrained designs. Although the product is currently discontinued, it remains relevant for existing systems and designs that incorporate this component.
Key Specifications
| Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOD-123HE |
| Maximum Continuous Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 60V |
| Diode Configuration | Single |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 650mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Reverse Recovery Time | 10.62 (Typ.)ns |
| Peak Non-Repetitive Forward Surge Current | 80A |
Key Features
The FSV360FP boasts several key features that make it a robust and efficient component:
- Low Forward Voltage Drop: With a maximum forward voltage drop of 650mV at 3A, it minimizes power losses.
- Larger Cathode Pad: Enhances power dissipation capabilities.
- Ultra Thin Profile: Maximum height of 1.0 mm, ideal for compact designs.
- High Surge Capacity: Can handle peak non-repetitive forward surge currents up to 80A.
- Green Mold Compound: Environmentally friendly and compliant with RoHS standards.
Applications
The FSV360FP is suitable for a variety of applications where high efficiency and reliability are crucial:
- Power Supplies: DC-DC converters, switching power supplies, and other power management systems.
- Automotive Systems: Battery charging, power steering, and other automotive electronics.
- Consumer Electronics: Power adapters, battery chargers, and other consumer electronic devices.
- Industrial Control Systems: Motor control, power conditioning, and other industrial applications.
Q & A
- What is the maximum continuous forward current of the FSV360FP?
3A
- What is the peak reverse repetitive voltage of the FSV360FP?
60V
- What is the maximum forward voltage drop of the FSV360FP at 3A?
650mV
- What is the package type of the FSV360FP?
SOD-123HE
- What is the peak non-repetitive forward surge current of the FSV360FP?
80A
- Is the FSV360FP RoHS compliant?
- What is the typical peak reverse recovery time of the FSV360FP?
10.62ns
- Why is the FSV360FP suitable for compact designs?
It has an ultra-thin profile with a maximum height of 1.0 mm.
- What are some common applications of the FSV360FP?
Power supplies, automotive systems, consumer electronics, and industrial control systems.
- Is the FSV360FP currently in production?
No, the FSV360FP is currently discontinued.
