Overview
The ESD11N5.0ST5G is a transient voltage suppressor (TVS) diode designed by onsemi to provide robust protection against electrostatic discharge (ESD) and transient voltage events. This device is particularly suited for applications where ultra-low capacitance and fast response times are critical, such as in high-frequency designs including USB 2.0 high-speed and antenna line applications.
Key Specifications
| Parameter | Description |
|---|---|

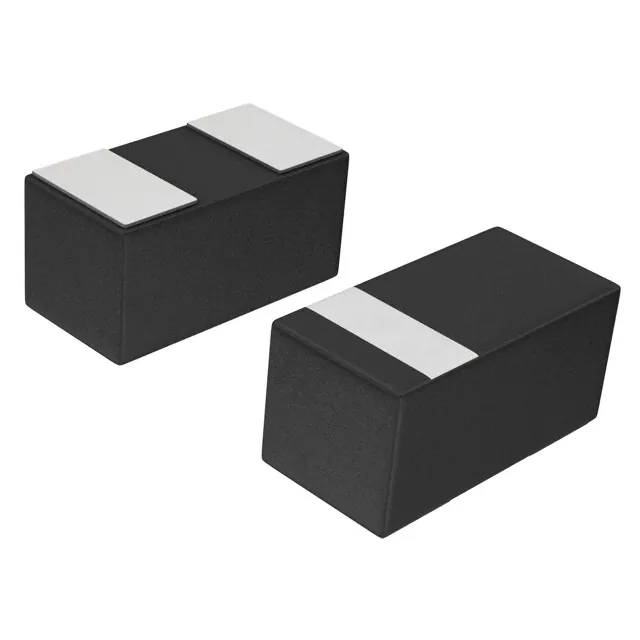

| Package | Micro-Packaged (DSN, 0.60 x 0.30 mm) |
| Clamping Voltage | Typically 5.0 V (at 1 A) |
| Capacitance | Ultra-low, typically around 0.2 pF |
| Leakage Current | Very low, typically less than 1 nA |
| Response Time | Fast response to ESD events |
| Operating Temperature | -55°C to 150°C |
Key Features
- Ultra-low Capacitance: Suitable for high-frequency applications without compromising signal integrity.
- Excellent Clamping Capability: Effectively protects against ESD and transient voltage events.
- Low Leakage Current: Minimizes power consumption and ensures reliable operation.
- Fast Response Time: Quickly responds to ESD events, ensuring the protection of sensitive components.
- Compact Package: Micro-Packaged design (DSN, 0.60 x 0.30 mm) ideal for space-constrained applications.
Applications
- USB 2.0 High-Speed Devices: Protects USB interfaces from ESD and transient voltages.
- Antenna Lines: Ensures the integrity of RF signals by protecting against ESD.
- High-Frequency Designs: Suitable for various high-frequency applications requiring low capacitance and fast response times.
- Portable Electronics: Ideal for protecting sensitive components in portable devices such as smartphones, tablets, and laptops.
Q & A
- What is the primary function of the ESD11N5.0ST5G?
The primary function of the ESD11N5.0ST5G is to protect voltage-sensitive components from electrostatic discharge (ESD) and transient voltage events.
- What is the typical clamping voltage of the ESD11N5.0ST5G?
The typical clamping voltage is 5.0 V at 1 A.
- Why is ultra-low capacitance important in this device?
Ultra-low capacitance is crucial for high-frequency applications to ensure that the device does not compromise signal integrity.
- What is the operating temperature range of the ESD11N5.0ST5G?
The operating temperature range is -55°C to 150°C.
- What types of applications benefit from using the ESD11N5.0ST5G?
Applications such as USB 2.0 high-speed devices, antenna lines, and other high-frequency designs benefit from using the ESD11N5.0ST5G.
- How does the ESD11N5.0ST5G protect against ESD events?
The device protects against ESD events through its excellent clamping capability and fast response time, ensuring that sensitive components are safeguarded.
- What is the package type of the ESD11N5.0ST5G?
The package type is Micro-Packaged (DSN, 0.60 x 0.30 mm).
- Why is low leakage current important in the ESD11N5.0ST5G?
Low leakage current minimizes power consumption and ensures reliable operation of the device.
- Can the ESD11N5.0ST5G be used in high-temperature environments?
- Is the ESD11N5.0ST5G suitable for use in portable electronics?
