Overview
The 74LVC86ADR2G is a high-performance, quad 2-input XOR gate produced by onsemi. This component operates from a supply voltage range of 1.2 to 3.6 V, making it versatile for various low-voltage applications. It features TTL-compatible inputs and outputs, which enhance its compatibility with other logic circuits. The device is designed to minimize current loading on input drivers and offers improved switching noise performance.
Key Specifications
| Parameter | Value | Unit | Condition |
|---|---|---|---|
| DC Supply Voltage (VCC) | −0.5 to +6.5 | V | |
| DC Input Voltage (VI) | −0.5 to +6.5 | V | |
| DC Output Voltage (VO) | −0.5 to VCC + 0.5 | V | Output in HIGH or LOW State |
| Output Sink and Source Current (IO) | ±50 | mA | |
| Storage Temperature Range (TSTG) | −65 to +150 | °C | |
| Lead Temperature (TL) | 260 | °C | 1 mm from Case for 10 Seconds |
| Junction Temperature Under Bias (TJ) | 135 | °C | |
| Thermal Resistance (JA) | 150 | °C/W | |
| ESD Performance - Human Body Model | >2000 | V | |
| ESD Performance - Machine Model | >200 | V |
Key Features
- Designed for 1.2 to 3.6 V VCC operation
- 5.0 V tolerant inputs, allowing interface with 5.0 V TTL logic
- 24 mA output sink and source capability
- Near zero static supply current (10 μA), substantially reducing system power requirements
- High ESD performance: Human Body Model >2000 V, Machine Model >200 V
- Pb-free, halogen-free/BFR-free, and RoHS compliant
Applications
The 74LVC86ADR2G is suitable for a variety of applications, including:
- Low-voltage logic circuits
- Interface between 5 V and 3 V systems
- Battery-backed systems
- High-speed digital systems requiring low power dissipation
- General-purpose logic circuits where TTL compatibility is necessary
Q & A
- What is the operating voltage range of the 74LVC86ADR2G?
The 74LVC86ADR2G operates from a supply voltage range of 1.2 to 3.6 V.
- Is the 74LVC86ADR2G compatible with 5 V TTL logic?
- What is the output current capability of the 74LVC86ADR2G?
The 74LVC86ADR2G has a 24 mA output sink and source capability.
- What are the ESD protection levels of the 74LVC86ADR2G?
The 74LVC86ADR2G has ESD protection levels of >2000 V for the Human Body Model and >200 V for the Machine Model.
- Is the 74LVC86ADR2G RoHS compliant?
- What are the typical applications of the 74LVC86ADR2G?
The 74LVC86ADR2G is suitable for low-voltage logic circuits, interface between 5 V and 3 V systems, battery-backed systems, and high-speed digital systems requiring low power dissipation.
- What is the storage temperature range of the 74LVC86ADR2G?
The storage temperature range of the 74LVC86ADR2G is −65 to +150 °C.
- What is the junction temperature under bias for the 74LVC86ADR2G?
The junction temperature under bias for the 74LVC86ADR2G is 135 °C.
- What are the package options for the 74LVC86ADR2G?

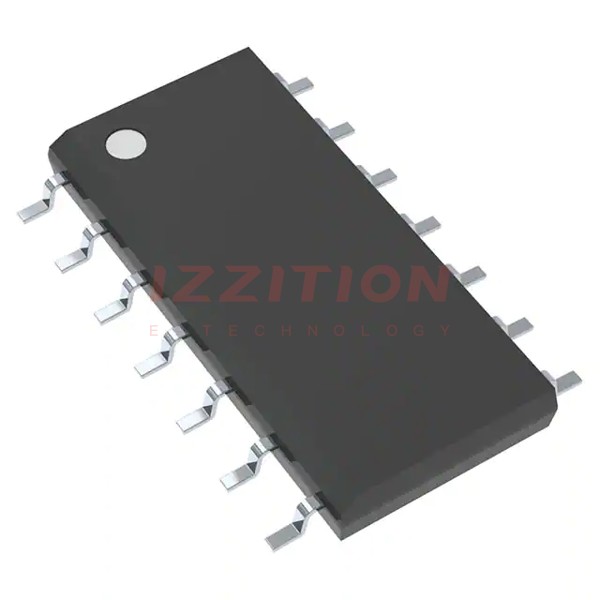

The 74LVC86ADR2G is available in SOIC-14 and TSSOP-14 packages.
- How much static supply current does the 74LVC86ADR2G consume?
The 74LVC86ADR2G consumes near zero static supply current, typically around 10 μA.
