2SA2029M3T5G
  • Share:

onsemi 2SA2029M3T5G

Manufacturer No:
2SA2029M3T5G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:

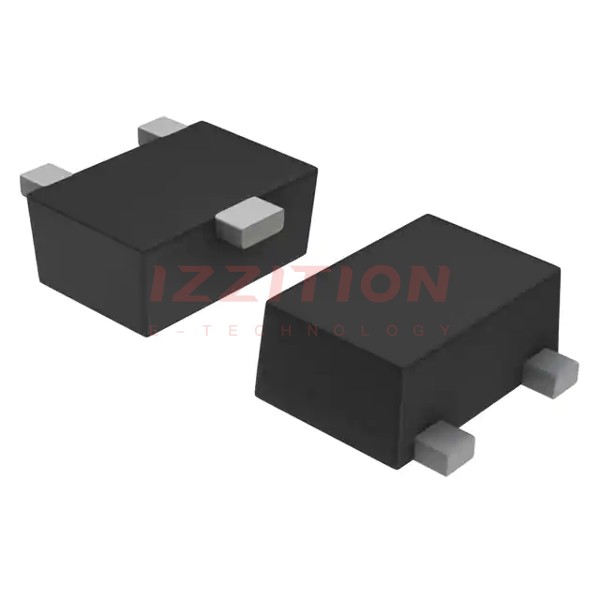

TRANS PNP 50V 0.1A SOT723
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SA2029M3T5G is a PNP bipolar small signal transistor manufactured by onsemi. This transistor is designed for general-purpose amplifier applications and is housed in the compact SOT-723 surface mount package. It is known for its reliability and performance in a variety of electronic circuits.

Key Specifications

CharacteristicValueUnit
Collector-Base Breakdown Voltage (V(BR)CBO)50V
Collector Current (IC)-100mA
Collector-Emitter Voltage (VCE)-50V
Base-Emitter Voltage (VBE)-5V
Transition Frequency (fT)140MHz
Power Dissipation (PD)265mW
Package TypeSOT-723

Key Features

  • PNP bipolar small signal transistor
  • General-purpose amplifier applications
  • Compact SOT-723 surface mount package
  • High transition frequency of 140 MHz
  • Low power dissipation of 265 mW
  • Reliable performance in various electronic circuits

Applications

The 2SA2029M3T5G transistor is suitable for a wide range of applications, including general-purpose amplifiers, audio amplifiers, and other small signal circuits. It is also used in consumer electronics, industrial control systems, and automotive electronics due to its robust performance and compact packaging.

Q & A

  1. What is the collector current rating of the 2SA2029M3T5G transistor?
    The collector current rating is -100 mA.
  2. What is the collector-base breakdown voltage of the 2SA2029M3T5G transistor?
    The collector-base breakdown voltage is 50 V.
  3. What is the transition frequency of the 2SA2029M3T5G transistor?
    The transition frequency is 140 MHz.
  4. What type of package does the 2SA2029M3T5G transistor use?
    The transistor is housed in a SOT-723 surface mount package.
  5. What are the typical applications of the 2SA2029M3T5G transistor?
    The transistor is used in general-purpose amplifiers, audio amplifiers, and other small signal circuits.
  6. What is the power dissipation of the 2SA2029M3T5G transistor?
    The power dissipation is 265 mW.
  7. Who is the manufacturer of the 2SA2029M3T5G transistor?
    The manufacturer is onsemi.
  8. What is the base-emitter voltage rating of the 2SA2029M3T5G transistor?
    The base-emitter voltage rating is -5 V.
  9. Is the 2SA2029M3T5G transistor suitable for high-frequency applications?
    Yes, with a transition frequency of 140 MHz, it is suitable for high-frequency applications.
  10. Where can I find detailed specifications for the 2SA2029M3T5G transistor?
    Detailed specifications can be found on the datasheet available from onsemi's official website or through distributors like Digi-Key and RS Components.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 5mA, 50mA
Current - Collector Cutoff (Max):500pA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:120 @ 1mA, 6V
Power - Max:265 mW
Frequency - Transition:140MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-723
Supplier Device Package:SOT-723
0 Remaining View Similar

In Stock

$0.32
257

Please send RFQ , we will respond immediately.

Same Series
NSV2SA2029M3T5G
NSV2SA2029M3T5G
TRANS PNP 50V 0.1A SOT723
