Overview

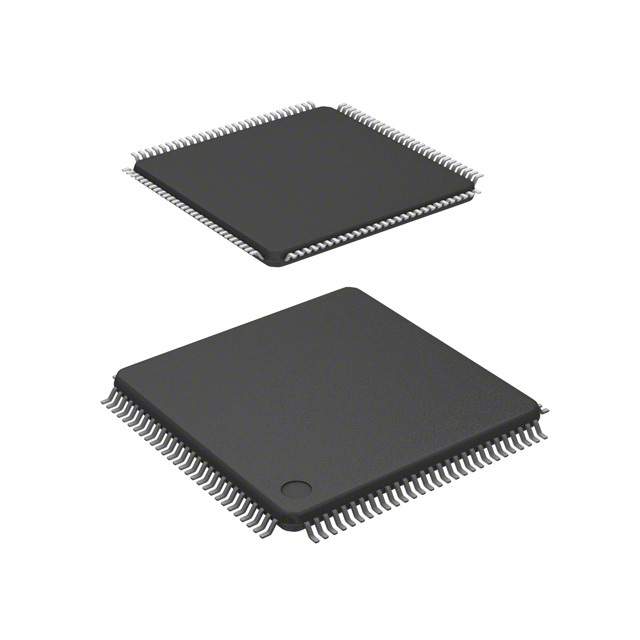

The NXP USA Inc. S912XHY256F0VLM is a 16-bit microcontroller from the HCS12X series, designed for automotive and other demanding applications. This microcontroller features a robust set of peripherals and a high-performance S12 core. It is packaged in a 112-pin Low-Profile Quad Flat Package (LQFP) and operates at a supply voltage of 5V. The device includes 256KB of Flash memory, making it suitable for complex control and monitoring tasks.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | S912XHY256F0VLM |
| Package | 112-LQFP |
| Core Size | 16-Bit |
| Program Memory Type | FLASH |
| Program Memory Size | 256KB |
| Supply Voltage | 5V |
| Operating Temperature Range | -40°C to +105°C |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT |
| Terminal Pitch | 0.65mm |
| RoHS Status | ROHS3 Compliant |
Key Features
- High-Performance S12 Core: The microcontroller is based on the S12 core, providing high performance and efficiency for various applications.
- 256KB Flash Memory: Ample program memory for complex control and monitoring tasks.
- Automotive Qualified: Designed to meet the stringent requirements of automotive applications.
- Multiple Peripherals: Includes LCD, motor control PWM, POR, PWM, and WDT, making it versatile for different use cases.
- Surface Mount Package: 112-LQFP package suitable for surface mount technology, enhancing manufacturing efficiency.
- Wide Operating Temperature Range: Operates from -40°C to +105°C, ensuring reliability in harsh environments.
Applications
- Automotive Systems: Ideal for various automotive applications such as engine control, transmission control, and body electronics.
- Industrial Control: Suitable for industrial control systems, including motor control, process monitoring, and automation.
- Consumer Electronics: Can be used in consumer electronics requiring robust control and monitoring capabilities.
- Medical Devices: Applicable in medical devices that require reliable and high-performance microcontrollers.
Q & A
- What is the part number of this microcontroller?
The part number is S912XHY256F0VLM.
- Who is the manufacturer of this microcontroller?
The manufacturer is NXP USA Inc.
- What is the package type of this microcontroller?
The package type is 112-LQFP.
- What is the core size of this microcontroller?
The core size is 16-Bit.
- How much Flash memory does this microcontroller have?
This microcontroller has 256KB of Flash memory.
- What is the supply voltage for this microcontroller?
The supply voltage is 5V.
- What is the operating temperature range of this microcontroller?
The operating temperature range is -40°C to +105°C.
- Is this microcontroller RoHS compliant?
Yes, it is ROHS3 compliant.
- What peripherals are included in this microcontroller?
The peripherals include LCD, motor control PWM, POR, PWM, and WDT.
- What are some typical applications for this microcontroller?
Typical applications include automotive systems, industrial control, consumer electronics, and medical devices.
