Overview
The S912XHY256F0CLM is a 16-bit microcontroller from NXP USA Inc., part of the HCS12X series. This microcontroller is designed for automotive and industrial applications, particularly for instrument cluster and other control systems. It offers enhanced performance, low cost, and high efficiency, making it suitable for a variety of demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | S912XHY256F0CLM |

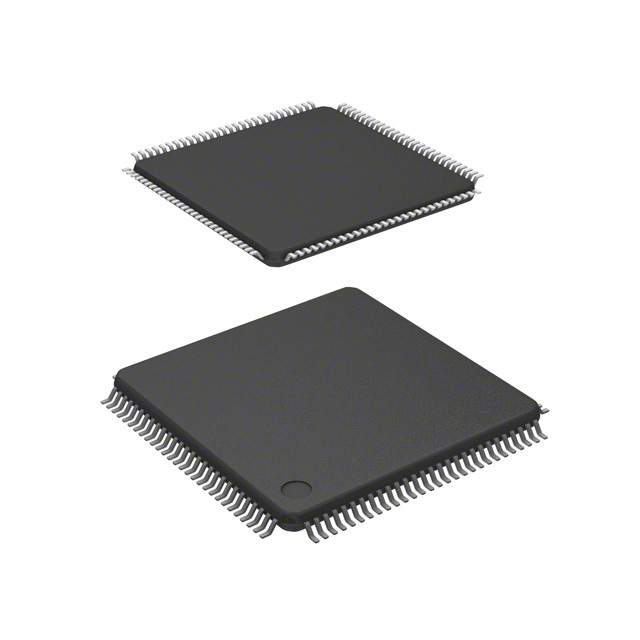

| Package / Case | 112-LQFP |
| Mounting Type | Surface Mount |
| Usage Grade | Automotive |
| Supply Voltage | 5V |
| Number of I/Os | 88 |
| Program Memory Type | FLASH |
| Program Memory Size | 256KB (256K x 8) |
| Operating Temperature | -40°C to 125°C (typical for automotive grade) |
| Moisture Sensitivity Level (MSL) | 3 (168 hours) |
| Factory Lead Time | 12 Weeks |
Key Features
- Enhanced 16-bit Performance: Optimized for automotive and industrial instrument cluster applications.
- CAN and LIN/J2602 Communication: Supports various communication protocols for seamless integration in vehicle networks.
- Stepper Motor Control with Stepper Stall Detection (SSD): Ideal for precise motor control in instrument clusters.
- LCD Driver: Built-in LCD driver for display control.
- PWM Channels: Multiple PWM channels for precise control of devices such as motors, LEDs, and audio signals.
- Low Power Consumption and High Efficiency: Designed to minimize power usage while maintaining high performance.
- Environmental Compliance: Compliant with EU RoHS, ELV, and China RoHS directives, ensuring environmental sustainability.
Applications
- Automotive Instrument Clusters: Ideal for dashboard displays, gauges, and other control systems in vehicles.
- Industrial Control Systems: Suitable for industrial automation, including control panels and monitoring systems.
- Motor Control: Used in applications requiring precise motor control, such as in automotive and industrial environments.
- LED Dimming and Audio Signal Generation: Utilized in lighting and audio systems where precise control is necessary.
Q & A
- What is the primary application of the S912XHY256F0CLM microcontroller?
The primary application is in automotive and industrial instrument cluster systems.
- What is the package type of the S912XHY256F0CLM?
The package type is 112-LQFP (Lead Quad Flat Package).
- What is the supply voltage for the S912XHY256F0CLM?
The supply voltage is 5V.
- How many I/Os does the S912XHY256F0CLM have?
The microcontroller has 88 I/Os.
- What type of memory does the S912XHY256F0CLM use?
The microcontroller uses FLASH memory.
- What is the program memory size of the S912XHY256F0CLM?
The program memory size is 256KB (256K x 8).
- Is the S912XHY256F0CLM compliant with environmental regulations?
Yes, it is compliant with EU RoHS, ELV, and China RoHS directives.
- What is the moisture sensitivity level (MSL) of the S912XHY256F0CLM?
The MSL is 3 (168 hours).
- What are some key features of the S912XHY256F0CLM?
Key features include CAN and LIN/J2602 communication, stepper motor control with SSD, LCD driver, and multiple PWM channels.
- What is the typical operating temperature range for the S912XHY256F0CLM?
The typical operating temperature range is -40°C to 125°C.
