Overview
The NXP Semiconductors S912XHY128F0CLM is a 16-bit microcontroller (MCU) designed for automotive and industrial applications, particularly in instrument cluster systems. This MCU is part of the S12XHY family, known for its enhanced performance, low cost, and high reliability. It is optimized for use in the lower end of automotive instrument cluster applications, offering a balance between performance and cost-effectiveness.
NXP Semiconductors, a leading global semiconductor company, developed this MCU to meet the stringent requirements of automotive and industrial environments. With its robust feature set and compliance with various regulatory standards, the S912XHY128F0CLM is a versatile and reliable choice for a wide range of embedded applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP Semiconductors |
| Part Number | S912XHY128F0CLM |
| Core Processor | HCS12XR |
| Core Size | 16-Bit |
| Program Memory Type | Flash |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8K x 8 |
| EEPROM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

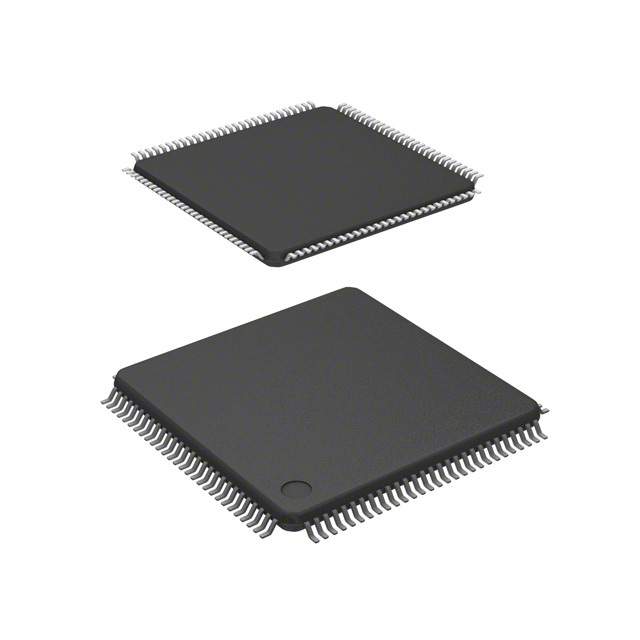

| Package / Case | 112-LQFP (20x20) |
| Number of I/O | 88 |
| Speed | 40MHz |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI |
| Data Converters | A/D 12x10b |
| Oscillator Type | External |
| EU RoHS Status | ROHS3 Compliant |
| MSL Rating | 3 (168 Hours, 30°C/60%RH) |
| REACH Status | REACH Unaffected |
| US ECCN | 3A991A2 |
| HTS US | 8542.31.0001 |
| China RoHS Status | Green Symbol: Green and environmentally friendly product |
Key Features
- Enhanced 16-bit Performance: The S912XHY128F0CLM offers improved performance tailored for automotive and industrial instrument cluster applications.
- CAN and LIN/J2602 Communication: Supports CANbus and LIN/J2602 communication protocols, making it suitable for automotive and industrial networking.
- Stepper Motor Control: Includes stepper motor control with stepper stall detection (SSD), which is crucial for precise motor control in instrument clusters.
- LCD Driver: Features an integrated LCD driver, enabling the control of liquid crystal displays in various applications.
- Peripheral Set: Includes peripherals such as PWM, POR, WDT, and more, providing a comprehensive set of functionalities for embedded systems.
- Environmental Compliance: Compliant with EU RoHS, REACH, and other environmental standards, ensuring it is environmentally friendly and safe for use.
Applications
- Automotive Instrument Clusters: Designed for use in the lower end of automotive instrument cluster applications, including dashboard displays and control systems.
- Industrial Instrumentation: Suitable for industrial instrument cluster applications, such as control panels and monitoring systems.
- Embedded Systems: Can be used in various embedded systems requiring robust performance, low power consumption, and reliable operation.
- Networking and Communication: Ideal for applications requiring CANbus and LIN/J2602 communication, such as in automotive and industrial networks.
Q & A
- Q: What is the S912XHY128F0CLM microcontroller used for?
A: The S912XHY128F0CLM is used in automotive and industrial instrument cluster applications, offering enhanced 16-bit performance and various peripherals. - Q: What is the operating temperature range of the S912XHY128F0CLM?
A: The operating temperature range is -40°C ~ 85°C (TA). - Q: What type of package does the S912XHY128F0CLM come in?
A: It comes in a 112-LQFP (20x20) package. - Q: What is the maximum speed of the S912XHY128F0CLM?
A: The maximum speed is 40MHz. - Q: Does the S912XHY128F0CLM support CANbus communication?
A: Yes, it supports CANbus and LIN/J2602 communication protocols. - Q: What is the supply voltage range for the S912XHY128F0CLM?
A: The supply voltage range is 4.5V ~ 5.5V. - Q: How much program memory does the S912XHY128F0CLM have?
A: It has 128KB (128K x 8) of program memory. - Q: Is the S912XHY128F0CLM RoHS compliant?
A: Yes, it is ROHS3 compliant. - Q: How can I order the S912XHY128F0CLM?
A: You can order the S912XHY128F0CLM by selecting the 'Add to Cart' button on the product listing and proceeding to the checkout page to enter your payment and shipping information. - Q: What is the warranty period for the S912XHY128F0CLM?
A: The warranty period is typically 1 year, covering defects in materials and workmanship under normal use.
