Overview

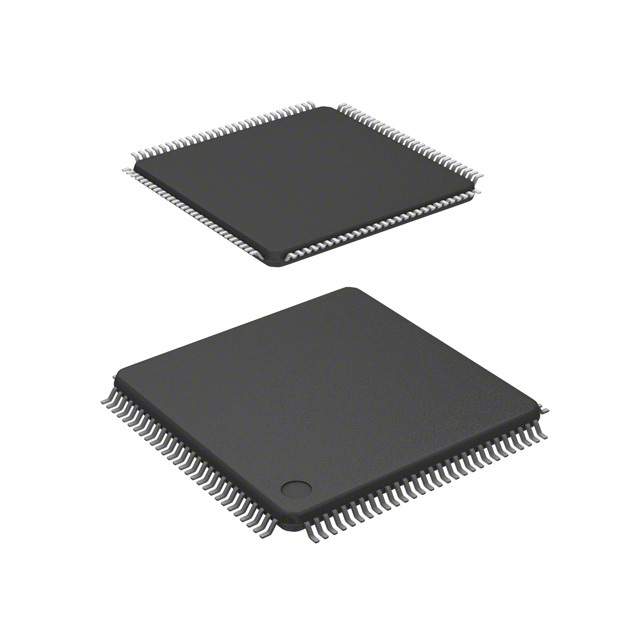

The NXP USA Inc. S912XHY128F0VLM is a 16-bit microcontroller from the HCS12X series. This device is designed for automotive applications and features a robust set of peripherals and memory. The microcontroller operates at a core speed of up to 40 MHz and is housed in a 112-pin Low-Profile Quad Flat Package (LQFP). It is known for its reliability and performance in demanding automotive environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | S912XHY128F0VLM |
| Package / Case | 112-LQFP |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | Up to 40 MHz |
| Program Memory Type | FLASH |
| Program Memory Size | 128 KB (128K x 8) |
| Number of I/Os | 88 |
| Supply Voltage | 5 V |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Usage Level | Automotive grade |
Key Features
- High Performance: The S912XHY128F0VLM operates at a core speed of up to 40 MHz, making it suitable for demanding automotive applications.
- Robust Memory: It features 128 KB of FLASH memory, providing ample storage for code and data.
- Extensive Peripherals: Includes LCD, motor control PWM, POR, PWM, and WDT, among others, to support a wide range of functionalities.
- Reliable Connectivity: Supports CANbus, EBI/EMI, I²C, IrDA, and LINbus for comprehensive communication capabilities.
- Automotive Grade: Designed to meet the stringent requirements of automotive environments, ensuring reliability and durability.
Applications
The S912XHY128F0VLM microcontroller is primarily used in automotive systems due to its robust features and reliability. Some common applications include:
- Engine Control Units: Managing engine performance, emissions, and fuel efficiency.
- Transmission Control: Controlling automatic and manual transmissions for optimal performance.
- Body Control Modules: Managing various body functions such as lighting, wipers, and mirrors.
- Infotainment Systems: Supporting audio, video, and other multimedia functions in vehicles.
- Safety Systems: Implementing safety features like airbag control, ABS, and traction control.
Q & A
- What is the core speed of the S912XHY128F0VLM microcontroller?
The core speed of the S912XHY128F0VLM microcontroller is up to 40 MHz. - What type of package does the S912XHY128F0VLM come in?
The S912XHY128F0VLM comes in a 112-pin Low-Profile Quad Flat Package (LQFP). - How much program memory does the S912XHY128F0VLM have?
The S912XHY128F0VLM has 128 KB (128K x 8) of FLASH program memory. - What are the key peripherals of the S912XHY128F0VLM?
The key peripherals include LCD, motor control PWM, POR, PWM, and WDT. - Is the S912XHY128F0VLM suitable for automotive applications?
Yes, the S912XHY128F0VLM is designed for automotive applications and meets automotive grade standards. - What communication protocols does the S912XHY128F0VLM support?
The S912XHY128F0VLM supports CANbus, EBI/EMI, I²C, IrDA, and LINbus. - What is the supply voltage of the S912XHY128F0VLM?
The supply voltage of the S912XHY128F0VLM is 5 V. - How many I/Os does the S912XHY128F0VLM have?
The S912XHY128F0VLM has 88 I/Os. - What is the moisture sensitivity level (MSL) of the S912XHY128F0VLM?
The moisture sensitivity level (MSL) of the S912XHY128F0VLM is 3 (168 Hours). - Where can I find detailed specifications and datasheets for the S912XHY128F0VLM?
Detailed specifications and datasheets can be found on the official NXP website, as well as on distributor websites like Utmel, Alldatasheet, and Quarktwin.
