Overview
The S912XHY256F0VLM is a 16-bit microcontroller from NXP USA Inc., part of the HCS12X series. This microcontroller is designed for automotive applications and features a robust set of peripherals and memory. It operates at a supply voltage of 4.5 V to 5.5 V, making it suitable for a variety of automotive and industrial environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | S912XHY256F0VLM |

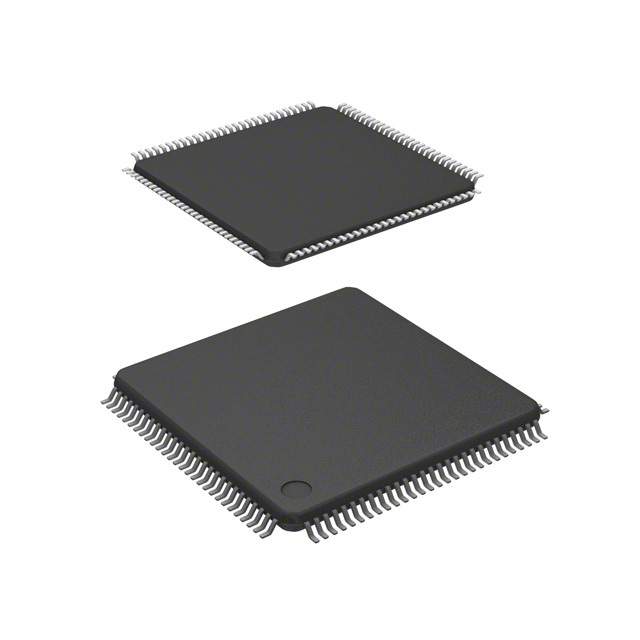

| Package | 112-LQFP |
| Core Size | 16-Bit |
| Supply Voltage | 4.5 V to 5.5 V |
| Program Memory Type | FLASH |
| Program Memory Size | 256 KB (256K x 8) |
| Number of ADC Channels | 12 Channel |
| Number of Timers/Counters | 2 Timer |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Mounting Type | Surface Mount |
| RoHS Status | RoHS Compliant |
Key Features
- 16-bit HCS12X microcontroller with 256 KB of FLASH memory.
- Operates at a supply voltage of 4.5 V to 5.5 V.
- Includes 12-channel ADC, 2 timers/counters, and various peripherals such as LCD, motor control PWM, POR, and WDT.
- Surface mount 112-LQFP package.
- RoHS compliant.
- Designed for automotive applications.
Applications
The S912XHY256F0VLM microcontroller is primarily designed for automotive applications. It can be used in various automotive systems such as engine control units, transmission control units, and other vehicle control systems that require robust and reliable microcontrollers. Additionally, its features make it suitable for industrial control systems and other applications requiring similar capabilities.
Q & A
- What is the part number of this microcontroller?
The part number is S912XHY256F0VLM. - Who is the manufacturer of this microcontroller?
The manufacturer is NXP USA Inc. - What is the package type of this microcontroller?
The package type is 112-LQFP. - What is the operating supply voltage range of this microcontroller?
The operating supply voltage range is 4.5 V to 5.5 V. - How much program memory does this microcontroller have?
This microcontroller has 256 KB (256K x 8) of FLASH memory. - What are the key peripherals included in this microcontroller?
The key peripherals include LCD, motor control PWM, POR, PWM, and WDT. - Is this microcontroller RoHS compliant?
Yes, this microcontroller is RoHS compliant. - What is the moisture sensitivity level (MSL) of this microcontroller?
The MSL is 3 (168 Hours). - For what type of applications is this microcontroller designed?
This microcontroller is primarily designed for automotive applications. - Can this microcontroller be used in industrial applications?
Yes, it can be used in industrial control systems due to its robust features.
