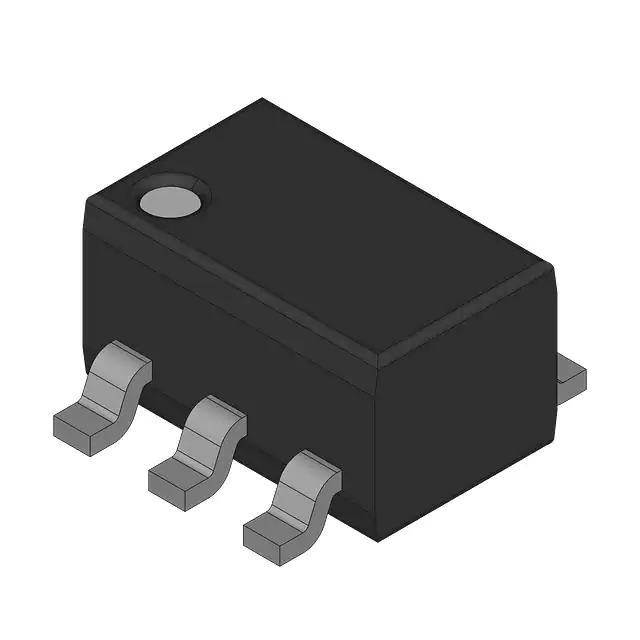

NXP USA Inc. PUMH10/ZL115

Manufacturer No:
PUMH10/ZL115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PUMH10/ZL115 is a resistor-equipped double transistor produced by Nexperia, which was previously part of NXP Semiconductors. This component is designed to simplify circuit design and reduce the overall component count in electronic systems. It features two NPN transistors with built-in bias resistors, making it ideal for a variety of applications where space and component count are critical.

Key Specifications

ParameterValue
PackageSOT363 (6-TSSOP)
Collector-Emitter Voltage (VCEO) Max50 V
Continuous Collector Current100 mA
Mounting StyleSMD/SMT
Power Dissipation300 mW

Key Features

  • 100 mA output current capability
  • Built-in bias resistors, simplifying circuit design and reducing component count
  • Reduces pick and place operations, enhancing manufacturing efficiency
  • Compact SOT363 (6-TSSOP) package, ideal for space-constrained applications

Applications

The PUMH10/ZL115 is suitable for various electronic systems where small signal amplification and switching are required. Common applications include:

  • Automotive electronics
  • Consumer electronics
  • Industrial control systems
  • Audio and video equipment

Q & A

  1. What is the maximum collector-emitter voltage of the PUMH10/ZL115?
    The maximum collector-emitter voltage (VCEO) is 50 V.
  2. What is the continuous collector current of the PUMH10/ZL115?
    The continuous collector current is 100 mA.
  3. What type of package does the PUMH10/ZL115 come in?
    The PUMH10/ZL115 comes in a SOT363 (6-TSSOP) package.
  4. What is the power dissipation of the PUMH10/ZL115?
    The power dissipation is 300 mW.
  5. What are the benefits of the built-in bias resistors in the PUMH10/ZL115?
    The built-in bias resistors simplify circuit design and reduce the overall component count, making it easier to design and manufacture electronic systems.
  6. What are some common applications of the PUMH10/ZL115?
    Common applications include automotive electronics, consumer electronics, industrial control systems, and audio and video equipment.
  7. Who is the manufacturer of the PUMH10/ZL115?
    The PUMH10/ZL115 is manufactured by Nexperia, which was previously part of NXP Semiconductors.
  8. What is the mounting style of the PUMH10/ZL115?
    The mounting style is SMD/SMT.
  9. How does the PUMH10/ZL115 reduce manufacturing complexity?
    The PUMH10/ZL115 reduces pick and place operations, enhancing manufacturing efficiency.
  10. What is the significance of the compact package of the PUMH10/ZL115?
    The compact SOT363 package is ideal for space-constrained applications.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
