Overview

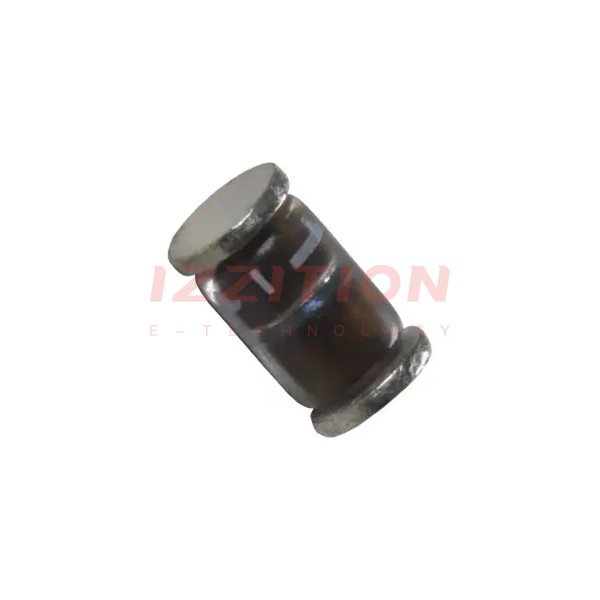

The PRLL5819,115 is a Schottky diode produced by NXP USA Inc. This component is designed for high-efficiency applications, particularly in scenarios requiring low forward voltage drop and high current handling. Although the PRLL5819,115 is currently obsolete and no longer manufactured, it remains relevant for understanding the capabilities and design considerations of similar Schottky diodes.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Reverse Voltage | 40 | V |
| Forward Current | 1 | A |
| Package Type | SOD-87 (MELF) | |
| Operating Temperature | -55 to 150 | °C |
Key Features
- Low forward voltage drop, making it suitable for high-efficiency applications.
- Compact MELF (Metal Electrode Leadless Face) package for easy surface mounting.
- High current handling capability of up to 1 A.
- Designed for use in a wide range of temperatures from -55°C to 150°C.
Applications
The PRLL5819,115 Schottky diode is suitable for various applications including power supplies, DC-DC converters, and other high-frequency switching circuits. It is particularly useful in automotive, industrial, and consumer electronics where low voltage drop and high current handling are critical.
Q & A
- What is the reverse voltage rating of the PRLL5819,115?
The reverse voltage rating of the PRLL5819,115 is 40 V. - What is the forward current rating of the PRLL5819,115?
The forward current rating of the PRLL5819,115 is 1 A. - What package type is the PRLL5819,115 available in?
The PRLL5819,115 is available in the SOD-87 (MELF) package. - Is the PRLL5819,115 still in production?
No, the PRLL5819,115 is obsolete and no longer manufactured. - What are the operating temperature ranges for the PRLL5819,115?
The operating temperature range for the PRLL5819,115 is from -55°C to 150°C. - What are some common applications for the PRLL5819,115?
Common applications include power supplies, DC-DC converters, and other high-frequency switching circuits in automotive, industrial, and consumer electronics. - Why is the PRLL5819,115 suitable for high-efficiency applications?
The PRLL5819,115 is suitable for high-efficiency applications due to its low forward voltage drop. - What is the benefit of the MELF package for the PRLL5819,115?
The MELF package allows for easy surface mounting and is compact, making it ideal for space-constrained designs. - Can the PRLL5819,115 be used in high-frequency switching circuits?
Yes, the PRLL5819,115 can be used in high-frequency switching circuits due to its low forward voltage drop and high current handling capability. - Where can I find more detailed specifications for the PRLL5819,115?
You can find more detailed specifications in the datasheet available from sources like Digi-Key or Win-Source.
