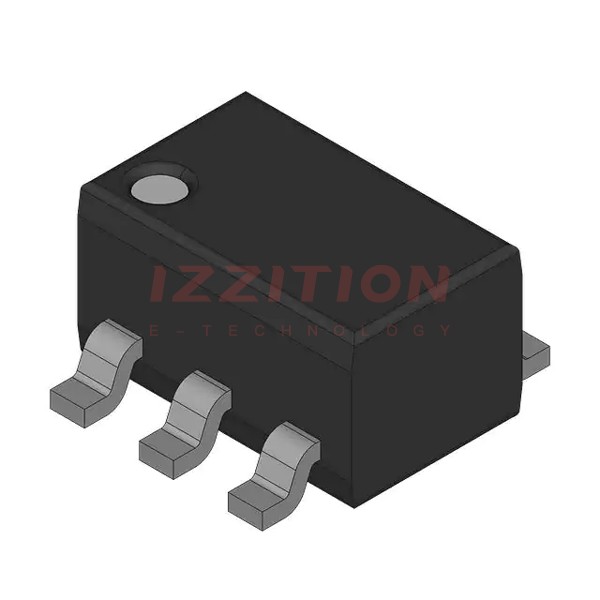

PMBT3946YPN/ZL115
  • Share:

NXP USA Inc. PMBT3946YPN/ZL115

Manufacturer No:
PMBT3946YPN/ZL115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMBT3946YPN/ZL115 is a bipolar transistor array produced by Nexperia USA Inc., a leading manufacturer of semiconductor products. This component is designed for small signal applications and features a combination of one NPN and one PNP transistor in a single package. The PMBT3946YPN/ZL115 is particularly suited for general-purpose amplifier and switching applications due to its robust specifications and compact packaging.

Key Specifications

ParameterValue
Transistor Type1 NPN, 1 PNP
Collector-Emitter Voltage (Vce)40 V
Collector Current (Ic)200 mA
Transition Frequency (ft)300 MHz (NPN), 250 MHz (PNP)
Power Dissipation (Ptot)350 mW
Package Type6-TSSOP (Thin Shrink Small Outline Package)
Operating Temperature Range-55°C to 150°C

Key Features

  • Compact 6-TSSOP package, ideal for surface mount applications.
  • High transition frequencies (ft) of 300 MHz for NPN and 250 MHz for PNP transistors.
  • Low power consumption with a total power dissipation of 350 mW.
  • Pb-free, halogen-free, and RoHS compliant, ensuring environmental sustainability.
  • Suitable for a wide range of operating temperatures from -55°C to 150°C.

Applications

The PMBT3946YPN/ZL115 is versatile and can be used in various applications, including:

  • General-purpose amplifiers and switches.
  • Audio and video circuits.
  • Automotive and industrial control systems.
  • Consumer electronics such as TVs, radios, and other audio equipment.

Q & A

  1. What is the PMBT3946YPN/ZL115? The PMBT3946YPN/ZL115 is a bipolar transistor array featuring one NPN and one PNP transistor in a single 6-TSSOP package.
  2. Who is the manufacturer of the PMBT3946YPN/ZL115? The PMBT3946YPN/ZL115 is manufactured by Nexperia USA Inc.
  3. What are the key specifications of the PMBT3946YPN/ZL115? Key specifications include a collector-emitter voltage of 40 V, collector current of 200 mA, and transition frequencies of 300 MHz for NPN and 250 MHz for PNP transistors.
  4. What is the package type of the PMBT3946YPN/ZL115? The PMBT3946YPN/ZL115 is packaged in a 6-TSSOP (Thin Shrink Small Outline Package).
  5. Is the PMBT3946YPN/ZL115 RoHS compliant? Yes, the PMBT3946YPN/ZL115 is Pb-free, halogen-free, and RoHS compliant.
  6. What are the typical applications of the PMBT3946YPN/ZL115? Typical applications include general-purpose amplifiers, audio and video circuits, automotive and industrial control systems, and consumer electronics.
  7. What is the operating temperature range of the PMBT3946YPN/ZL115? The operating temperature range is from -55°C to 150°C.
  8. How much power can the PMBT3946YPN/ZL115 dissipate? The PMBT3946YPN/ZL115 can dissipate up to 350 mW of power.
  9. Is the PMBT3946YPN/ZL115 suitable for surface mount applications? Yes, the PMBT3946YPN/ZL115 is designed for surface mount applications.
  10. Where can I find detailed specifications for the PMBT3946YPN/ZL115? Detailed specifications can be found in the datasheet available on the Nexperia website or through distributors like Digi-Key.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
586

Please send RFQ , we will respond immediately.
