PHPT60603PY115
  • Share:

NXP USA Inc. PHPT60603PY115

Manufacturer No:
PHPT60603PY115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR, LFPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

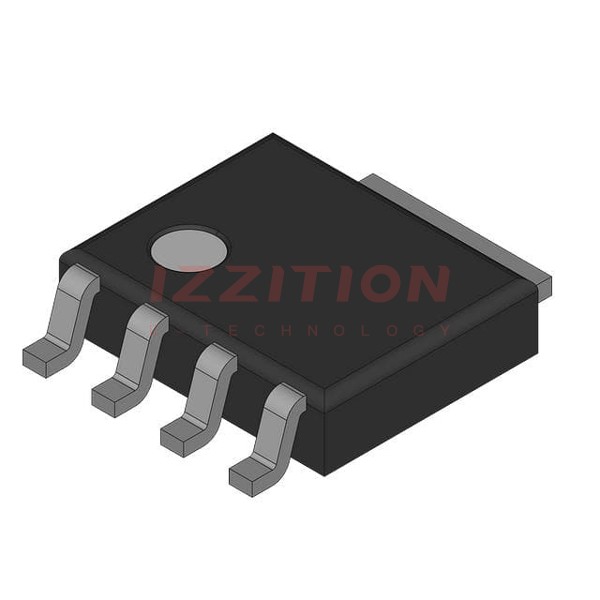

The PHPT60603PY115 is a high-power bipolar transistor manufactured by NXP USA Inc. This component is a PNP transistor designed in the LFPAK56 (SOT669) surface-mounted device (SMD) power plastic package. It is known for its high thermal power dissipation capability and suitability for high-temperature applications up to 175 °C. The transistor is AEC-Q101 qualified, making it reliable for use in automotive and industrial environments.

Key Specifications

ParameterConditionsMinTypMaxUnit
VCEO (Collector-Emitter Voltage)Open base---60V
IC (Collector Current)----3A
ICM (Peak Collector Current)tp ≤ 1 ms; pulsed---8A
RCEsat (Collector-Emitter Saturation Resistance)IC = -3 A; IB = -300 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02 ; Tamb = 25 °C-80120mΩ
Tj (Junction Temperature)---175°C
Tamb (Ambient Temperature)--55-175°C
Ptot (Total Power Dissipation)Tamb ≤ 25 °C--25W

Key Features

  • High thermal power dissipation capability
  • Suitable for high temperature applications up to 175 °C
  • Reduced Printed-Circuit Board (PCB) requirements compared to transistors in DPAK
  • High energy efficiency due to less heat generation
  • AEC-Q101 qualified for reliability in automotive and industrial applications

Applications

  • Power management
  • Load switch
  • Linear mode voltage regulator
  • Backlighting applications

Q & A

  1. What is the PHPT60603PY115 transistor? The PHPT60603PY115 is a PNP high-power bipolar transistor in the LFPAK56 (SOT669) package.
  2. What is the maximum collector current of the PHPT60603PY115? The maximum collector current is 3 A.
  3. What is the maximum junction temperature for the PHPT60603PY115? The maximum junction temperature is 175 °C.
  4. Is the PHPT60603PY115 AEC-Q101 qualified? Yes, it is AEC-Q101 qualified.
  5. What are some common applications of the PHPT60603PY115? Common applications include power management, load switch, linear mode voltage regulator, and backlighting applications.
  6. What is the package type of the PHPT60603PY115? The package type is LFPAK56 (SOT669), a surface-mounted device (SMD) power plastic package.
  7. What is the maximum collector-emitter voltage of the PHPT60603PY115? The maximum collector-emitter voltage is -60 V.
  8. What is the peak collector current of the PHPT60603PY115? The peak collector current is -8 A for tp ≤ 1 ms; pulsed.
  9. How does the PHPT60603PY115 compare to transistors in DPAK packages? It has reduced PCB requirements compared to transistors in DPAK packages.
  10. What is the total power dissipation of the PHPT60603PY115 at ambient temperature ≤ 25 °C? The total power dissipation is 25 W.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
333

Please send RFQ , we will respond immediately.
