NXP USA Inc. PBSS5250X146

Manufacturer No:
PBSS5250X146
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

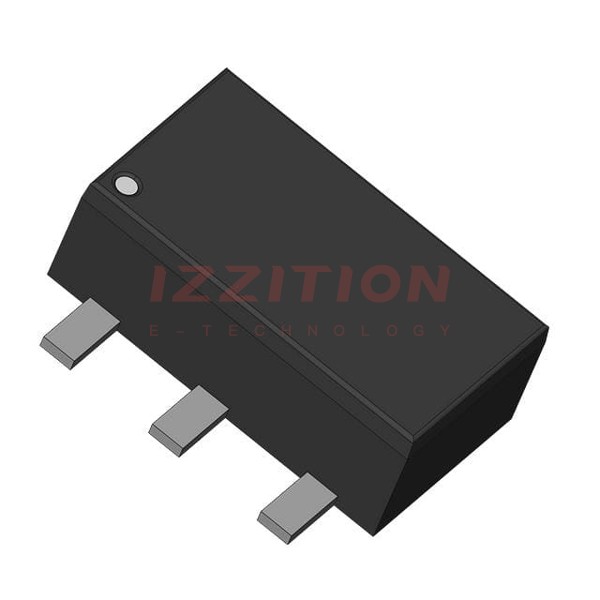

The PBSS5250X146 is a PNP low VCEsat transistor manufactured by NXP USA Inc. This component is part of the PBSS5250X series and is packaged in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package. It is designed to offer high performance and reliability in various electronic applications.

Key Specifications

ParameterValue
Type NumberPBSS5250X
Orderable Part NumberPBSS5250X,146
PackageSOT89 (SC-62)
Collector-Emitter Voltage (Vceo)50 V
Collector Current (Ic)2 A
Saturation Voltage (Vce Sat)0.2 V (typical at Ic = 1 A, Ib = 50 mA)
Base-Emitter Voltage (Vbe)0.7 V (typical at Ic = 1 A, Ib = 50 mA)
Transition Frequency (ft)100 MHz (typical at Vce = 10 V, Ic = 500 mA, f = 10 MHz)

Key Features

  • Low VCEsat: The PBSS5250X146 features a low collector-emitter saturation voltage, typically 0.2 V at Ic = 1 A and Ib = 50 mA, which reduces power losses and improves efficiency.
  • High Current Capability: With a maximum collector current of 2 A, this transistor is suitable for applications requiring high current handling.
  • High Voltage Rating: The component has a collector-emitter voltage rating of 50 V, making it robust for various applications.
  • Compact Package: The SOT89 package is compact and suitable for surface-mount technology, facilitating space-saving designs.

Applications

The PBSS5250X146 is versatile and can be used in a variety of applications, including:

  • Power Switching: Due to its high current and voltage ratings, it is suitable for power switching applications.
  • Amplifier Circuits: Its low VCEsat and high transition frequency make it a good choice for amplifier circuits.
  • Automotive Systems: It can be used in automotive systems where high reliability and performance are required.
  • Industrial Control Systems: The transistor is also suitable for industrial control systems that demand robust and efficient components.

Q & A

  1. What is the package type of the PBSS5250X146? The PBSS5250X146 is packaged in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.
  2. What is the maximum collector current of the PBSS5250X146? The maximum collector current is 2 A.
  3. What is the typical VCEsat of the PBSS5250X146? The typical VCEsat is 0.2 V at Ic = 1 A and Ib = 50 mA.
  4. What is the collector-emitter voltage rating of the PBSS5250X146? The collector-emitter voltage rating is 50 V.
  5. What is the transition frequency of the PBSS5250X146? The transition frequency is typically 100 MHz at Vce = 10 V, Ic = 500 mA, and f = 10 MHz.
  6. Where can I find the datasheet for the PBSS5250X146? You can download the datasheet from the official NXP website or from authorized distributors like Nexperia.
  7. Is the PBSS5250X146 suitable for high-power applications? Yes, due to its high current and voltage ratings, it is suitable for high-power applications.
  8. What are some common applications of the PBSS5250X146? Common applications include power switching, amplifier circuits, automotive systems, and industrial control systems.
  9. Does the PBSS5250X146 have an NPN complement? Yes, the NPN complement of the PBSS5250X146 is the PBSS4250X.
  10. How do I order the PBSS5250X146? You can order the PBSS5250X146 from authorized distributors such as Nexperia or other electronic component suppliers.
