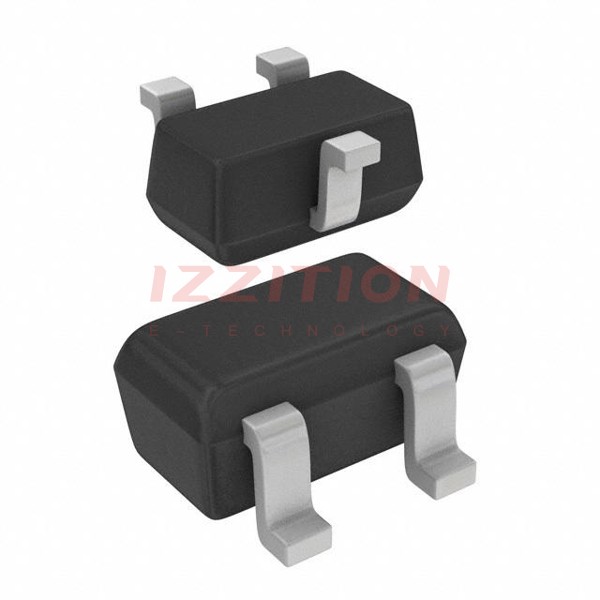

PBSS2515E,115
  • Share:

NXP USA Inc. PBSS2515E,115

Manufacturer No:
PBSS2515E,115
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 15V 0.5A SC75
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBSS2515E,115 is a bipolar junction transistor (BJT) manufactured by NXP USA Inc. This transistor is part of the NPN low VCEsat (BISS) transistor family, known for its enhanced performance and low saturation voltage. Although the PBSS2515E,115 is currently obsolete and no longer manufactured, it remains relevant for legacy systems and applications where compatibility is crucial.

Key Specifications

ParameterValue
Transistor TypeNPN BJT
Collector-Emitter Voltage (VCE)15 V
Collector Current (IC)0.5 A
Package TypeSC75
Saturation Voltage (VCEsat)Low VCEsat

Key Features

  • Low collector-emitter saturation voltage (VCEsat) for efficient operation.
  • High collector current capability of up to 0.5 A.
  • Compact SC75 package suitable for space-constrained applications.
  • Enhanced performance characteristics making it suitable for a variety of electronic circuits.

Applications

The PBSS2515E,115 transistor is suitable for various applications requiring low VCEsat and moderate current handling. These include:

  • General-purpose switching and amplification in electronic circuits.
  • Automotive and industrial control systems.
  • Consumer electronics where low power consumption and high efficiency are required.

Q & A

  1. What is the collector-emitter voltage rating of the PBSS2515E,115 transistor?
    The collector-emitter voltage rating is 15 V.
  2. What is the maximum collector current of the PBSS2515E,115?
    The maximum collector current is 0.5 A.
  3. What package type does the PBSS2515E,115 come in?
    The PBSS2515E,115 comes in an SC75 package.
  4. Is the PBSS2515E,115 still in production?
    No, the PBSS2515E,115 is obsolete and no longer manufactured.
  5. What are some typical applications for the PBSS2515E,115 transistor?
    Typical applications include general-purpose switching, amplification, automotive and industrial control systems, and consumer electronics.
  6. What is the significance of low VCEsat in the PBSS2515E,115 transistor?
    Low VCEsat enhances the efficiency and reduces power consumption in the transistor.
  7. Where can I find detailed specifications for the PBSS2515E,115 transistor?
    Detailed specifications can be found in the datasheet available from NXP Semiconductors or through authorized distributors.
  8. Are there any substitutes available for the PBSS2515E,115 transistor?
    Yes, there are available substitutes for the PBSS2515E,115 transistor, which can be found through authorized distributors.
  9. What is the benefit of using an SC75 package for the PBSS2515E,115 transistor?
    The SC75 package is compact and suitable for space-constrained applications.
  10. How does the PBSS2515E,115 transistor contribute to the overall performance of electronic circuits?
    The PBSS2515E,115 transistor contributes by providing efficient switching and amplification with low power consumption due to its low VCEsat.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):15 V
Vce Saturation (Max) @ Ib, Ic:250mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:150 @ 100mA, 2V
Power - Max:250 mW
Frequency - Transition:420MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-75, SOT-416
Supplier Device Package:SC-75
0 Remaining View Similar

In Stock

-
527

Please send RFQ , we will respond immediately.

Same Series
DD15S10LVLS/AA
DD15S10LVLS/AA
CONN D-SUB HD RCPT 15POS CRIMP
DD62M3200V50/AA
DD62M3200V50/AA
CONN D-SUB HD PLUG 62P VERT SLDR
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S200ES
DD15S200ES
CONN D-SUB HD RCPT 15P SLDR CUP
CBC9W4S10H0S/AA
CBC9W4S10H0S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S20000/AA
DD26S20000/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S00X/AA
DD26S2S00X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200E30/AA
DD26S200E30/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50T0/AA
DD26S2S50T0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0V5X
DD26S2S0V5X
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S600X
DD44S32S600X
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20WE30
DD26S20WE30
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number PBSS2515E,115 PBSS3515E,115
Manufacturer NXP USA Inc. NXP USA Inc.
Product Status Obsolete Obsolete
Transistor Type NPN PNP
Current - Collector (Ic) (Max) 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 15 V 15 V
Vce Saturation (Max) @ Ib, Ic 250mV @ 50mA, 500mA 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 150 @ 100mA, 2V 150 @ 100mA, 2V
Power - Max 250 mW 250 mW
Frequency - Transition 420MHz 280MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case SC-75, SOT-416 SC-75, SOT-416
Supplier Device Package SC-75 SC-75
